SB3 Pack 3

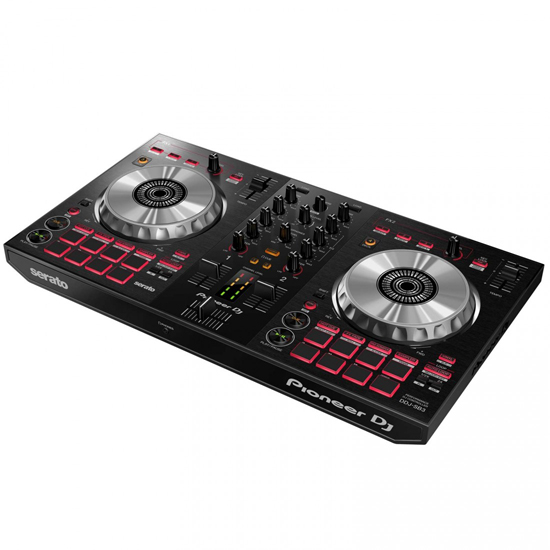

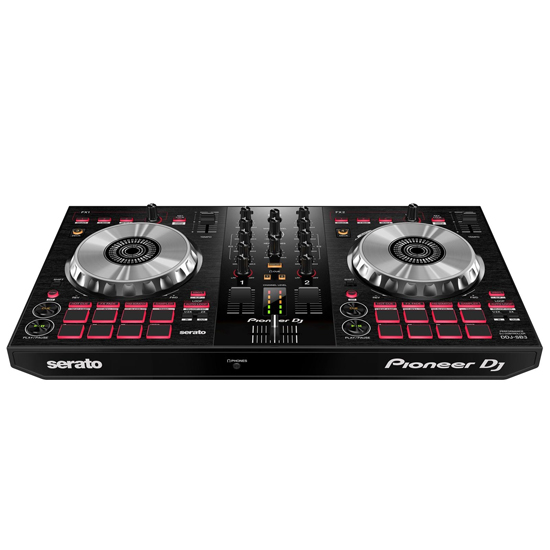

Pioneer DDJ-SB3

START FROM SCRATCH

DURABLE DESIGN

The DDJ-SB3 is constructed from premium materials and audio circuitry. Its robust build ensures durability, while the distinctive styling and aluminium jog wheel deliver a professional feel.

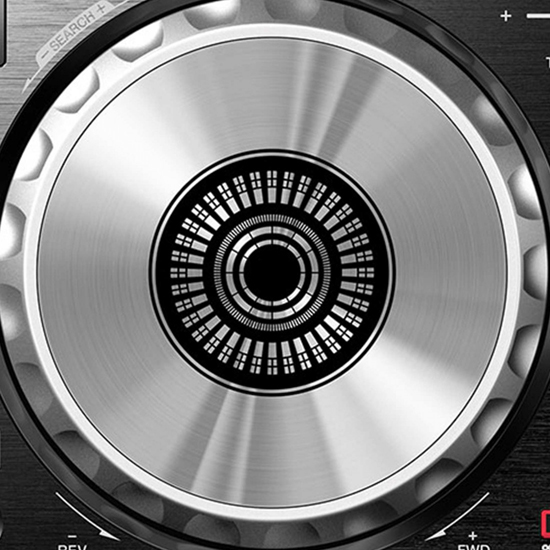

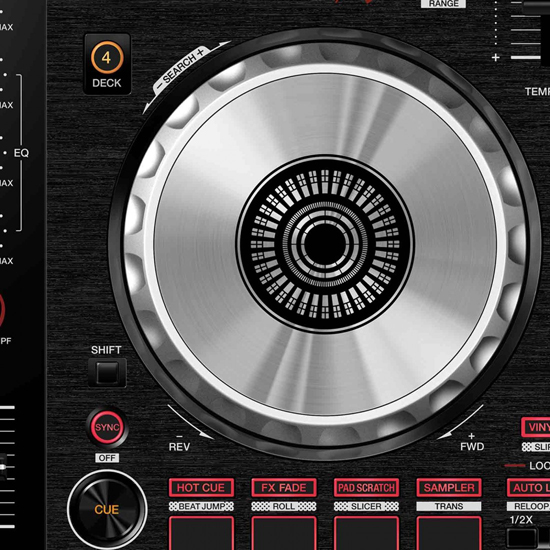

LARGE JOG WHEELS

It may be compact, but the DDJ-SB3 features large, low-latency jog wheels to give you great scratch response and accuracy.

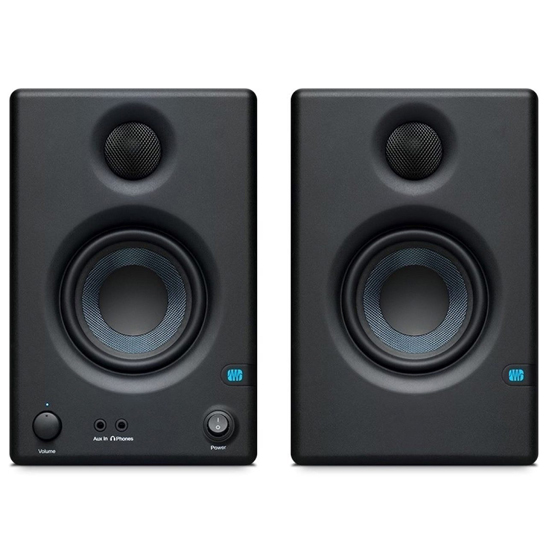

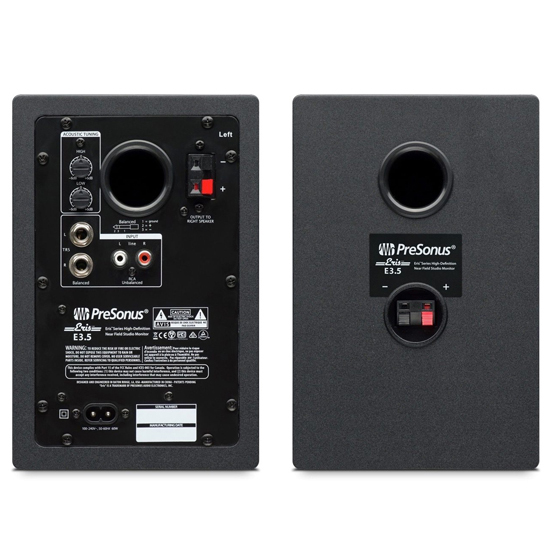

PreSonus Eris E3.5 Active Powered Studio Monitors

PreSonus Eris-series studio monitors are used worldwide by studio engineers who need to hear every detail of their recordings. Ideal for gaming and home video production, the Eris E3.5 delivers studio-quality sound yet is compact enough to fit almost anywhere. You get the flexibility of rear-panel, 1/4-inch TRS and RCA inputs; front-panel 1/8" stereo, unbalanced line inputs for use with mobile audio devices; a convenient front-panel volume control; and an integrated headphone amplifier. Fine-adjust the speaker's response with low- and high-frequency tuning controls. It may be small but the E3.5 is loud, as well as clear, thanks to a 25W/side Class AB power amp.

Features:

• Components and construction:
  • 3.5-inch (89 mm) woven composite low-frequency transducer
  • 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
  • Rear-firing acoustic port for superior bass-frequency reproduction
  • Optimized, resonance-suppressing internal bracing
  • Includes cable to connect speakers
• User controls:
  • High- and low-frequency tuning controls
  • Front-panel Volume control for speakers and headphone amplifier
• Power and safety:
  • 50 watt (25W/side), Class AB biamplification
  • RF interference, output current limiting, over-temperature, transient, and subsonic protection
  • Amplifier "soft start" feature eliminates popping on power-up
  • Internal power supply with IEC connector
  • Power switch with on/off LED
• Inputs and outputs:
  • Balanced 1/4-inch TRS, unbalanced 1/8-inch stereo, and RCA inputs
  • Integrated stereo headphone amplifier with front-panel 1/8-inch output

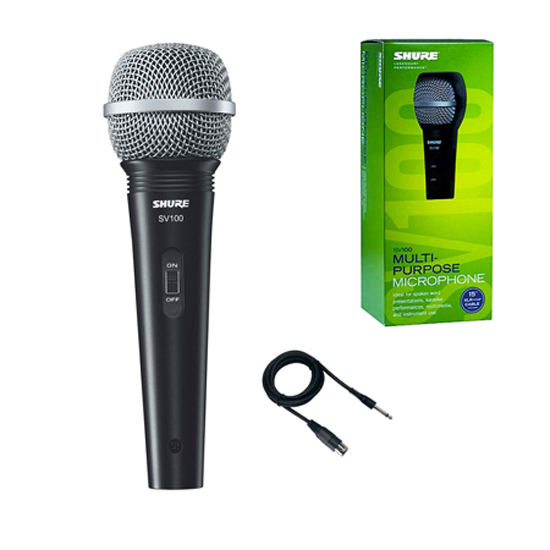

Shure SV100-W Multi-Purpose Microphone

Excellent sound quality. Ideal for spoken word, karaoke, multimedia, and instrument use. The unidirectional cardioid polar pattern of the SV100 helps reduce feedback, while the wide frequency response and high output deliver excellent sound quality. Ideal for spoken-word presentations, karaoke performances, multimedia, and instrument use.

3FT Dual RCA to RCA Cables

High quality cables from a company you can trust

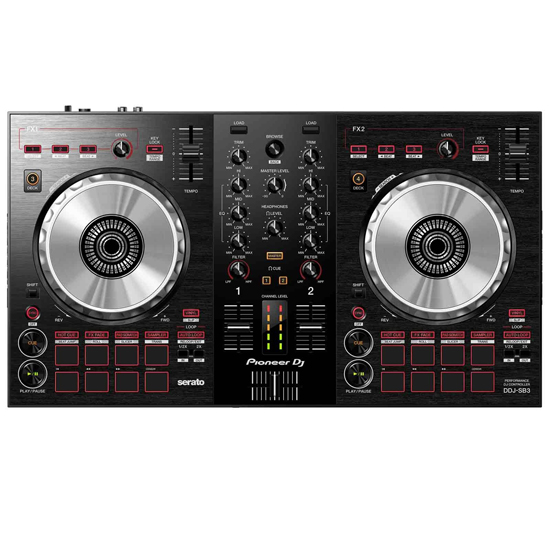

Pioneer DJ DDJ-SB3 Specifications

Main Features

• USB Bus Powered : Yes
• Plug and Play : Yes
• Included Software : Serato DJ Intro(free download)

Software System Requirements

• Windows 8.1/Windows 8/Windows 7 with Service Pack 1
• CPU: Intel 2.0 GHz Core Duo/Intel i3, i5, and i7 Core
• Memory: 1GB
• Memory: 1GB
• CPU: Intel 1.6 GHz Core Duo/Intel i3, i5, and i7 Core
• Memory: 1GB
• Display Resolution
• 1024 x 768 or higher

Specifications

• Width:487 mm
• Height:58.5 mm
• Depth:271.2 mm
• Weight:2.1 kg
• Soundcard:24 bit/44.1 kHz
• Frequency Range:20 - 20,000 Hz
• Signal-to-Noise Ratio:90 dB
• Distortion:< 0.005 % (USB)
• Power Requirements:USB (through computer), rated output 5 V DC

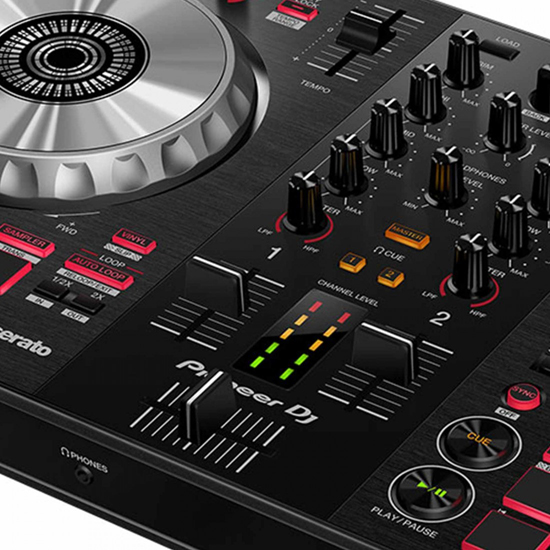

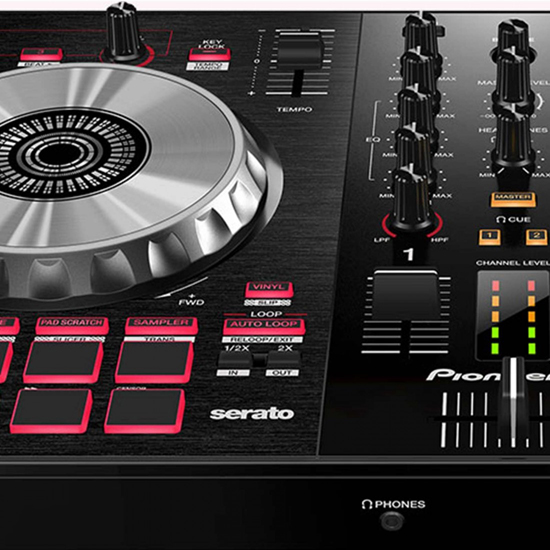

Performance Control

• Channels:2
• Deck Control:4
• Trim knob:Yes
• Jog Wheel:128 mm durable aluminium jog wheel
• Filter:High & Low Pass filter
• Filter fade:Yes
• Trans:Yes
• Effects:FX engine Powered by iZotope: 10 effects

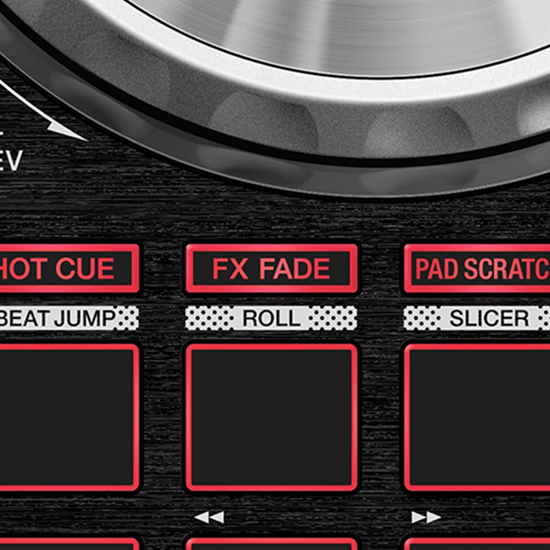

• Hot Cues:4
• Manual Loop:Yes
• Autoloop:Yes
• Slip Mode:Yes
• Talkover Function:Yes

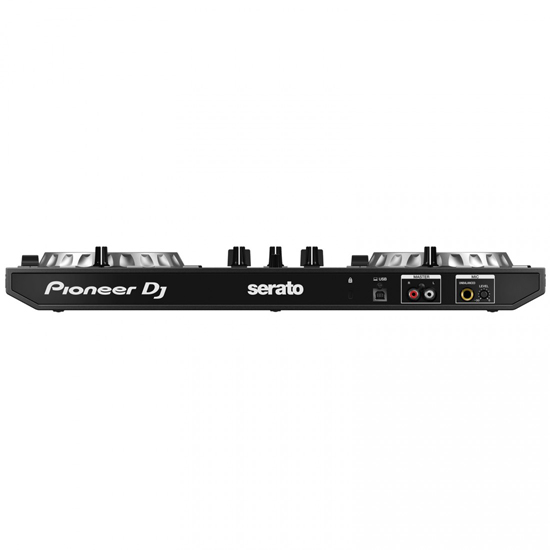

Terminals

• Inputs:1 MIC (1/4 inch Jack)
• Outputs:1 MASTER (RCA),2 HEADPHONE MONITOR (1/4 inch Jack, MiniPin)
• USB:USB B port

Shure SV100-W Specifications

• Frequency Response:50 to 15,000 Hz
• lmpedance:600 Ohm
• Output Level:-52 dBV/Pa* at 1kHz *1 Pa=94 dB SPL
• Output Connection:XLR-¼" (6.3 mm)

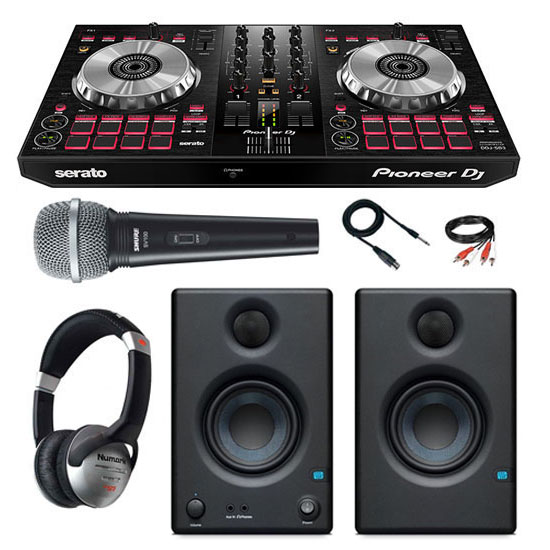

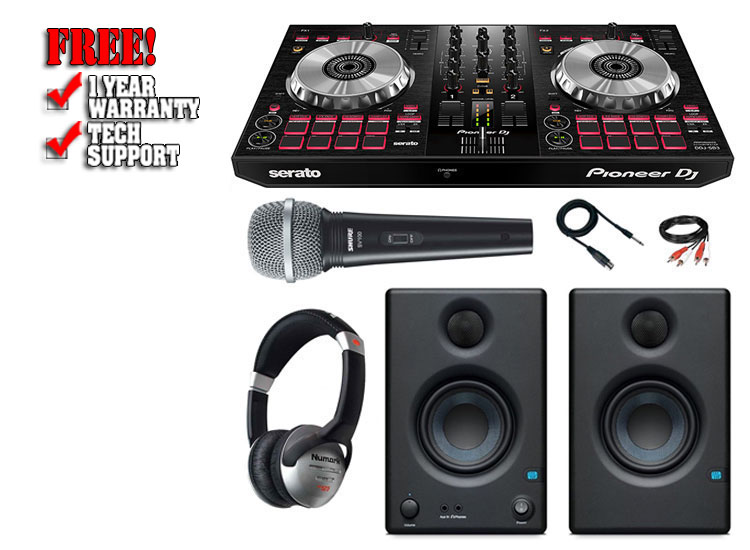

This Package Includes:

• (1) Pioneer DDJ-SB3 Performance DJ Controller
• (2) PreSonus Eris E3.5 Active Powered Studio Monitors

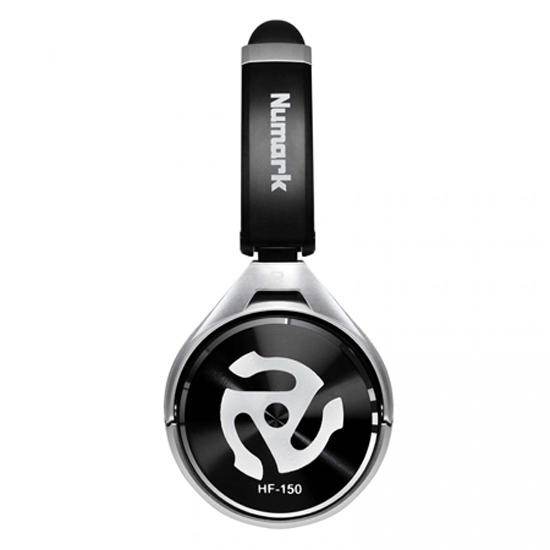

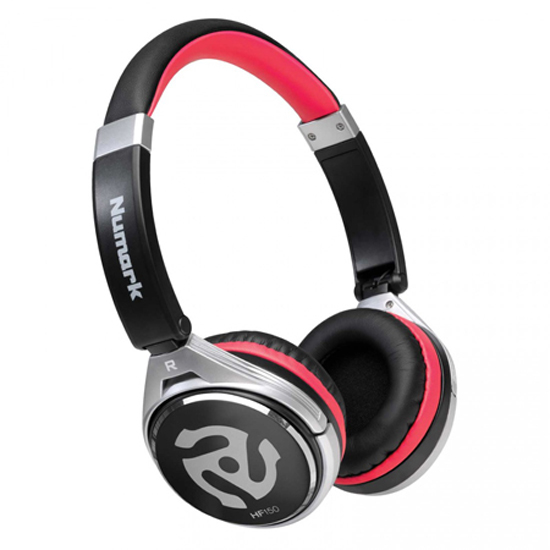

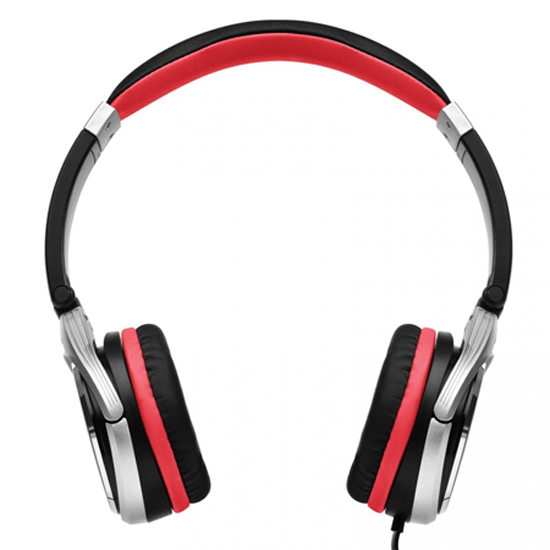

• (1) Professional DJ Headphones
• (1) Shure SV100-W Multi-Purpose Microphone
• (1) 3FT Dual RCA to RCA Cables

The DDJ-SB3 Box Includes:

• (1) Pioneer DJ DDJ-SB3 Portable 2-channel controller for Serato DJ
• (1) USB Cable
• (1) Operating Instructions

PreSonus Eris E3.5 Box Includes:

• Eris E3.5 monitors pair
• Power cable
• Cable to connect your two monitors together
• 1/8" stereo minijack TRS to dual RCA cable
• 1/8" stereo minijack TRS cable

The Shure SV100-W Box Includes:

• (1) SV100-W with On / Off switch
• (1) XLR-¼" cable
• (1) 1/4" adapter
• (1) User Guide
