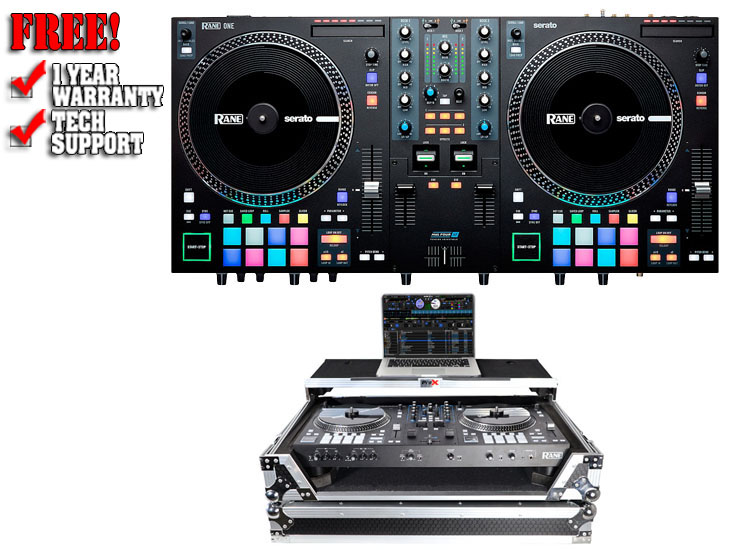

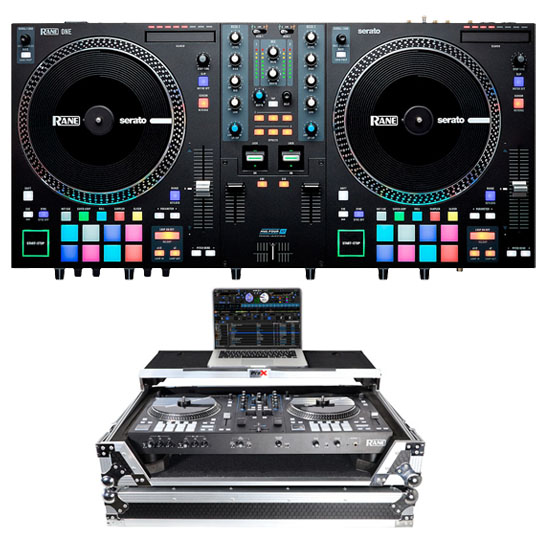

RANE ONE and ProX XS-RANEONE WLT Package

Control and Effects

Control and Effects Craft your sound with RANE ONE's multi-function, independent performance pads, giving you access to Hot Cues, Saved Loops, Roll, Sampler, Slicer and Serato's Scratch Bank feature. With 6 radio-style FX buttons, instantly activate any combination of software FX with a single press, fine-tune with depth and beat parameter controls, then activate with the independent aluminum paddle controls. Finally, take full control of your sound with the 3-band dynamic EQs and high/low pass filters on each deck along with dedicated loop controls.

Plenty of Ways to Connect

RANE's reputation for high-quality sound, and extended pro-connectivity, continues with the ONE. Each deck is switchable between two USB laptop connections as well as a line input that's switchable to phono for traditional turntables. Amplify your music through RANE's pro audio circuitry to the balanced main and booth XLR outputs, and additional RCA main out. There are two dual TRS/XLR microphone inputs alongside an auxiliary input, giving you up to five sources of audio to mix.

Dedicated Loop

Dedicated Loop Featuring a dedicated loop section, the ONE allows DJs to loop a section of their track at the touch of a button with double and half controls instantly accessible. Relooping and manual in/out controls are also available to ensure complete freedom in track and mix control.

Features

• 7.2" motorized platters with quick release acrylic disks
• Instant access software FX with 2 metal FX paddles
• Ultra-light MAG FOUR crossfader
• High/Low-pass filter and 3-band EQ
• Dedicated loop controls
• Independent multi-mode performance pads including Serato
• Scratch banks
• Turntable style start/stop
• XLR main and booth outputs
• 2 line/phono inputs
• 2 TRS/XLR microphone inputs
• 2 USB computer connections
• Portable DJ controller
• Weight: 24 lb.
• Serato DJ Pro included

Specifications

• Converters
• Cirrus Logic, 24-bit PCM, 48kH
• Digital Signal Processing
• 32-bit, Floating Pont, Double precision
• Dynamic Range (A-weighted, unity gain)
• ADC: 113dB
• DAC: 113dB
• CD Input to Analog Output: 110dB
• CD Input to USB Output: 113dB
• USB Input to Analog Output: 113dB

• Microphone 1/2 (Combo XLR/1/4" [6.35mm] TRS, Mic/Line switchable)
• Analog Gain: 25dB
• Maximum Input: 110mV
• Gain Trim: Off to +26dB (unity at center)
• Tone Control: 2-band
• Aux Input (RCA stereo pair)
• Maximum Input: 4Vrms
• Dynamic Range (A-weighted): 114dB
• Gain Trim: Off to +12dB
• Tone Control: 2-band
• CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
• CD: Line
• Maximum Input: 4Vrms
• Gain Trim: Off to +12dB
• Tone Control: 3-band, full-cut to +10dB
• THD+N (20kHz BW @ 1kHz): 0.004%
• Phono: RIAA
• RIAA Curve: +/-0.25dB
• Gain (@ 1kHz): 31.5dB
• Maximum Input (@ 1kHz): 106mV
• Dynamic Range (A-weighted): 102dB

• Main Outputs (XLR)
• Gain Trim: Off to 0dB
• Maximum Output: 8Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Booth Outputs (XLR)
• Gain Trim: Off to 0dB
• Maximum Output: 8Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Master Outputs (RCA stereo pair)
• Maximum Output: 4Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Headphone Outputs (1/4"/6.35 mm & 1/8"/3.5 mm TRS)
• Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)
• Output Power: 0.004%
• Dynamic Range (A-weighted): 108dB

• Pads
• 16 velocity-sensitive multi-color back-lit pads (8 per deck, 8 modes each)
• Faders
• 1 MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
• 2 Standard channel faders with shared Contour and Reverse controls
• Connectors
• 2 XLR outputs (Main)
• 2 XLR outputs (Booth)
• 1 RCA stereo output pair (Master)
• 2 XLR / 1/4" (6.35mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 1–2)
• 1 RCA stereo input pair (Aux)
• 1 1/4" (6.35mm) TRS output (Headphones) (1) 1/8" (3.5mm) TRS output (Headphones)
• 2 USB Type-B ports
• 1 IEC power cable input

• Connection: IEC
• Voltage: 100–240V, 50/60Hz
• Consumption: 50W

• 26.5" x 13.6" x 4.9", 674 x 345 x 124.3 mm

• 23.55 lb. 10.68kg

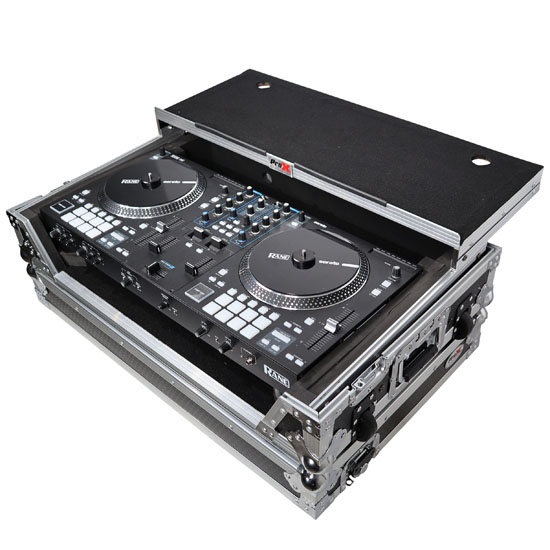

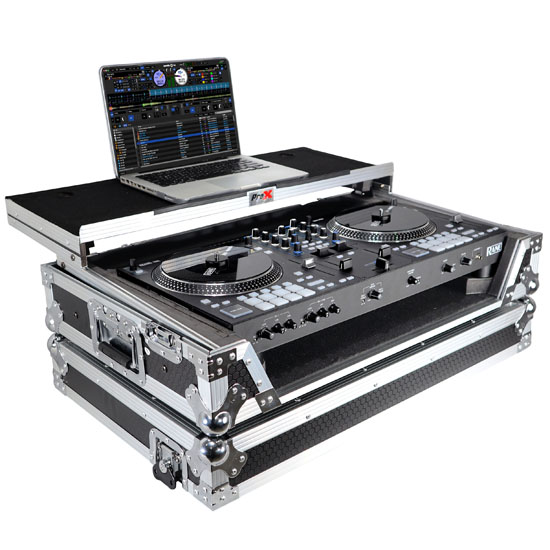

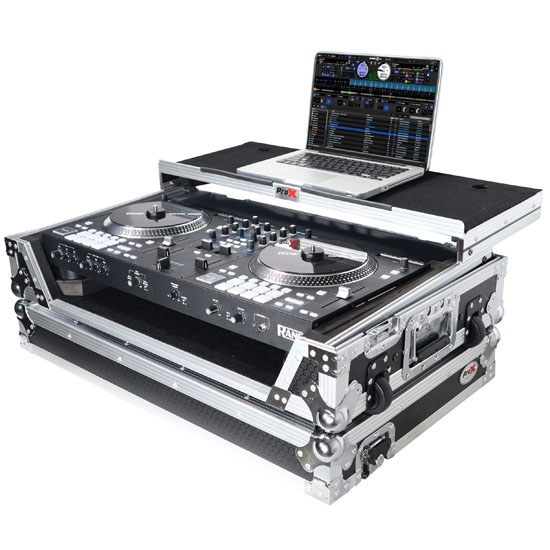

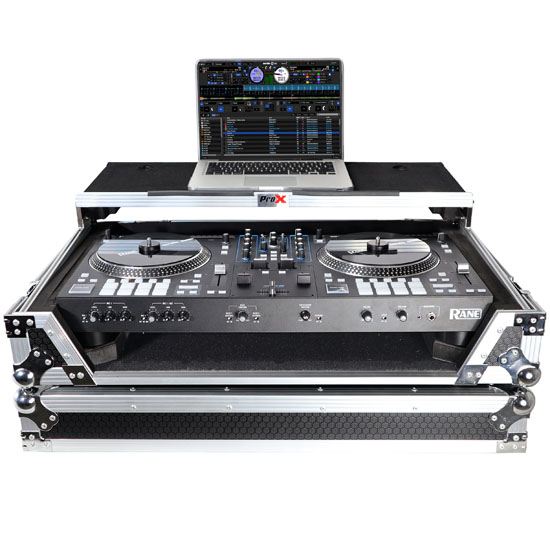

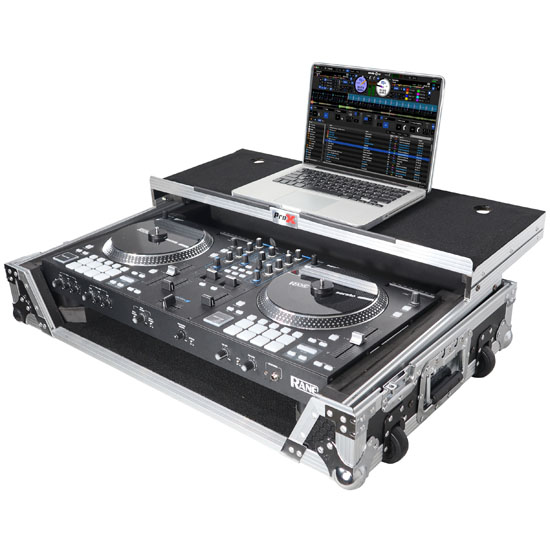

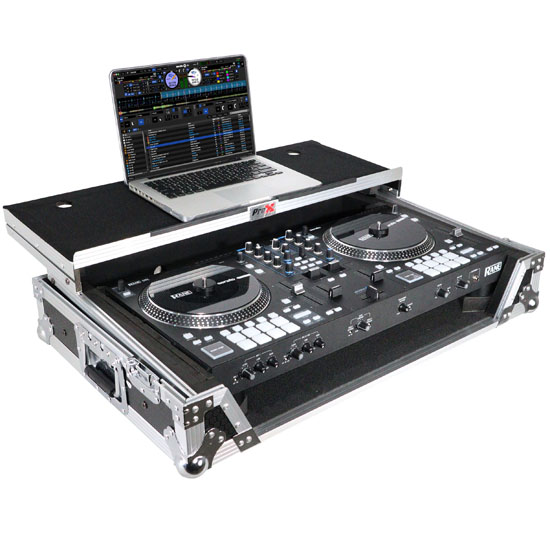

ProX XS-RANEONE WLT Flight Case For RANE ONE DJ Controller with Sliding Laptop Shelf, 1U Rack, and Wheels

Description

The ProX XS-RANEONE WLT Road Case for the RANE™ ONE DJ Controller it's made with the highest quality material and workmanship. If you have a passion for your gear and want to keep it safe at all times, this case will perform at the highest level every time.

The XS-RANEONE WLT fitted for RANE™ ONE DJ Controller is constructed with our rugged signature 3/8" Gig-Ready Series Plywood, reinforced steel ball corners for protection and easy stacking, and recessed steel padded handles and latches to protect them from damage during transport. There is additional space for cables and small accessories in the back and underneath the unit for convenience, and a 1U Rack Space underneath the unit (1U Rail Hardware Included), as well as a removable front panel. The front removable panel allows for easy access to the 1U rack space, front controls, and headphone/mic jacks.

This ProX ATA 300 Style Road/Flight case is manufactured with the Honeycomb Digital™ laminated surface Design. Made with the super-sleek look of Honeycomb Digital™ hexagon grids on all shell surfaces, which gives the cases an almost alien look! Also as opposed to regular laminated plywood cases from other manufacturers, the ProX Honeycomb Digital™ design helps prevent minor to mild scratches. The Honeycomb Digital™ line design was inspired in 2009 by the design of New York City Street Manhole covers which are made to handle rough and tough everyday punishment.

Features:

• Standard Style, silver trim on Black Honeycomb Digital™ exterior design
• ATA-300 Style Gig Ready Flight Road Case
• Signature Series Certified Laminated Gig ready 3/8" plywood
• High-density foam interior support & casing
• Recessed spring action recessed handles
• Industrial Heavy duty and powerful steel ball corners
• 2x Low Profile Durable Tough Rubber Wheels
• Dual anchor rivets
• Featuring A Bottom 1U 19" Rack Mount Space Below Controller (Incl. Rack Rails)
• Rack Rails Can Be Positioned for Front or Rear Mounting
• High-density foam interior support & casing
• Easy locking fit aluminum tongue and groove
• Industrial Recessed butterfly twist-lock latches
• Industrial Grade Rubber Feet
• All Foam padding made from 85% recycled materials
• ProX Limited Lifetime Warranty

To Fit

• RANE ONE Dj Controller

Specifications:

• Dimensions : 32.00"L x 20.00"W x 9.00"H
• Weight: 37.00 lbs
• Shipping Dimensions : 34.00"L x 21.50"D x 11.00"H
• Shipping Weight: 44.00 lbs

This Package Includes:

• (1) RANE DJ ONE Professional Motorized DJ Controller for Serato DJ Pro
• (1) ProX XS-RANEONE WLT Flight Case
