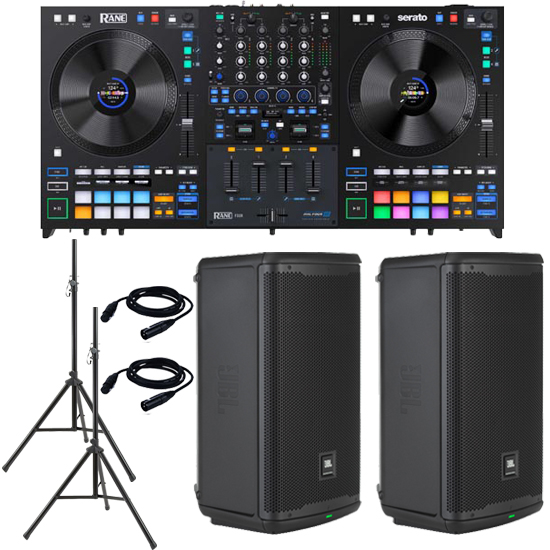

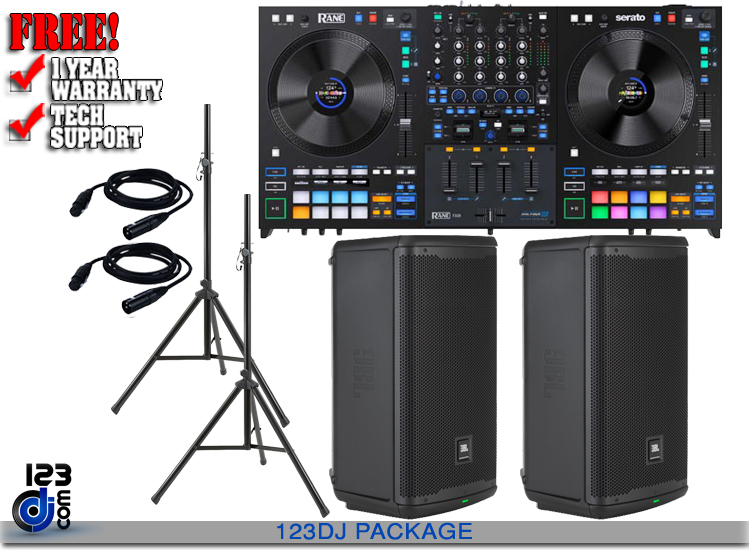

RANE FOUR and (2) JBL EON710 with Stands and Cables Package

Focus On Your Performance, Not Your Laptop

The 8 OLED displays above the 16 Performance Pads offer visual feedback for all pad modes. See Cue, Loop, Sample names, Roll and Loop lengths, beat divisions, Pitch Play tuning, Stem elements and FX

Creative Performance Features

Add flavor to your individual Stems and tracks with the 22 hardware Main FX and 4 knob-controlled Channel FX like Reverb, Scale Down Echo, Recycler, Riser, Filter, Filter Roll, Noise, Flanger and more

Four Channels of Performance Possibility

4-Channel mixer with full EQ control, intuitive FX assignment, enhanced Sampler routing and quick-access jog wheel deck selection buttons and 2 external Line/Phono ins for external turntables or decks

Creative FX and MAG FOUR Crossfader

Access Serato DJ Pro with Pitch 'n Time. Complement your performance using the MAG FOUR tension-adjustable crossfader with contour control to adjust the slope of the crossfader curve

Be In Full Control of Your Mix!

Mix with 8.5" responsive jog wheels and 8 pads with Stems, Hot Cue, Saved Loop, Roll, Sampler, Slicer and Combo Pad mode enabling 2 modes at once - one for the top pads and one for the bottom ones

Serato DJ Pro Included

From the main stage to the underground, Serato DJ Pro is the trusted DJ software app for the DJing elite. Renowned for its reliability and packed with features to empower outstanding performances

Expand your Performance

RANE FOUR features switchable phono/line inputs for mixing with external devices, decks, and turntables. It is also DVS-ready for DJing with Serato Control Vinyl (DVS Expansion Pack required)

Specifications

• Digital Audio
  • Converters: Cirrus Logic, 24-bit PCM, 48 kHz
  • Digital Signal Processing: 32-bit, Floating Point, Double precisio
  • Dynamic Range (A-weighted, unity gain):
    • ADC: 113 dB
    • DAC: 113 dB
    • CD Input to Analog Output: 110 dB
    • CD Input to USB Output: 113 dB
    • USB Input to Analog Output: 113 dB
• Inputs
  • Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
    • Analog Gain: 25 dB
    • Maximum Input: 110 mV
    • Gain Trim: Off to +26 dB (unity at center)
    • Tone Control: 2-band
  • Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
    • Line: Line
    • Maximum Input: 4 Vrms
    • Gain Trim: Off to +12 dB
    • Tone Control: 3-band, full-cut to +10 dB
    • THD+N (20 kHz BW @ 1 kHz: 0.004%
    • Phono: RIAA
    • RIAA Curve: +/-0.25 dB
    • Gain (@ 1 kHz): 31.5 dB
    • Maximum Input (@ 1 kHz): 106 mV
    • Dynamic Range (A-weighted): 102 dB
• Outputs
  • Main Outputs (XLR):
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat - 20-20kHz
  • Main Outputs (RCA stereo pair):
    • Maximum Output: 4 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat - 20-20kHz
  • Booth Outputs (1/4"):
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat - 20-20kHz
  • Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):
    • Maximum Output: 4 Vrms Voltage: (no load)
    • Output Power: 50 mW (50 ohms)
    • Dynamic Range (A-weighted): 108 dB
• Pads
  • (16) on/off multi-color back-lit pads (8 per deck, 9 modes each
• Wheel Displays : (2) 320 x 240 Color LCD's
• Pad & FX Displays : (9) 128 x 32 Monochrome OLED's
• Faders
  • (1) MAG FOUR tension-adjustable crossfader with contour
  • (4) Standard channel faders
• Connections
  • (2) XLR outputs (Main)
  • (2) 1/4" outputs (Booth)
  • (1) RCA stereo output pair (Main)
  • (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1–2)
  • (2) RCA stereo input pairs (Deck 3-4)
  • (1) 1/4" (6.35 mm) TRS output (Headphones)
  • (1) 1/8" (3.5 mm) TRS output (Headphones)
  • (2) USB Type-B ports
  • (1) IEC power cable input
• Power
  • Connection: IEC
  • Voltage: 100–240 V, 50/60 Hz
  • Consumption: 20 W
• Dimensions
  • Dimensions (width x depth x height): 30.8" x 15.9" x 4.2"
    782.32 x 403.8 x 106.6 mm
• Weight (including platters) : 18.25 lbs.
  8.27 kg

Indexed feet molded into enclosures, enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds, every time it's turned on.

The EON710 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON710 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Features:

• Custom-designed 15-inch woofer
• 2414H compression driver
• Re-designed high-frequency horn
• Power: 1,300W peak / 650W RMS
• Frequency response: 45 Hz–20 kHz (-10 dB); 55 Hz–20 kHz (-3 dB)
• Max SPL: 128 dB
• Dispersion: 90° H x 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Backlit color LCD screen provides easy access to functions
• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille
• Two ergonomic handles simplify transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable cabinets allow easy storage
• Dimensions: 27.6 x 17.2 x 13.8 in (702 x 438 x 351 mm) (HxWxD)
• Weight: 37.3 pounds (16.9 kg)
• Shipping dimensions: 29.92 x 21.73 x 18.38 in (760 x 552 x 467 mm) (HxWxD)
• Shipping weight: 49.6 pounds (22.5 kg)

Specifications:

• System Type : 10IN Powered Loudspeaker
• Woofer Model : 710G
• Woofer Size : 10"
• Woofer Magnet : Ferrite
• Woofer Voice Coil : 2"
• Tweeter Model : 2414H Compression Driver
• Tweeter Size : 1"
• Tweeter Magnet : Neodymium
• Transducer Impedence : LF 4ohm rated, HF 8ohm rated
• Max SPL : 125dB @1m/4Pi
• Freq Range -10 : 52Hz - 20kHz
• Freq Range -3 : 65Hz - 20kHz
• Hor Dispersion : 90°
• Vert Dispersion : 60°
• Power Rating : 1300W peak / 650 RMS
• AC power input : 100V-120V or 220V-240V
• Cooling : Passive
• LED indicators : 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance : 50k/100k un-balanced/balanced
• Input Gain : -8to +36db
• Crossover Frequency : 2 kHz
• I/O : 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet : PP+10% Talc
• Grille : 16GA perforated steel with acoustically transparent black cloth backing
• Suspension / Mounting : 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles : 1, cable channel on bottom
• Net Weight : 12kg (26.46 lbs.)
• Gross Weight : 15.2kg (33.51 lbs.)
• Product Dims : HxWxL 587x332x305mm (23.11x13.07x12 in.)
• Shipping Dims : HxWxL 606x439x407mm (23.86x17.28x16.02 in.)

What's Included:

• (1) RANE FOUR
• (2) JBL EON710
• (2) Speaker Stands
• (2) XLR Cables
