QSC K10-2 and QSC KS112 with Tote Package

QSC K10-2 Active Powered 12" Speaker

Features:

The QSC K.2 Series represents the best-inclass loudspeaker for today's demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Speakers Specifications

• Best in class audio performance
• 2000 Watt Class-D amplifier module
• Intrinsic Correction ™ tuning and loudspeaker management
• DMT™ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
• Refined, professional appearance looks great in any application
• Rugged ABS enclosure for long life and lasting durability
• Deployment in either main PA or floor monitor position
• Factory Presets and savable/recallable Scenes for commonly-used application
• Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
• Dual pole cup mounts (standard and 7.5 degree down-tilt)
• M10 fittings for flown applications
• Optional security panel prevents unauthorized tampering of controls
• Complete EASE and CAD information available online
• 6-Year Warranty (with product registration)

The 2000 Watt power module delivers ample burst and continuous power for the loudspeaker's premium drivers. It has been designed with very low-noise fan cooling, enabling the enclosures to be used in settings where background noise must be kept to a minimum. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion.

The user may select from an extensive list of factory preset EQ contours including Live, Dance, Monitor, and many more

Savable and recallable Scenes can store information like user EQ, Delay, and input configuration settings.

A pair of balanced combo XLR/F plus 1/4" TRS connectors with independent gain control are provided. The first is equipped with selectable MIC/LINE (Microphone or Line) level input while the second offers selectable HI-Z/LINE (High Impedance or Line) level input, specifically for musical instruments. Both inputs are connected directly to a pair of XLR/M throughput connectors so that the signals may be "daisy-chained" to another audio device. A 3.5 mm TRS input jack with independent gain control is also provided for connection of sources such as smart phones, computers, and MP3 players.

DMT™ (Directivity Matched Transition) design matches the coverage angle of the woofer at the cross-over frequency with the horn pattern to ensure uniform response across the coverage area. Intrinsic Correction™ techniques are also employed ensuring smooth power response from the loudspeaker. The result is an extremely accurate loudspeaker that behaves well in a wide range of acoustic spaces with little or no equalization.

DMT™ (Directivity Matched Transition) design matches the coverage angle of the woofer at the cross-over frequency with the horn pattern to ensure uniform response across the coverage area. Intrinsic Correction™ techniques are also employed ensuring smooth power response from the loudspeaker. The result is an extremely accurate loudspeaker that behaves well in a wide range of acoustic spaces with little or no equalization.

Each model is housed in a rugged ABS enclosure with a professional yet unobtrusive appearance that is at home in any application. Each model can be utilized in either main PA or floor monitor applications, while ergonomic handles and a heavy-duty steel grille with fabric lining further enhance overall appearance and functionality. The dual pole cups allow a zero or 7.5 degree downward tilt when deployed on a pole. This allows for more even coverage across the listening area and less problems due to rear wall reflections. For suspended applications, integrated M10 fittings with a single pullback are included to accommodate M10 eyebolts. An optional yoke mount accessory is also available for permanent installation to walls and ceilings or for temporary attachment to truss (requires 3rd party hardware). 6-Year Warranty: Robust QSC reliability backed by a global 6-Year Warranty*

• Configuration : Multi-purpose, 2-way powered loudspeaker
• LF Transducer : 10" (254 mm), cone
• HF Transducer : 1.4" (35.6 mm) titanium diaphragm compression driver
• Frequency Response (-6 dB) : 56 Hz - 20 kHz
• Frequency Range (-10 dB) : 50 Hz - 20 kHz
• Nominal Coverage Angle : 90° Axisymetric
• Maximum Rated SPL1 : 130 dB @1 M, peak 124 dB @ 1 M, continuous
• Amplifier : Class D Peak: 1800 W (LF), 225 W (HF)
• Cooling : Low-noise, variable speed fan
• Controls : Power 3 x Level Rotary encoder (push) 2 x selection buttons
• Indicators : Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm) 2 x Power LED (front and rear) 3 x Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED
• Connectors : 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input 1 x 3.5 mm TRS (Stereo Input) 2 x XLR/M (Loop-thru Output) 1 x XLR/M (Mix Output) 1 x locking IEC power connector
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption 1/8th Power² : 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
• Enclosure Details
• Enclosure Enclosure : Impact Resistant ABS
• Attachment Points : 2 x M10 threaded inserts plus Pull-Back
• Color : Black (RAL 9011)
• Grille : 18 Gauge powered coated steel, internal cloth lining
• Dimensions (HxWxD): 20.4 x 12.6 x 11.8 in 519 x 320 x 300 mm
• Net Weight : 14.5 kg (32 lbs)
• Shipping Weight : 17.6 kg (38.8 lbs)
• Regulatory : CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Optional Accessories : K10 Tote, K10 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cove K10.2 Yoke

QSC KS112

Description

The QSC KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The QSC KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Features

• High Output in an ultra-compact form factor
• 2000 Watt class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design
• Variable crossover and savable/recallable scenes for commonly-used applications
• Intrinsic Correction^™ tuning and loudspeaker management
• Refined, professional appearance looks great in any application
• Rugged painted wood enclosure for long life and lasting durability
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
• Optional KS-LOC security cover prevents unauthorized tampering of controls
• Complete EASE & CAD information available online
• 6-Year Warranty*

Specifications

• Configuration : 6th-Order Bandpass Subwoofer
• LF Transducer : 12-inch (305 mm), Cone
• Frequency Response (-6 dB) : 41 Hz - 108 Hz
• Frequency Range (-10 dB) : 38 Hz - 121 Hz
• Maximum Rated SPL¹ : 128 dB @ 1 m (peak)
• Amplifier : Class D
  2000W (peak)
• Cooling : Low-noise, variable speed fan
• Controls : Power On/Off
  Gain Control
  Rotary encoder
  2 x selection buttons
• Indicators : 2 x Power LED (front and rear)
  Input Signal LED
  Limiter Active LED
• Connectors : 2 x locking XLR/F 1/4" combo
  2 x XLR/M (Loop-thru Output)
  1 x locking IEC power connector
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption : 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
• Enclosure Details
• Enclosure : 15 mm Birch Plywood
• Color : Black (RAL 9011)
• Grille : Internal woofer cover
• Dimensions (HWD) inches : 24.5 x 15.5 x 24.25
• Dimensions (HWD) mm : 622 x 394 x 616
• Net Weight : 28.4 kg (62.6 lbs)
• Shipping Weight 34.5 kg (76 lbs)
• Regulatory : CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Included Accessories : 4 x Low-Noise, Heavy Duty Casters
• Optional Accessories : QSC KS112 CVR Transport Cover, KS-LOC Lock-Out Cover
  SP-16X Extension Pole, SP-36 Extension Pole

• ¹ Peak SPL is measured on-axis at 1m, pink noise crest factor 10dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with common industry practice.

Downloads

• Specifications Sheet

QSC K10 Tote

This soft, padded tote is designed to be used for transporting your K10 speaker safely and easy. It is constructed of a weather-resistant, heavy-duty nylon/Cordura material, and has a side-flap access to the K10's aluminum top handle for carrying vertically, For K10 speaker, Padded, Nylon/Cordura construction, Side-flap access to speaker's top handle for carrying option, Side accessory pouch.

QSC KS112-CVR Weather Resistant Soft Padded Nylon / Cordura Cover

The KS112 cover protects your KS112 subwoofer from the elements and dings from transporting it. The KS112-CVR is a soft, padded cover made with weather resistant, heavy-duty Nylon/Cordura® material for your KS112 Sub with grille guard.

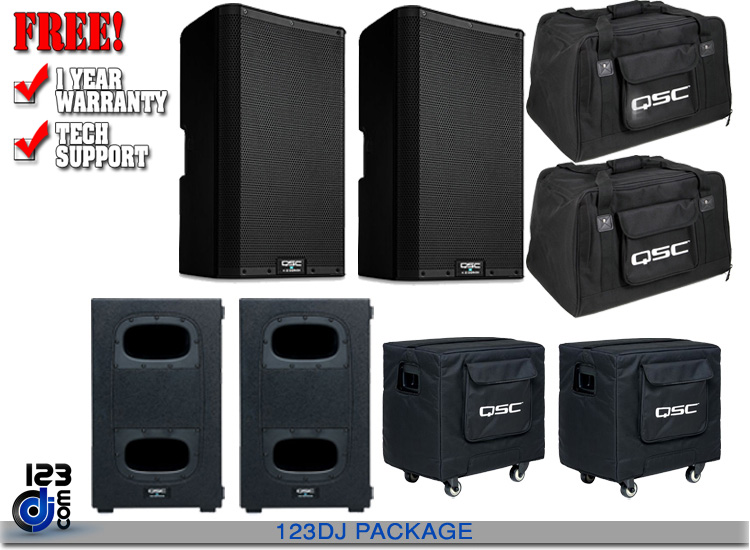

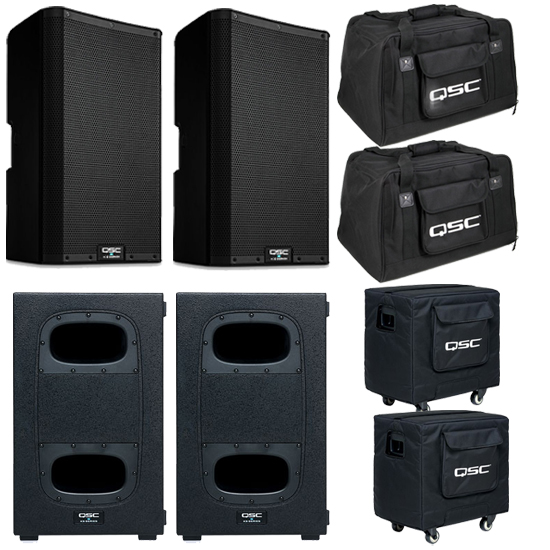

This Package Includes:

• (2) QSC K10.2
• (2) QSC KS112
• (2) QSC K10 Tote
• (2) QSC KS112-CVR
