KEY FEATURES

Tone-arm-free DVS control eliminates skipping in digital playback

No matter how hard you scratch, you'll never experience needle skipping when you use the PLX-CRSS12 in Digital Vinyl mode, thanks to the tone-arm-free system. The new MAGVEL CLAMP holds a record firmly in place when you touch it, enabling it to directly control the digital music file, giving you the true feeling of vinyl with no need to use the tone arm. When playing analog records, the experience will be just like using the popular PLX-1000 deck.

Feeling adjustment to suit your style

You can quickly adjust the record's "weight" with the dial on top of the MAGVEL CLAMP. This means you can effortlessly continue your performance without the hassle of changing slip mats or slip sheets.

Customizable torque level

It's easy to change the turntable rotation torque level in the utility settings to suit your preference. You can choose from "High" for quick startup when you press PLAY, "Low" for the traditional torque speed that many DJs are familiar with, and "Mid" for a balance between the two.

Adjustable stopping speed

Use the switch on the front of the deck to adjust the time it takes for the turntable to stop when you press STOP. The "Min" is sharp. The "Mid" uses a traditional stopping speed that's familiar to DJs. And the "Max" creates the longest stopping speed for a gradual and dramatic finish to a track or performance.

Performance Pads for accurate and rapid control

The PLX-CRSS12 inherits classic turntable layout elements, but a new addition is the 4 built-in MIDI-mappable Performance Pads which put your favorite features at your fingertips. They're right where you need them - just below the platter - so you can fire off Hot Cues and samples quicker than ever, which comes in handy even more if you're performing on a mixer that has no pads. There's native support for various pad modes (see below), and a dedicated button enables you to switch control from pads 1-4 to 5-8. The pads are MIDI mappable too, so you can assign them to other features.

OLED display for quick confirmation of track information

The built-in OLED display also helps you focus on the deck. You can keep an eye on the tempo range and key when Step Pitching and, when you connect the PLX-CRSS12 via USB to your PC/Mac running DJ software, you can reference BPM, key, deck number information. The display also gives you quick access to the utility settings - all of which reduces the need to break concentration and look at your laptop or mixer during a performance.

High-quality sound reproduction of analog records, evolved from the PLX-1000

Let your audience enjoy your music the way it was intended to be heard. The PLX-CRSS12 has been carefully built to improve on the sound quality of the PLX-1000 professional DJ turntable, which is highly acclaimed for its accurate sound reproduction.

Switching power supply

A switching power supply is used to eliminate transformer power supply vibration and flux leakage, and unwanted noise is suppressed, resulting in high-resolution sound quality.

High-mass die-cast zinc

As with the PLX-1000, the upper part of the chassis is made of high-mass die-cast zinc and the lower part is made of 8 mm thick resin to optimize the chassis structure and vibration-damping materials.

Machined gold-plated RCA terminals

The RCA terminals are made of machined gold-plated parts like those on the PLX-1000, and the phono signal is directly transmitted through a stable connection with the plug to reproduce the sound of analog records with high-quality audio.

Robust and elegant design in matte black color

The PLX-CRSS12 has a matte black color scheme, with special coatings applied to the tone arm and other metal parts, plus carefully crafted details that give it a robust and elegant appearance.

Serato DJ Pro and rekordbox compatibility

The PLX-CRSS12 is compatible with Serato DJ Pro and rekordbox. By connecting this unit to a PC/Mac with DJ software installed, and to a mixer that supports the DVS function of the respective DJ software, you can start playing in Digital Vinyl mode and use the Performance Pads.

OTHER FEATURES

Replaceable MAGVEL CLAMP

Additional clamps are available to buy if you want to take your own set on the road, or if you need to replace a clamp that's been lost. You can store the MAGVEL CLAMP neatly in a dedicated area on top of the deck.

Firmware Update Manager

You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

AlphaTheta Care

Our extended product warranty service ensures longer and more reliable use of your products.

Specifications

Main Features

Accessories

• Platter
• Screws for platter
• Screwdriver
• MAGVEL CLAMP
• Slip mat
• Slip sheet
• Dust cover
• Balance weight
• Sub weight
• Headshell
• Shell weight
• Power cord
• Audio cable (with ground wire)
• USB cable
• Quick Start Guide
• Warranty (for some regions)*
• Precautions for Use
• *Only products in Europe. Products in North America and Japan include warranty information in the Precautions for Use.

Specifications

• Width: 17.83 in
• Height: 6.26 in
• Depth: 13.9 in
• Weight: 26.9 lb

Turntables

• Drive Method: Servo-type direct drive
• Platter: Aluminium, die-casting diameter: 332 mm
• Motor: 3-phase, brushless DC motor
• Braking System: Electronic brake
• Rotation Speed: 33¾ rpm, 45 rpm
• Rotation Adjustment Range: ±8, ±16, ±50 %
• Wow and Flutter: 0.15% or less WRMS (JIS WTD)
• Signal-to-Noise Ratio: 65 dB (DIN-B)
• Starting Torque: High: 0.45 Nm (4.5 kgfcm) or more
  Mid: 0.32 Nm (3.2 kgf cm)
  Low: 0.2 Nm (2.0 kgf cm)
• Start Time: 0.3 sec (at 33¾ rpm)
• Brake Time: Max: 3.5 seconds
  Mid: 1.0 seconds
  Min: 0.5 seconds or less

Tone Arm

• Arm Type: Universal type S-shape tone arm
  Gimbal-supported type bearing structure
  Static balance type
• Overhang: 0.59 in
• Effective Length: 9.06 in
• Tracking Error: Within 3°
• Height Adjustment Range: 0.24 in
• Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
• Cartridge Weight Single: 2.5-12 g (includes mounting materials)

Terminals

• USB: 1 USB C port
• Outputs: 1 PHONO(RCA)

Pioneer DJ DJM-A9

4-channel professional DJ mixer (black)

A New Horizon

The 4-channel DJM-A9 raises the bar for club standard mixers - boasting huge upgrades compared to its predecessor, the DJM-900NXS2 - with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level. The DJM-A9 has also been improved as a musical instrument for more emotional and dynamic performances, while retaining the functions and layout that have become club standards.

KEY FEATURES

Stunning clear sound quality

The next-generation club sound of the DJM-A9 comes from extensive development and fine tuning of existing technology from previous units, plus brand-new components. The channel input section is equipped with an ESS Technology 32-bit high-quality A/D converter for crystal-clear, high-resolution sound, while the master and booth output sections employ 32-bit high-quality D/A converters from the same brand so you can experience sound from the booth monitors that's the same as the crowd hears on the dancefloor. Even the sound quality of the microphone input and headphone outputs has been improved with carefully selected new parts and design optimization.

Evolved playability

Increased spacing around the EQ knobs gives you the room to twist your fingers and high-grade, bright LEDs in the channel section make it easier than ever to get a visual grasp on sound levels. You can perform more dynamically than ever thanks to the frequency response of the isolators, which have been optimized to make the most of the latest music production traits. And, with higher quality, slicker channel faders than the DJM-900NXS2, plus the third-generation MAGVEL FADER crossfader, you can enjoy silk-smooth mixing and rapid, stable scratching.

Sound Color FX with world's first Center Lock knob

Turn on the brand-new Center Lock feature and, when you're using the popular Sound Color FX, each knob will stop turning when you reach the center position. This means you can twist the knob as quickly as you like, taking the effect right up to the maximum of the hi, or down to the minimum of the low parameter, without the risk of going too far and switching to the opposite parameter. When you turn Center Lock off, the Sound Color FX knobs work in the same way as those on the DJM-900NXS2.

Newly advanced Beat FX

A new color display helps you to quickly and accurately understand the status of the selected effect, and it features lighting that corresponds with the X-Pad's horizontal arrangement, enabling more intuitive control with a simple finger slide. You can use the X-Pad to change the Echo and Ping Pong effects to create a unique analog tape-style sound. And, within the 14 total Beat FX, there are 3 new ones (Mobius, Triplet Filter, and Triplet Roll) you can use to add extra variation to your performances.

Even better, the channel selector is now a dedicated button, enabling you to quickly apply effects to your chosen channel.

Enhanced mic section

The phantom powered input means you can connect a high-quality condenser mic directly to the DJM-A9, a feature never seen before on a DJ mixer. And there are 3 new microphone effects (Echo, Pitch, Megaphone) with a dedicated reverb effect so you can change the sound of your voice and hype up the crowd with your vocals.

It's quick and easy to turn the mic input on or off with the brand-new Push To Talk button when you want to grab the mic and address the audience. The audio from the mic can be excluded from the recording output if you want, so you can MC for the live crowd but record your mix without vocals.

Expanded connectivity

Connect 2 different PC/Mac systems at the same time thanks to the dual USB Type-B and USB Type-C ports (there are 2 of each) for seamless transitions between DJs and easy back-to-back sets. And, thanks to a Bluetooth® input which you can route to any channel on the DJM-A9, you can wirelessly drop audio tracks into your sets from other devices such as smartphones and use all the mixer's features and effects to change the sound. The Multi I/O section has an independent channel selector so external effects can be used separately from Beat FX, giving the DJM-A9 true send capabilities. This means you can route the effected sound from an external unit such as an RMX-1000 or a delay pedal to a separate channel instead of the channel it came from.

Dual independent headphone outputs and booth EQ

Plug in your headphones at the same time as another DJ and enjoy the freedom to monitor the channels you want to. With separate cue buttons, volume knobs, and mix balance knobs for each set of headphones, it's easy for 2 DJs to cue up tracks during changeovers and back-to-back sets. Plus, with the 2-band booth EQ, you can change the high and low frequencies to complement the master output and match the mood in the booth to the feeling on the dancefloor.

Support for the brand-new Stagehand app and built-in Sound Check function

The DJM-A9 is compatible with Stagehand, the industry-first PRO DJ LINK remote management app for front of house teams. Using an iPad connected wirelessly to the mixer via a LAN router (available separately), an engineer can keep an eye on things such as level meters and the DJ's use of the mixer's controls, making it easier to maximize the sound system's settings and run a smoother, more impactful show without needing to interrupt the DJ's performance or even enter the booth. (Coming Soon)

OTHER FEATURES

rekordbox

Make full use of the low-latency DVS feature in rekordbox for intuitive, smooth scratching. Find out more.

Serato DVS-ready

Use Serato DVS to control and scratch with CDJs or turntables.
*You'll need to buy a license or subscription.

DJM-REC

Easily record your performances with DJM-REC for iOS/Android. This handy app enables you to share your mixes via platforms such as Mixcloud and stream in real time via services including Twitch.

Lockable power cord

Relax in the knowledge that the lockable power cord will always stay firmly in place, even if you knock it while connecting or disconnecting other equipment from the mixer.

*In some regions, a non-lockable power cord is supplied.

Video and Lighting app support

With support for TC Supply's ShowKontrol and the free application PRO DJ LINK Bridge, DJs, event producers, lighting designers, LJs, video creators, and VJs can produce sound and visual coordination with confidence, and create shows that captivate audiences.

Firmware Update Manager

You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

Specification

• Dimensions (W x D x H): 407.4 x 458.3 x 107.9 mm
  16.4" x 18.4" x 4.25"
• A/D converter: 32 bit
• Sound Color FX: Center Lock Knob
• Microphone effects: Echo
  Pitch
  Megafon
  Reverb
• Condenser microphone: Yes
• USB: USB Type-A x 1
  USB Type-B / USB Type-C x 2
• Bluetooth input
• DJ software: rekordbox
  Serato DJ Pro
• VJ / LJ / FOH support: ShowKontrol
  PRO DJ LINK Bridge
  Stagehand

Main Features

• MIDI Control: Full assignable MIDI controls
• PRO DJ LINK: Yes
• Booth EQ: Yes
• P-LOCK Fader Caps: Yes
• Auto Standby: Yes
• DVS Control: rekordbox
  Serato DJ Pro (Need to buy a license or subscription.)
• Software System Requirements: Visit rekordbox.com for its specifications.
  Visit serato.com for its specifications.

Bluetooth Audio Input

• Wireless system : Bluetooth Ver.5.0
• Maximum transmission distance : Approximately 10 m in unobstructed circumstances (Transmission distances are a guideline.)
• Frequency band used : 2.4 GHz
• Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
• Compatible Codecs : SBC, AAC
• Wireless LAN: Supported standards : IEEE 802.11 a/b/g/n/ac
  Frequency band used : 2.4 GHz / 5 GHz

What's in the box

• DJM-A9
• Power Cord
• Warranty (for some regions)
• Quick Start Guide
• Precautions for Use

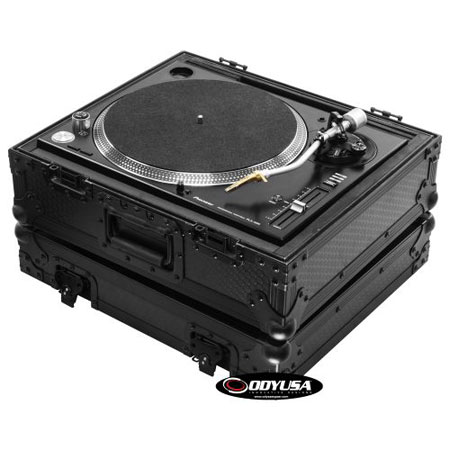

Odyssey 810103

Case Constructs:

• Hexagon Industrial Board

Case Features:

• Cable Port Hole
• Lid Foam
• Padlock Hole
• Rubber Feet

Fits:

• Technics 1200
• Similar Size Pioneer Turntables
• Other Similar Size Turntables

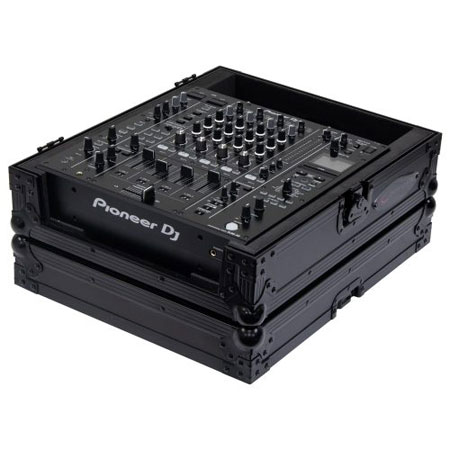

Odyssey FZDJMA9BL - Pioneer DJ DJM-A9 Black Label Flight Case

Case Constructs:

• All Black Anodized and Powder Coated Hardware

Case Features:

• Cable Port Hole
• Lid Foam
• Removable Panel

Specification

• Approx. Exterior Dimensions: 22.75" W x 19.25" D x 8.5" H
• Approx. Weight: 20 lbs
• Approx. Shipping Dimensions: 24" x 20.5" x 10.25"
• Approx. Shipping Weight: 25 lbs
• Approx. Gear Compartment Measurements: 16.25" x 16.75"
• Approx. Case Lid Interior Height: 3"
• Approx. Rear Spacing Depth: 4"
