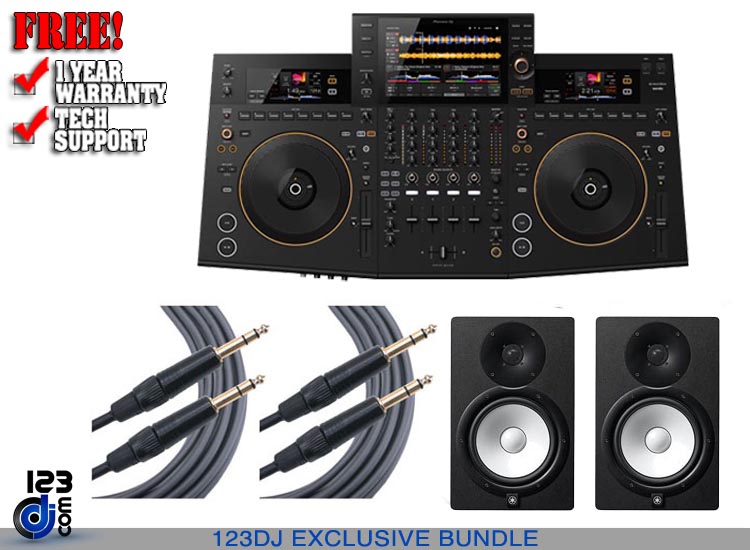

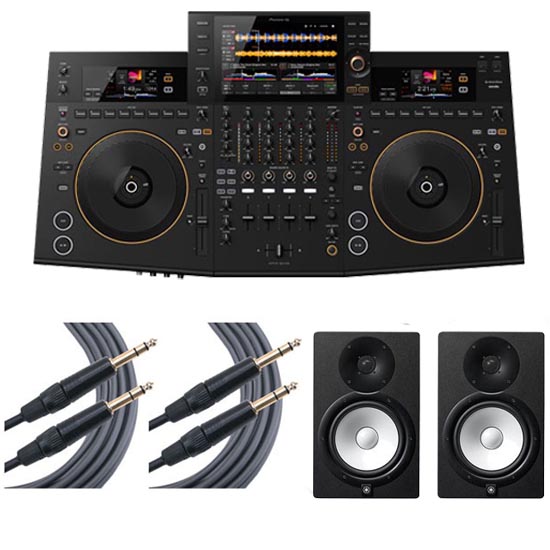

Pioneer DJ OPUS-QUAD Bedroom Rocker Kit 2

Package includes

• 1 x Pioneer DJ OPUS-QUAD
• 2 x Yamaha HS8
• 2 x Mogami TRS-TRS 6' Cable

Support for multiple media sources to match different playing styles

How do you like to play? From USB thumb drives or huge SSD drives? By plugging in your PC/Mac that's running DJ software? By connecting via Wi-Fi? to wirelessly play tracks from your smartphone using rekordbox (coming April 2023), or by using rekordbox CloudDirectPlay? You can draw from various music libraries with just 1 OPUS-QUAD and you can even pair a mobile device via Bluetooth?/MD wireless technology ? perfect if you want to quickly drop a request into your set.

Rapid and accurate track search - even from the biggest collections

Find your tracks faster and more accurately than ever before with the freshly designed user interface with an electrostatic touch module. No matter how big your music library is, you can use the 10.1-inch touch screen to quickly search for songs via the keyboard or use Playlist Bank for quick navigation between playlists. With Touch Preview, you can even preview tracks while browsing. The new Smart Rotary Selector offers a joystick-like experience with left/right, up/down, rotation, and push control. And the other browsing controls are neatly arranged around the selector so you can scour your music collection and preview and load tracks without moving your hand.

Optimized deck configuration and new Smart Cue

Take control of the music with a slick deck layout that includes a deck display and 8 Hot Cue buttons above each full-size jog wheel. With this arrangement, you don't need to switch your gaze when manipulating tracks or checking things such as the track information, parameter, and status of each function. And with the new Smart Cue feature*, you can automatically overwrite the current cue position with the recalled Hot Cues. This makes it much quicker and more intuitive than ever before to use Hot Cues with one touch.

High-quality pleasant sound that enhances the audience's experience

Designed to meet the needs of the increasingly diverse DJ scene, the OPUS-QUAD produces high-quality sound that's comfortable to listen to for long periods of time. The configuration of the unit eliminates transmission loss and AD-DA conversion loss and it's loaded with a high-quality 32-bit D/A converter from ESS Technology. As a result, wherever you play on the OPUS-QUAD, the entire venue is gently enveloped by a comfortable sound that enhances the spatial experience.

Easy-to-use professional effects

The evolved effects on the OPUS-QUAD make it easy to add texture and tension to the music so you can hype up the crowd and personalize your sound with Beat FX. The XY-Pad makes it easy to control features such as FX Bank and channel select, as Beat FX parameters and the cut-off frequency of the filter are controlled by movement on the X and Y-axis respectively, so you can blend both effects with a single finger. With the popular Smooth Echo feature, you can easily trigger an echo sound by moving a fader or knob you've pre-assigned to apply the effect when it's turned on.

Zone output for playing different music in different spaces

Thanks to the zone output ? which can output sound that's separate from the master ? you can play different music in different rooms from just 1 OPUS-QUAD. For example, you could connect a phone to the unit via Bluetooth and set a playlist of background music to play quietly in a bar area or second room where people are socializing while you mix tracks from a USB device in the main room.

rekordbox and Serato compatibility

Plug-and-play compatibility for rekordbox Performance mode and Serato DJ Pro (coming summer 2023) is included with the OPUS-QUAD. You can simply plug in your PC/Mac running either application to get started ? there's no need for a license or subscription. If you use rekordbox you can also connect to the rekordbox for iOS/Android mobile app (coming April 2023).

OTHER FEATURES

• rekordbox Link Export


  Play tracks directly from your laptop as if it were a USB drive via rekordbox Link Export mode.

• Firmware Update Manager


  You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

• Smooth Echo


  Assign the Smooth Echo effect to your choice from a selection of controls, e.g. a fader or pad. Then, when you turn on Smooth Echo with its dedicated button, the echo will be triggered as soon as you move the relevant control.

• 2 mic inputs


  The mic input circuit produces crystal-clear sound, even with a high input level.

• Beat Loop knob


  Using just one knob, you can turn on/off and change the length of a Beat Loop.

Main Features:

• Plays
  • MP3
  • AAC
  • WAV
  • AIFF
  • Apple Lossless
  • FLAC
• USB Storage Support
  • FAT16
  • FAT32
  • exFAT
  • HFS+
  • (NTFS isn't supported.)
• Compatible DJ Software
  • rekordbox for Mac/Windows: Hardware Unlock
  • rekordbox for iOS/Android (coming April 2023)
  • Serato DJ Pro: Hardware Unlock (coming summer 2023)
• MIDI Control : Yes
• USB record : Yes
• Plug and Play : Yes
• Auto Standby : Yes

Specifications:

• Sampling Rate : 44.1 kHz
• Frequency Range : 20 - 20000 Hz
• Width : 36.44 in
• Height : 5.59 in
• Depth : 19.67 in
• Weight : 29.1 lb
• Power Supply : AC 100-240 V, 50 Hz / 60Hz
• Power Consumption : 60 W
• MASTER DA converter : 32 bit
• A/D Converter : 24 bit
• Signal-to-Noise Ratio
  • USB: 114 dB
  • LINE: 96 dB
  • PHONO: 85 dB
  • MIC: 79 dB
• Distortion
  • USB: 0.003 %
  • LINE: 0.005 %
• Performance Control
  • Channels : 4
  • Deck Control : 4 (USB storage device), 4 (DJ Software control)
  • Jog Wheel : 206 mm
  • Jog Feeling : Yes
  • Sound Color FX
    • Space
    • Dub Echo
    • Sweep
    • Noise
    • Crush
    • Filter
  • Beat FX
    • Delay
    • Echo
    • Ping Pong
    • Spiral
    • Reverb
    • Trans
    • Filter
    • Flanger
    • Phaser
    • Pitch
    • Slip Roll
    • Roll
    • Vinyl Brake
    • Helix
  • Hot Cues : 8 per deck
  • Beat Loop : Yes
  • Auto Beat Loop : Yes
  • Beat Sync : Yes
  • Quantize : Yes
  • WaveZoom : Yes
  • Manual Loop : Yes
  • Trim knob : Yes
  • EQ Isolator : Yes
• Mic
  • Mic Connection : XLR connector & 1/4 inch TRS jack
  • Mic EQ : 3 band
  • Talkover : MIC OFF/ON/TALK OVER slide SW

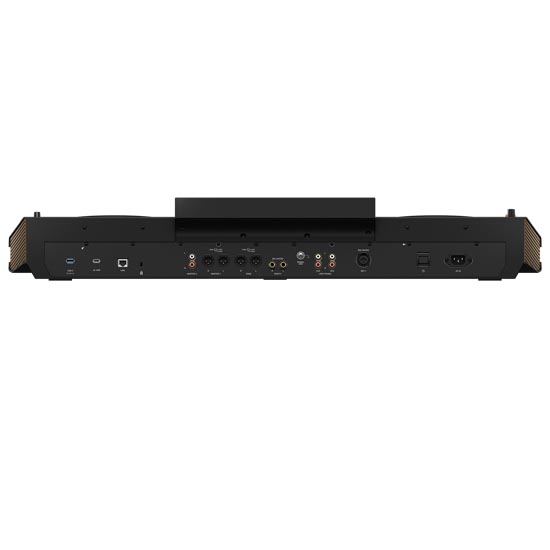

• Terminals
  • Inputs
    • 2 LINE (RCA)
    • 2 PHONO (RCA)
    • 2 MIC (XLR connector & 1/4 inch TRS jack)
  • Outputs
    • 1 MASTER (XLR)
    • 1 MASTER (RCA)
    • 1 ZONE (XLR)
    • 1 BOOTH (1/4 inch TRS Jack)
    • 1 PHONES (1/4 inch stereo phone Jack)
    • 1 PHONES (3.5-mm stereo mini jack)
  • USB
    • 3 USB A ports
    • 1 USB C port
• Wireless LAN
  • Supported standards : IEEE 802.11 a / b / g / n / ac
  • Frequency band used : 2.4 GHz / 5 GHz
• Bluetooth
  • Wireless system : Bluetooth ver. 4.2
  • Maximum transmission distance : Approximately 20 m in unobstructed circumstances.
  • Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
  • Compatible codecs : SBC, AAC

Yamaha HS8:

Yamaha's HS series are seen by some as the long-awaited successor to the company's ubiquitous NS10M studio monitors, which came onto the market way back in 1978 and can still be found in countless commercial studios to this day. In a way, that's slightly unfair on the HS.

hs8The NS10 is still fiercely defended by its ranks of devotees, but the notoriously uneven frequency response and poor low-frequency extension make it an eccentric choice at best for the demands of modern dance music production. Sure, there are plenty of producers who know them inside out - and there are few monitors as revealing in the midrange - but 35 years on there are much more suitable options for electronic music makers.

The HS8 is an altogether more modern proposition, with a flat frequency response and impressively tight and deep bottom end. The original HS80M, released back in 2006, was impressive in its own right and the new HS8 is essentially an updated version of the same monitor, with slightly improved drivers and a redesigned cabinet. We prefer the HS8 over the smaller HS7 for its deeper bass response without sacrificing mid-range clarity. (The HS7s and HS5s are still good options if your budget won't stretch to the larger model.)

• 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
• 38Hz - 30kHz frequency response
• 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Mogami TRS-TRS 6' Cable:

For outstanding neutral tone and noise rejection, Mogami Gold TRS-TRS is an excellent interconnect cable for any ¼ " balanced line cable. This cable is a very popular choice for line output into mixers and powered speakers.

• Wired with Neglex Studio Quad
• Offers superior clarity and freedom from noise/RF interference
• Terminated with black body, gold contact TRS connectors
