Pioneer DJ OPUS-QUAD and (2) JBL PRX815W with Stands and Cables Package

Support for multiple media sources to match different playing styles

How do you like to play? From USB thumb drives or huge SSD drives? By plugging in your PC/Mac that's running DJ software? By connecting via Wi-Fi? to wirelessly play tracks from your smartphone using rekordbox (coming April 2023), or by using rekordbox CloudDirectPlay? You can draw from various music libraries with just 1 OPUS-QUAD and you can even pair a mobile device via Bluetooth?/MD wireless technology ? perfect if you want to quickly drop a request into your set.

Rapid and accurate track search - even from the biggest collections

Find your tracks faster and more accurately than ever before with the freshly designed user interface with an electrostatic touch module. No matter how big your music library is, you can use the 10.1-inch touch screen to quickly search for songs via the keyboard or use Playlist Bank for quick navigation between playlists. With Touch Preview, you can even preview tracks while browsing. The new Smart Rotary Selector offers a joystick-like experience with left/right, up/down, rotation, and push control. And the other browsing controls are neatly arranged around the selector so you can scour your music collection and preview and load tracks without moving your hand.

Optimized deck configuration and new Smart Cue

Take control of the music with a slick deck layout that includes a deck display and 8 Hot Cue buttons above each full-size jog wheel. With this arrangement, you don't need to switch your gaze when manipulating tracks or checking things such as the track information, parameter, and status of each function. And with the new Smart Cue feature*, you can automatically overwrite the current cue position with the recalled Hot Cues. This makes it much quicker and more intuitive than ever before to use Hot Cues with one touch.

High-quality pleasant sound that enhances the audience's experience

Designed to meet the needs of the increasingly diverse DJ scene, the OPUS-QUAD produces high-quality sound that's comfortable to listen to for long periods of time. The configuration of the unit eliminates transmission loss and AD-DA conversion loss and it's loaded with a high-quality 32-bit D/A converter from ESS Technology. As a result, wherever you play on the OPUS-QUAD, the entire venue is gently enveloped by a comfortable sound that enhances the spatial experience.

Easy-to-use professional effects

The evolved effects on the OPUS-QUAD make it easy to add texture and tension to the music so you can hype up the crowd and personalize your sound with Beat FX. The XY-Pad makes it easy to control features such as FX Bank and channel select, as Beat FX parameters and the cut-off frequency of the filter are controlled by movement on the X and Y-axis respectively, so you can blend both effects with a single finger. With the popular Smooth Echo feature, you can easily trigger an echo sound by moving a fader or knob you've pre-assigned to apply the effect when it's turned on.

Zone output for playing different music in different spaces

Thanks to the zone output ? which can output sound that's separate from the master ? you can play different music in different rooms from just 1 OPUS-QUAD. For example, you could connect a phone to the unit via Bluetooth and set a playlist of background music to play quietly in a bar area or second room where people are socializing while you mix tracks from a USB device in the main room.

rekordbox and Serato compatibility

Plug-and-play compatibility for rekordbox Performance mode and Serato DJ Pro (coming summer 2023) is included with the OPUS-QUAD. You can simply plug in your PC/Mac running either application to get started ? there's no need for a license or subscription. If you use rekordbox you can also connect to the rekordbox for iOS/Android mobile app (coming April 2023).

OTHER FEATURES

• rekordbox Link Export


  Play tracks directly from your laptop as if it were a USB drive via rekordbox Link Export mode.

• Firmware Update Manager


  You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

• Smooth Echo


  Assign the Smooth Echo effect to your choice from a selection of controls, e.g. a fader or pad. Then, when you turn on Smooth Echo with its dedicated button, the echo will be triggered as soon as you move the relevant control.

• 2 mic inputs


  The mic input circuit produces crystal-clear sound, even with a high input level.

• Beat Loop knob


  Using just one knob, you can turn on/off and change the length of a Beat Loop.

Main Features:

• Plays
  • MP3
  • AAC
  • WAV
  • AIFF
  • Apple Lossless
  • FLAC
• USB Storage Support
  • FAT16
  • FAT32
  • exFAT
  • HFS+
  • (NTFS isn't supported.)
• Compatible DJ Software
  • rekordbox for Mac/Windows: Hardware Unlock
  • rekordbox for iOS/Android (coming April 2023)
  • Serato DJ Pro: Hardware Unlock (coming summer 2023)
• MIDI Control : Yes
• USB record : Yes
• Plug and Play : Yes
• Auto Standby : Yes

Specifications:

• Sampling Rate : 44.1 kHz
• Frequency Range : 20 - 20000 Hz
• Width : 36.44 in
• Height : 5.59 in
• Depth : 19.67 in
• Weight : 29.1 lb
• Power Supply : AC 100-240 V, 50 Hz / 60Hz
• Power Consumption : 60 W
• MASTER DA converter : 32 bit
• A/D Converter : 24 bit
• Signal-to-Noise Ratio
  • USB: 114 dB
  • LINE: 96 dB
  • PHONO: 85 dB
  • MIC: 79 dB
• Distortion
  • USB: 0.003 %
  • LINE: 0.005 %
• Performance Control
  • Channels : 4
  • Deck Control : 4 (USB storage device), 4 (DJ Software control)
  • Jog Wheel : 206 mm
  • Jog Feeling : Yes
  • Sound Color FX
    • Space
    • Dub Echo
    • Sweep
    • Noise
    • Crush
    • Filter
  • Beat FX
    • Delay
    • Echo
    • Ping Pong
    • Spiral
    • Reverb
    • Trans
    • Filter
    • Flanger
    • Phaser
    • Pitch
    • Slip Roll
    • Roll
    • Vinyl Brake
    • Helix
  • Hot Cues : 8 per deck
  • Beat Loop : Yes
  • Auto Beat Loop : Yes
  • Beat Sync : Yes
  • Quantize : Yes
  • WaveZoom : Yes
  • Manual Loop : Yes
  • Trim knob : Yes
  • EQ Isolator : Yes
• Mic
  • Mic Connection : XLR connector & 1/4 inch TRS jack
  • Mic EQ : 3 band
  • Talkover : MIC OFF/ON/TALK OVER slide SW
• Terminals
  • Inputs
    • 2 LINE (RCA)
    • 2 PHONO (RCA)
    • 2 MIC (XLR connector & 1/4 inch TRS jack)
  • Outputs
    • 1 MASTER (XLR)
    • 1 MASTER (RCA)
    • 1 ZONE (XLR)
    • 1 BOOTH (1/4 inch TRS Jack)
    • 1 PHONES (1/4 inch stereo phone Jack)
    • 1 PHONES (3.5-mm stereo mini jack)
  • USB
    • 3 USB A ports
    • 1 USB C port
• Wireless LAN
  • Supported standards : IEEE 802.11 a / b / g / n / ac
  • Frequency band used : 2.4 GHz / 5 GHz
• Bluetooth
  • Wireless system : Bluetooth ver. 4.2
  • Maximum transmission distance : Approximately 20 m in unobstructed circumstances.
  • Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
  • Compatible codecs : SBC, AAC

JBL PRX815W Description

15" Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

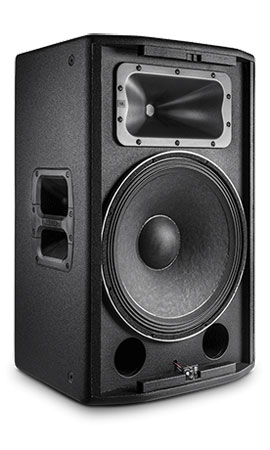

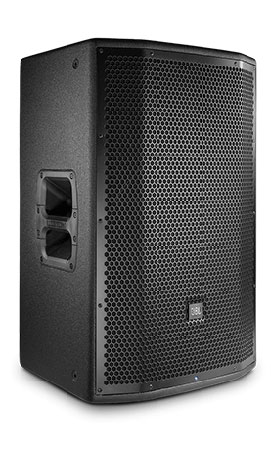

The JBL PRX815W is a full-range speaker designed for main system and floor monitor applications. Featuring a 15", two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815W delivers incredible volume in a lightweight and compact form factor.

FEATURES

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue
• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive® transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4" and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
• Universal power supply for worldwide compatibility
• dbx Type IV™ limiting ensures clear, accurate sound at high volumes
• Brutal testing regimen - including the famous JBL 100-hour power test-ensures reliable performance

APPLICATIONS

• The 2-way 15" offers the perfect balance between size and performance. The PRX815W truly is an exception; it's small, light weight, versatile and powerful with remote Wi-Fi control of onboard DSP EQ parameters. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ's when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815W delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX800 sub-woofer the system becomes an efficient, full-range sound system.

• The PRX815W is comprised of 15" 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
• All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

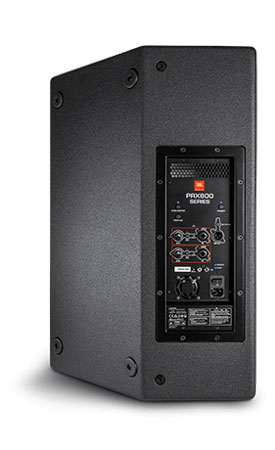

• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

SPECIFICATIONS

• System Type Self Powered 15", two-way, bass-reflex
• Maximum SPL Normal: 137 dB
• Boost: 137 dB
• Frequency Range (-10 dB) Main: 50-20k
• Monitor: 46-20k
• Frequency Response (±3 dB) Main: 56-20k
• Monitor: 56-19k
• Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
• EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
• Dynamic Control (Input) dbx Type IV™ limiter circuit
• Crossover Frequency 2.0 kHz
• Design Highly efficient Class-D amplifier
• Power Rating 1500W (750W x 2)
• AC Power Input 100V - 240V ~ 50/60 Hz
• LF Driver 1 x JBL 275G (15 in) woofer
• HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Coverage Pattern 90° x 50° nominal
• Directivity Index (DI) 10.2 dB
• Directivity Factor (Q) 10.4
• Enclosure Asymmetrical, 18 mm, plywood
• Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
• Transport 1 x injection molded handle with backing cup
• Finish Obsidian DuraFlex™ finish
• Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D) 701 mm x 446 mm x 359 mm
• (27.6 in x 17.5 in x 14.1 in)
• Net Weight 21.6 kg (47.5 lb)
• Gross Weight 26.3 kg (58.0 lb)

What's Included:

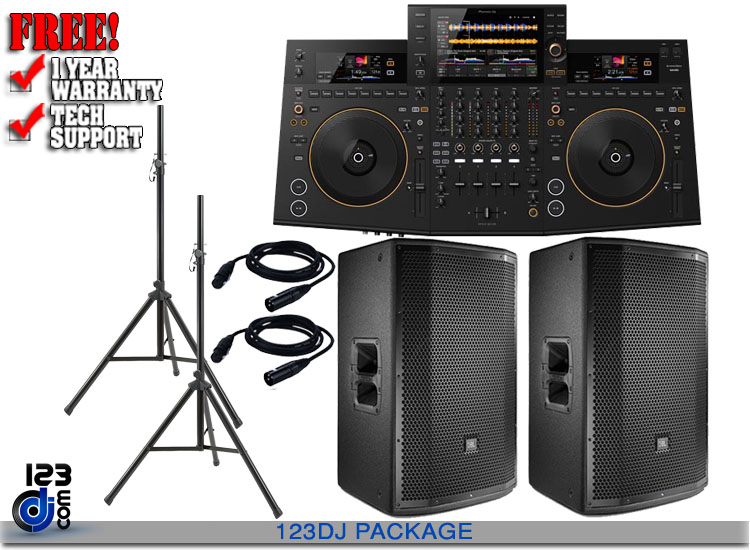

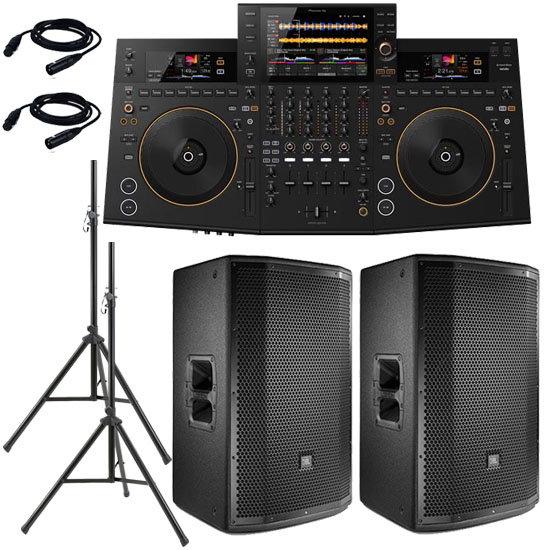

• (1) Pioneer DJ OPUS-QUAD
• (2) JBL PRX815W
• (2) Speaker Stands
• (2) XLR Cables
