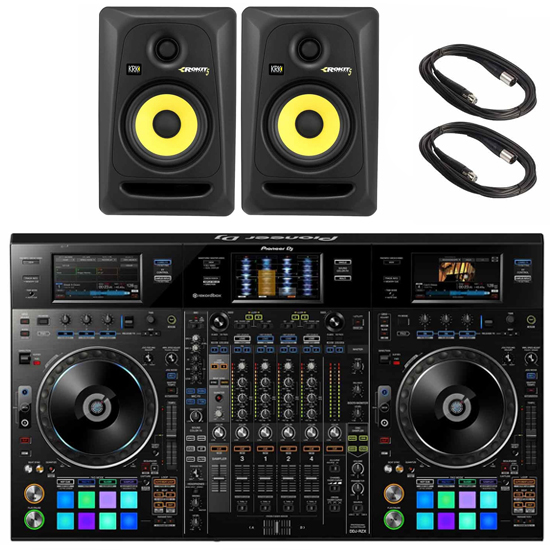

Pioneer DDJ-RZX Pro 4-Channel Rekordbox with KRK Rokit 5" Powered Monitor Speakers Package

Overview

This Package Includes:

• (1) Pioneer DDJ-RZX Professional 4-channel Controller for Rekordbox DJ & Rekordbox video
• (2) American DJ 12FT XLR to XLR Cables
• (2) KRK Rokit 5 G3 RP5G3 5" Powered Studio Monitor Speakers

The DDJ-RZX Box Includes:

• Pioneer DDJ-RZX
• Power cord
• Warranty card & instructions
• QuickStart guide
• Software license notice
• Rekordbox DJ license key card
• Rekordbox DVS license key card
• Rekordbox video license key card

Each XL-12 Box Includes:

• (1) American DJ 12FT XLR to XLR Cable [XL-12]

Each RP5G3 Box Includes:

• (1) KRK Rokit 5 G3 RP5G3 Powered Studio Monitor Speaker
• (1) Power Cord
• (1) User guide & warranty card

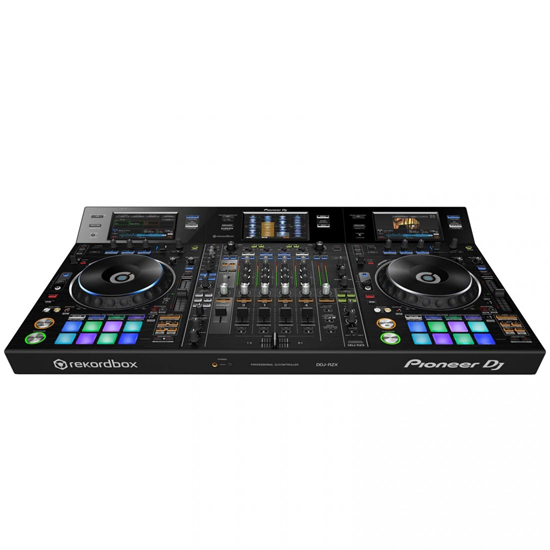

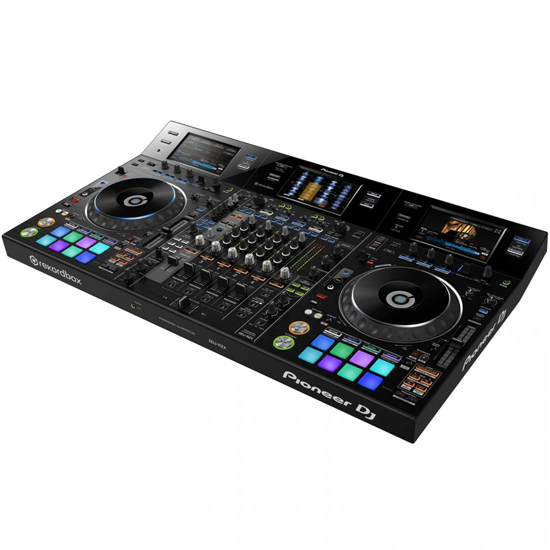

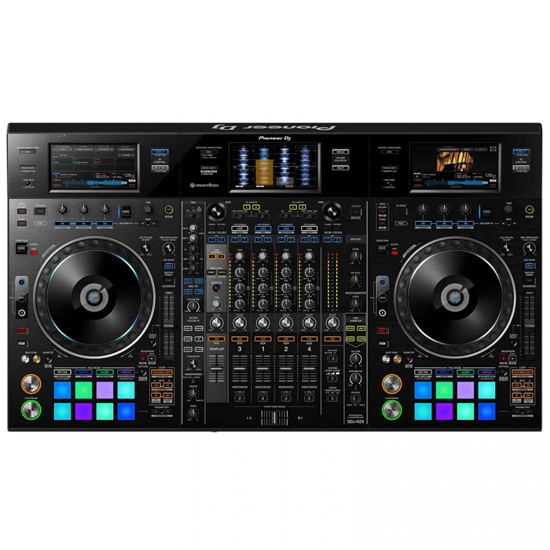

Pioneer DDJ-RZX Professional 4-channel Controller for Rekordbox DJ & Rekordbox video

Visual control

Visualise your sets with the DDJ-RZX controller for rekordbox video. Designed for DJs on the road, it comes with three 7-inch touch screens that let you close your laptop and get intuitive control over audio and video features in rekordbox dj and rekordbox video directly from the hardware.

The DDJ-RZX inherits traits from the CDJ-2000NXS2 multiplayer and DJM mixer series including large jog wheels, multicoloured Performance Pads and high-quality sound. Plus an extensive FX unit lets you trigger Mic FX, Combo FX, Sampler Repeat and Release FX – as well as the studio-quality Sound Colour FX from the DJM-900NXS2.

DDJ-RZX Key features:

Familiar layout

Mix audio and videos instinctively with features inherited from the CDJ and DJM series including large jog wheels and multicoloured tactile Performance Pads. The 4-channel controller has an independent sampler section for intuitive control of Beat Sync, quantize and trim on the sampler.

High-quality sound

Hear the true quality of your tracks thanks to AC inlets for reduced cable contact resistance and a high-performance 96 KHz/32 bit D/A converter made by Asahi Kasei. Plus a low-jitter clock IC and the 96 kHz/24 bit USB sound card ensure powerful, high-quality sound.

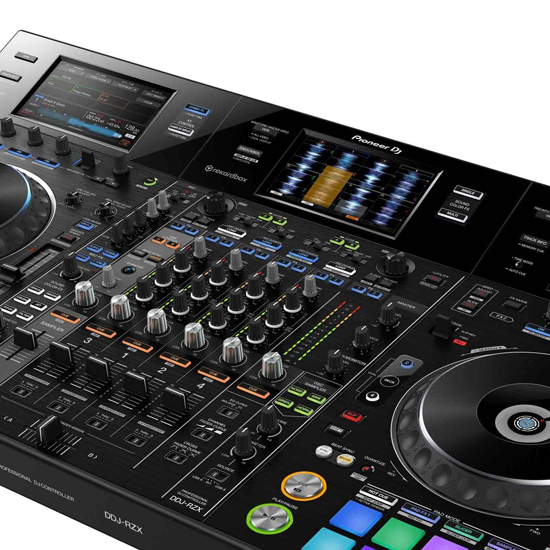

3 touch displays

Three 7-inch touch screens give you direct access to track info such as titles, BPM and key using deck display mode, and enlarged waveforms for each track, as well as loops and Hot Cues in mixer display mode. You can use the displays to preview/monitor video and image files, trigger Beat FX and Release FX, while Touch FX lets you add FX and adjust parameters by tracing on the x and y axes on the display. All without having to touch your laptop.

Dedicated mic section

2 XLR combo input jacks give distortion-free Mic output even at loud volumes. The dedicated 3-band EQ and Mic FX – Echo, Reverb, Pitch or V-Tune – let you tune each voice to give your performance just that little extra.

Advanced FX

The DDJ-RZX is stacked with pro-DJ FX controls for rekordbox dj and external sound sources. You can apply Sound Colour FX and Beat FX simultaneously, and trigger Release FX to reset them instantly to create a break. Plus you can add sub parameters to the Sound Colour FX or use Sampler Repeat to change the length of a loop.

Rekordbox video

You get a free licence key for rekordbox video bundled with this controller. Use it to load videos and image files to the decks from a laptop or stream live footage from a USB camera, then add text overlays and FX in real-time. You have the option to prepare your video sets in rekordbox or mix your visuals on the fly.

DDJ-RZX Additional Features:

Sound Color FX

You can add sub parameters to the Sound Color FX – Space, Dub Echo, Crush, Jet, Pitch, Filter – or use Sampler Repeat to change the length of a loop.

OSC Sampler

Use the oscillator sampler to overlay 4 pre-set sounds – Noise, Sine, Siren and Horn – and modulate the output using the dial. The sampler also gives you the freedom to trigger and manipulate your own samples loaded to the banks in rekordbox dj.

Active Censor

Intuitively control the Active Censor feature in rekordbox dj. Set in and out points and apply Reverse Roll, Trans, Echo or Vinyl Brake FX to disguise explicit words in tracks. The FX will then be heard whenever the track is played from rekodbox dj.

Dual USB ports

2 USB sound cards and ports mean you can hook-up 2 computers at the same time and use the top-loaded A/B switch for seamless DJ transitions.

Durable design

This controller comes with a brushed aluminium top plate for a professional feel, a newly developed crossfader for smooth control over long-term use, and P-LOCK Fader Caps to prevent the fader knobs from dropping.

Robust crossfader

Our newly developed crossfader is highly durable and capable of over 10 million movements.

rekordbox dj

You get a free rekordbox dj licence key bundled with this controller. Simply activate your licence key, connect the controller and start DJing.

rekordbox dvs

You also get a free licence key for rekordbox dvs included in the box, giving you highly responsive scratch control with music from your rekordbox library.

KRK Rokit 5 G3 RP5G3 5? Powered Studio Monitor Speaker

KRK Systems is one of the world's most respected manufacturers of studio reference monitors. In their state of the art design facility, KRK engineers create products that deliver natural and balanced spectral response with low distortion and superior imaging. KRK Studio Monitors have been the professional's choice of recording engineers and artists for mixing and mastering hit records around the globe, as they need to hear every nuance of the audio being reproduced. KRK ROKIT Generation 3 monitors continue in this design philosophy, so regardless of your musical style, genre, or particular mixing needs, KRK Rokits deliver.

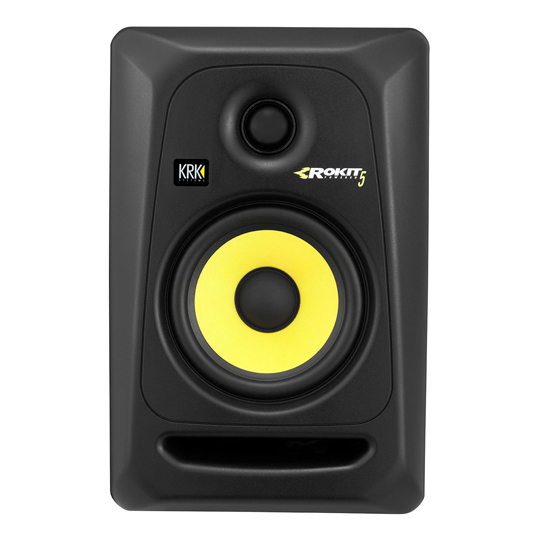

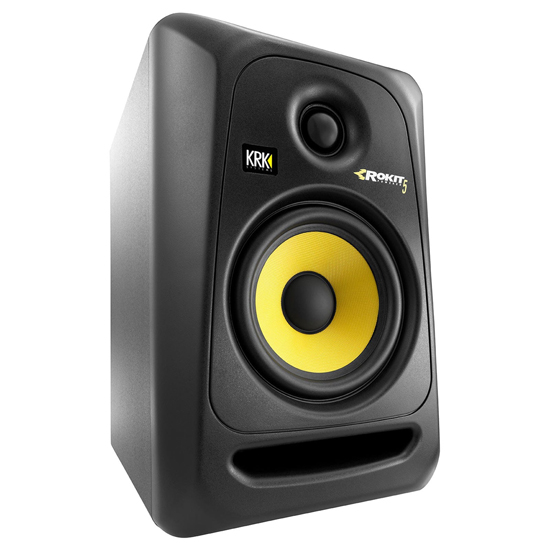

ROKIT 5 Powered Monitor – Generation 3

KRK's ROKIT 5 G3 (Generation 3) powered studio monitors offer professional performance and accuracy for recording, mixing, mastering and playback. The system consists of a 1" soft dome tweeter and 5" glass-Aramid composite woofer. It delivers high frequencies up to 35kHz, vocal clarity and extended bass response. The proprietary bi-amped, class A/B amplifier grants SPL up to 106dB. The ROKIT waveguide is designed to ensure detailed imaging in the listening position. The front-firing bass port reduces boundary coupling to allow flexible positioning in the room while the engineered surface reduces diffraction distortion. Multiple input connections ensure the ROKIT 5 G3 will easily integrate in any system configuration.

As one of the most used Studio monitors in the world, the ROKIT 5 is a high valuable and compact solution towards an accurate mix.

Rokit 5 G3 Features:

• Bi-amped, class A/B amplifier offering large headroom and low distortion.
• Proprietary waveguide optimized for superior imaging.
• 1" Soft-dome tweeter provides pristine clarity & extended response up to 35kHz.
• High-frequency adjustment tailors the system to personal taste.
• Lightweight, glass-Aramid composite woofer delivers clear midrange & tight bass.
• Low-frequency adjustment tailors the monitors to taste and adjusts for room acoustics.
• Front Firing Port — Low-frequency extension while reducing boundary coupling.
• Radiused edges reduce distortion from diffraction.
• Low-resonance enclosure for minimized distortion and colorization.
• Multiple audio input connectors (XLR, ¼", RCA) for universal connectivity in any studio environment.
• Factory installed foam pad provides isolation between the speaker and surface.
• Peak SPL : 106dB.
• Frequency Response 45Hz – 35kHz (+/- 2 dB).

Pioneer DDJ-RZX Specifications

Main Features

• P-LOCK Fader Cap Yes
• Magnetic Crossfaders Yes
• Plug and Play Yes
• Auto Standby Yes
• Included Software
• rekordbox dj
• rekordbox video
• rekordbox dvs
• Software System Requirements OS
• Windows: 10, 8.1, 7 (The latest service pack)
• Mac OS X: 10.11, 10.10, 10.9 (Updated to the latest version)
• Minimum system requirements
  • CPU: 2.5GHz dual-core Intel Core i5 or higher
  • Memory: 8GB or more of RAM
  • Hard Drive: 250MB or more of free space (not including space for storing music files, etc.)
  • Display resolution: Resolution of 1280×768 or greater
• Recommended system requirements
  • CPU: 2.2GHz quad-core Intel Core i7 or higher
  • Memory: 16GB or more of RAM
  • Hard Drive: 250MB or more of free space (not including space for storing music files, etc.)
  • Display resolution: Resolution of 1280 x 768 or greater

Specifications

• Width 945 mm
• Height 119.7 mm
• Depth 547 mm
• Weight 15.9 kg / 35 lbs.
• Soundcard 24 bit/96 kHz
• Frequency Range 20 – 20,000 Hz
• Signal-to-Noise Ratio 116 dB
• Distortion
• < 0.002 % (USB)
• < 0.003 % (CD/LINE)
• Power Consumption 48 W
• Power Consumption (Standby) < 0.4 W

Performance Control

• Channels: 4
• Deck Control: 4 / Dual
• Trim knob: Yes
• Jog Wheel: 202 mm durable aluminium jog wheel
• Feeling Adjust: Yes
• Pad FX: Yes
• Filter: High & Low Pass filter
• Colour FX: Crush, Echo, Filter, Jet, Pitch, Space
• Release FX: Back spin, Echo, Vinyl brake
• FX Parameters: 3knob x 3button
• Sampler: 16slot x 4bank
• Oscillator Sampler: Horn, Noise, Sine, Siren
• Hot Cues: 8
• Sequencer: Yes
• Sequence load: Yes
• Sequence call: Yes
• Manual Loop: Yes
• Auto Beat Loop: Yes
• Beat Jump: Yes
• Slip Mode: Yes
• Needle Search: Yes
• Talkover Function: Yes
• EQ Isolator: Yes

Fader

• Fader Start: Yes
• Crossfader Curve Adjust: Yes

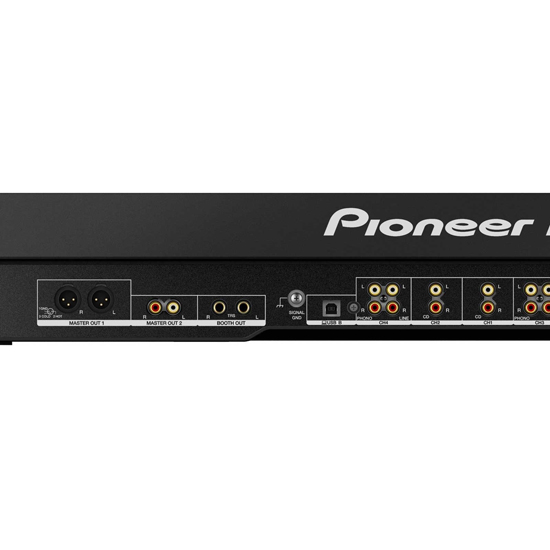

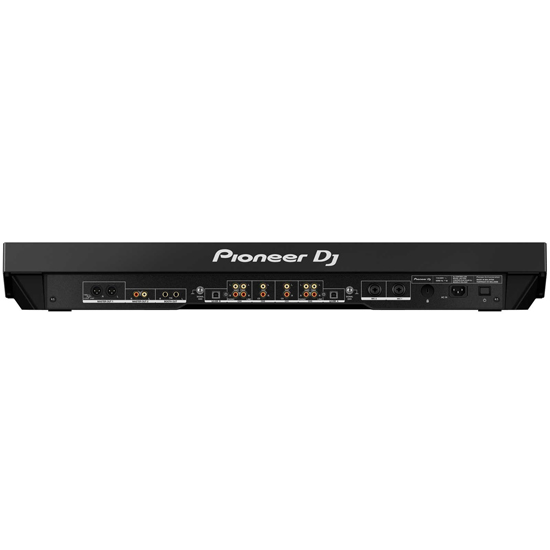

Terminals

• Inputs: 2 PHONO (RCA), 4 CD/LINE (RCA), 2 MIC (XLR/Jack Combo)
• Outputs: 1 BOOTH (1/4 inch TRS Jack), 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack), 2 MASTER (XLR, RCA)
• USB: 2 USB B ports

KRK ROKIT 5 G3 Technical Specifications

• Configuration: 2-Way
• System type: Active Studio Monitor
• Low-Frequency: 5" Aramid Glass Composite woofer
• Mid-Frequency: N/A
• High-Frequency: 1" soft dome tweeter
• Frequency Response: 45Hz – 35kHz
• Max Peak SPL: 106 dB
• Amplifier Class: Class A-B
• Power Output: 50W
• High Frequency: 20W
• Mid-Frequency: N/A
• Low Frequency: 30W
• Input Impedance (Ohms): 10 K Ohm balanced
• HF Level Adjust: -2dB, -1dB, 0, +1dB
• System Volume: (-30dB – +6dB)
• Indicators: Power
• Input Connectors:
• Unbalanced RCA
• Balanced 1/4" TRS
• Balanced XLR
• Enclosure Construction: MDF
• Finish: Black vinyl wrap
• Port Configuration: Front firing slot port
• Dimensions (D x W x H): 9.06" (230mm) x 7.28" (185mm) x 11.10" (282mm)
• Weight: 14.1 lbs (6.4 kg)
