(2) Electro-Voice ZLX-15P with Yamaha MG10XU Mixer & Microphones Package

(2) Electro-Voice ZLX-15P with Yamaha MG10XU Mixer & Microphones Package

Regular Price $2277.99

Our Price $1138.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $60.00

Regular Price $2277.99

Our Price $1138.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $60.00

We'll beat any price!

(2) Electro-Voice ZLX-15P 15" Two-Way Powered Loudspeakers with Yamaha MG10XU 10-Input Stereo Mixer & Microphones Package

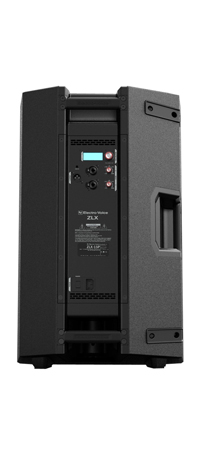

Electro-Voice ZLX-15P 15" Two-Way Powered Loudspeaker

With ZLX, Electro-Voice set out with a singular goal: to deliver best-in-class performance across every detail. The Electro-Voice ZLX-15P is a powered PA enclosure with a 15" woofer and 1.5" titanium compression driver that gives you the confidence of the industry's most trusted components. The enclosure is engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer. The compact, lightweight ZLX-12P was designed to give you power and performance beyond the scope of other small-format loudspeakers, making it a standout choice for smaller-venue sound reinforcement or stage-monitoring.

ZLX combines decades of proven pro-audio engineering know-how with a bold new look and user-friendly features that give you an extraordinary amount of control over your sound

Electro-Voice ZLX-15P Specifications

  • Frequency Range 42 Hz - 20 kHz
  • Maximum SPL 127 dB
  • Power Rating 1000 W
  • Frequency Response 55 Hz - 18 kHz
  • Coverage (Nominal -6 dB) H 90°
  • Coverage (Nominal -6 dB) V 60°
  • LF Transducer EVS-15L, 380 mm (15 in) Woofer
  • HF Transducer DH-1K
  • Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
  • Enclosure Material Polypropylene
  • Grill 18 Gauge Steel with Black Powder Coat
  • Height 685 mm (26.97")
  • Width 423 mm (16.65")
  • Depth 383 mm (15.08")
  • Weight Net 17.3 kg (38.14 lbs)
  • Shipping Weight 23 kg (50.71 lbs)

Yamaha MG10XU Specifications:

  • Outline MG10XU
  • I/O Phantom power +48 V
  • Input Channels Mono[MIC/LINE] 4
  • Stereo[LINE] 3
  • Output Channels STEREO OUT 2
  • MONITOR OUT 1
  • PHONES 1
  • AUX SEND 1
  • Bus Stereo: 1, AUX: 1
  • Input Channel Function PAD 26 dB (Mono)
  • HPF 80 Hz, 12 dB/oct (Mono)
  • COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
  • EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
  • General specifications MG10
  • Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
  • Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Crosstalk -83 dB
  • Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
  • Power consumption 22.9 W
  • Dimensions W 244 mm (9.6")
  • H 71 mm (2.8")
  • D 294 mm (11.6")
  • Net weight 1.9 kg (4.19 lbs.)
  • Accessories Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
  • Others Operating Temperature: 0 to +40

Shure PG48

Features:

  • Tailored frequency response is smooth and extended. Tuned specifically for vocal applications.
  • Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings.
  • Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion.
  • Cartridge includes a neodymium magnet for high output leve
  • Durable metal construction.
  • On/off switch for onstage control.
  • Steel mesh ball grille with integral "pop" filter reduces explosive breath sounds and wind noise.

What's in the box

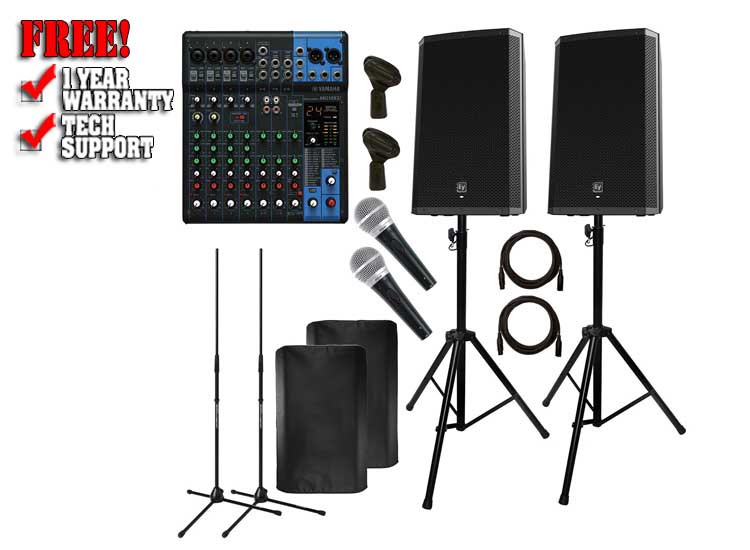

This Package Includes:

  • (2) Electro-Voice ZLX-15P 15" Two-Way Powered Loudspeakers
  • (2) Properly Fitting & Durable Protective Transport Covers
  • (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
  • (2) Shure 48 Microphones
  • (2) Ultimate Support JS-MC100 JamStands Tripod Microphone Stands [16807]
  • (2) 20FT Sure-Fit XLR Connecting Cables

Each Electro-Voice ZLX-15P Retail Box Includes:

  • (1) Electro-Voice ZLX-15P Loudspeaker
  • (1) Power Cord
  • (1) User Guide

The MG10XU Retail Box Includes:

  • (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
  • (1) AC Power Adaptor
  • (1) Technical Specifications
  • (1) Set of Cubase AI Download Information
  • (1) Owner's Manual

Each 16807 Retail Box Includes:

  • (1) Ultimate Support JS-MC100 JamStands Tripod Microphone Stand [16807]
