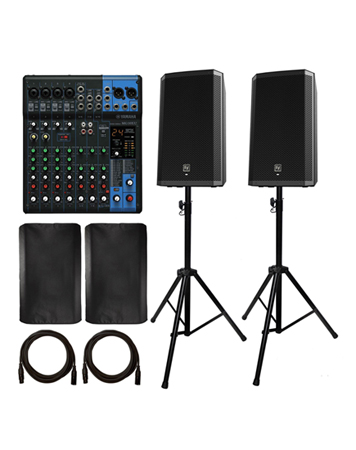

(2) Electro-Voice ZLX-12P 12" Two-Way Powered PA Loudspeakers with Yamaha MG10XU 10-Input Stereo Mixer Package

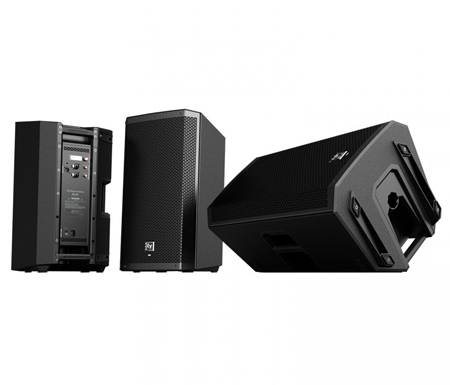

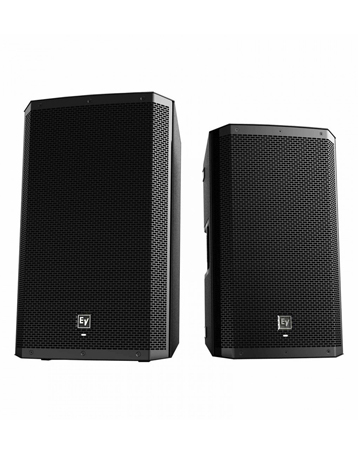

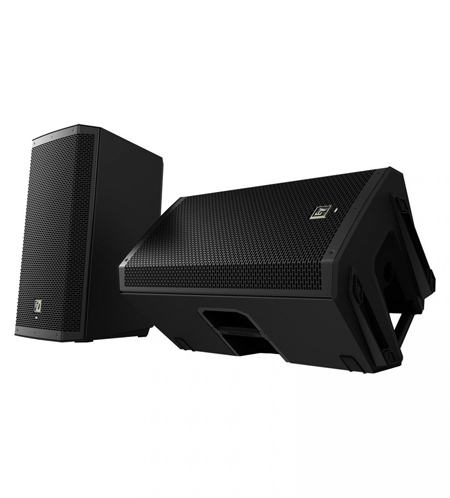

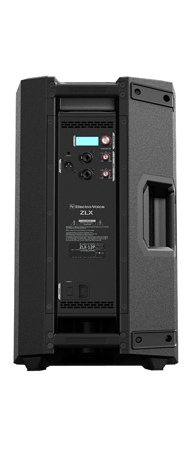

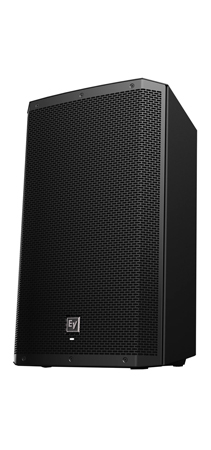

Electro-Voice ZLX-12P Specifications

• Frequency Range 50 Hz - 20 kHz
• Maximum SPL 126 dB
• Power Rating 1000 W
• Frequency Response 65 Hz - 18 kHz
• Coverage (Nominal -6 dB) H 90 ??
• Coverage (Nominal -6 dB) V 60 ??
• LF Transducer EVS-12K, 300 mm (12 in) Woofer
• HF Transducer DH-1K
• Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
• Enclosure Material Polypropylene
• Grill 18 Gauge Steel with Black Powder Coat
• Height 610 mm (24.02")
• Width 356 mm (14.02")
• Depth 356 mm (14.02")
• Weight Net 15.6 kg (34.39 lbs)
• Shipping Weight 19 kg (41.89 lbs)

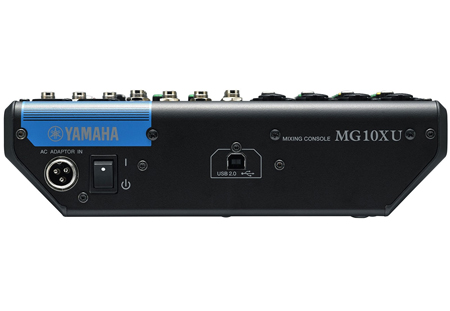

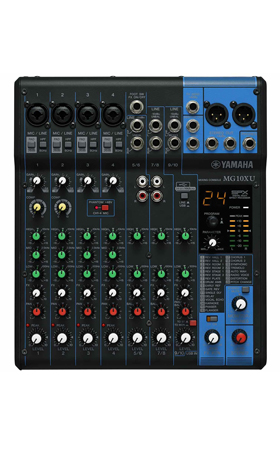

Yamaha MG10XU Specifications:

• Outline MG10XU
• I/O Phantom power +48 V
• Input Channels Mono[MIC/LINE] 4
• Stereo[LINE] 3
• Output Channels STEREO OUT 2
• MONITOR OUT 1
• PHONES 1
• AUX SEND 1
• Bus Stereo: 1, AUX: 1
• Input Channel Function PAD 26 dB (Mono)
• HPF 80 Hz, 12 dB/oct (Mono)
• COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
• EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
• General specifications MG10
• Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
• Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk -83 dB
• Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
• Power consumption 22.9 W
• Dimensions W 244 mm (9.6")
• H 71 mm (2.8")
• D 294 mm (11.6")
• Net weight 1.9 kg (4.19 lbs.)
• Accessories Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
• Others Operating Temperature: 0 to +40
