Yorkville PS15P Parasource 15" Powered Loudspeaker

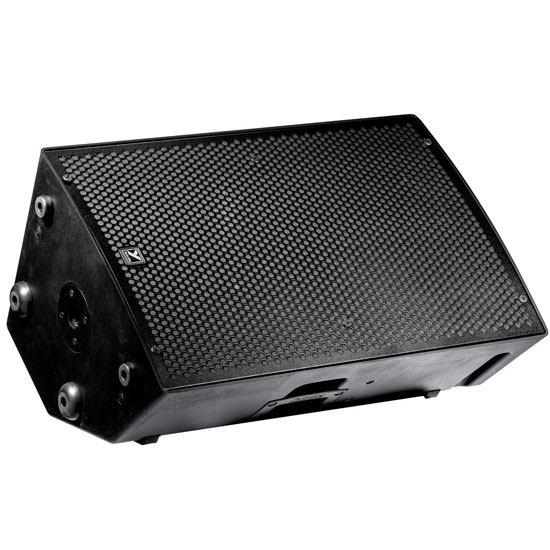

Versatile and uncompromising, Parasource cabinets excel as both front-of-house speakers and stage monitors. With powerful amplifiers, innovative multiband DSP and exceptional bass response, they can comfortably fill a venue on their own or shake its foundation when paired with a matching subwoofer.

The PS15P features a 15-inch woofer and 1-inch compression driver. It delivers 4400 watts of peak power (1400 watts program) with a maximum continuous SPL of 129 dB.

It offers robust bass management, with three key elements. Transparent multiband limiting ensures that low-frequency peaks don't interfere with critical midrange elements like vocals and solo instruments. Two selectable cabinet voicings include the standard Concert mode for a longer throw, or Club mode for enhanced low-frequency response. The selectable subwoofer mode disables the bass boost and filters signals below 100 Hz, so an external crossover isn't required when pairing with a sub.

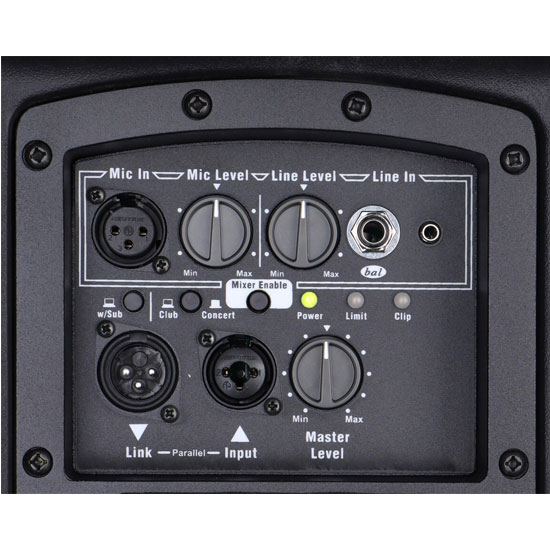

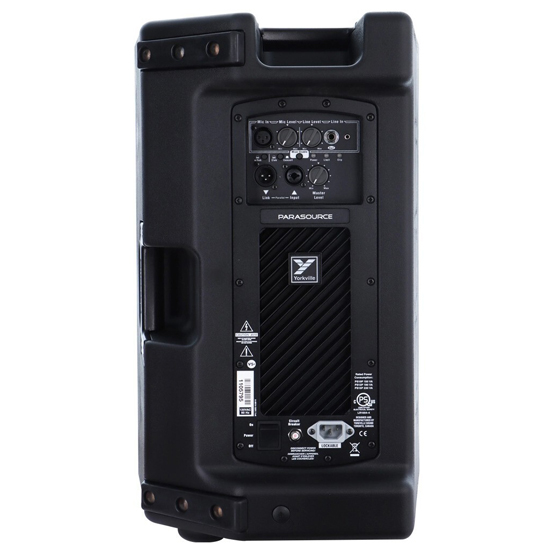

The rear panel features a main Combi-Jack input and parallel Link output. A 2-channel mixer can be enabled for additional flexibility, with an XLR mic input and both 1/4" and 1/8" TRS line inputs. When linking multiple Parasource cabinets, three onboard mixers can be enabled, allowing up to three mic sources and three line sources without requiring an external console.

The durable ABS construction is rugged and lightweight, and the cabinet features a pole mount adapter and reinforced flypoints for easy integration on any stage.

Features

• 4400 W Peak Power (1400 W Program)
• Max SPL 134 dB Peak (129 dB Continuous)
• 15" Woofer with 3" Voice Coil
• 1" Compression Driver
• 2-Channel Mixer with Microphone and Line Inputs
• Onboard DSP with 2 Voicing Modes and Multiband Limiting
• Lightweight ABS Cabinet Construction
• Integrated Standmount Adapter and Reinforced Flypoints
• Made in Canada

Specifications

• System Type: Powered Loudspeaker
• Power Rating: 4400 W Peak (1400 W Program)
• Max SPL: 134 dB Peak (129 dB Continuous)
• Frequency Response (Hz +/- 3dB): 45 Hz - 26 kHz
• Crossover Frequency: 1 kHz
• Driver Configuration: 15" / 1"
• HF Driver(s): 1" with 1.5" Voice Coil
• HF Dispersion (°H x °V): 85° x 50°
• HF Protection: Thermal / Peak Limiter
• LF Driver(s): 15" with 3" Voice Coil
• LF Protection: Thermal / Multiband Peak Limiter
• MF Processing: Dynamic Bass Extension
• Cooling Scheme: Passive
• Power Consumption (typ/max): 1.91 A @ 120 VAC, 0.96 A @ 230 VAC
• Inputs: 1x Combi-Jack (Main), 1x XLR Microphone (Mixer Ch 1), 1x 1/4" TRS, 1x 1/8" TRS (Mixer Ch 2)
• Outputs: 1x XLR
• Inputs - 1/4 IN Jacks: Yes (x2)
• Input Sensitivity (Vrms Sine): 1.23 Vrms +4 dBu
• Controls: Master Level, Sub In / Out, Club / Concert Mode, Mixer Enable, Mic Level, Line Level
• LED Indicators: Power, Limit, Clip

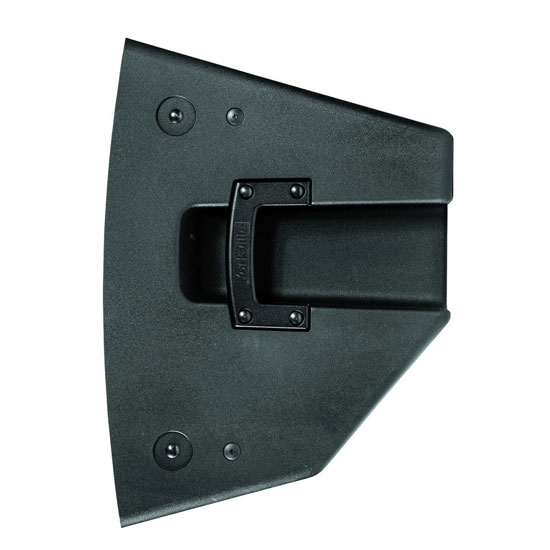

• Bar Handles: 2 (1 Side, 1 Top)
• Flying Hardware: EYEBOLT1/4A
• Pole Mount Adapter: 1 (Bottom)
• Enclosure Materials: ABS
• Baffle Material: ABS
• Grille: Perforated Metal
• Dimensions (D x W x H): 14.2" x 20.5" x 30.75" (36.1 x 52.1 x 78.1 cm)
• Weight: 65 lbs / 29.5 kg
