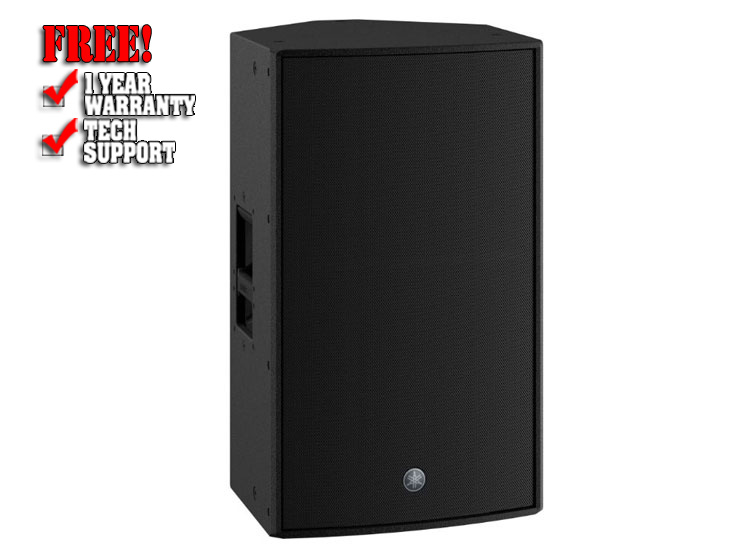

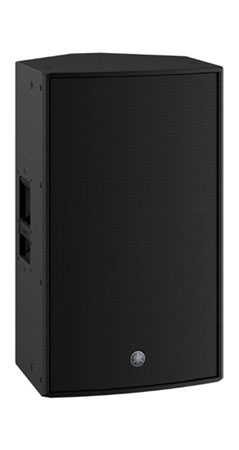

Yamaha DZR15-D 2000W 15" Powered Speaker with Dante

Power, Performance, and Easy System Integration

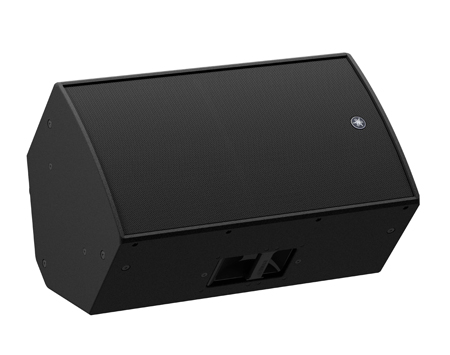

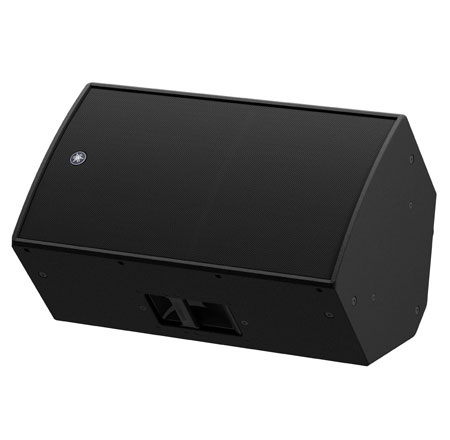

The Yamaha DZR15-D offers superb clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker boasts a high-power 2,000-watt Class D amplifier and a 34Hz-20kHz frequency range, and it can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while an intuitive LCD display makes dialing in your settings a piece of cake. Built-in Dante capabilities enable smart system integration with Yamaha consoles and other Dante devices. The DZR15-D also operates effectively as a stage monitor. The DZR15-D employs a lightweight yet durable plywood cabinet with a premium-grade polyurea coating.

Sophisticated DSP processing

Yamaha's D-XSUB LF processing gives you total command of your low end. Choose between a NORMAL mode that offers balanced low-frequency response and a BOOST mode that provides tighter, more focused bass with extra punch. Beyond that, XTENDED LF mode drops your low-end even lower, yielding chest-thumping low-frequencies that must be heard to be believed. Ensure a clean stage monitoring environment, thanks to the DXS15XLF's Cardioid Mode, which effectively decreases the sound pressure onstage while increasing the low-frequency output directed towards your audience. Despite all this powerful DSP, the DXS15XLF remains easy to use, thanks to optimized factory presets and an intuitive LCD screen.

Custom-designed transducer

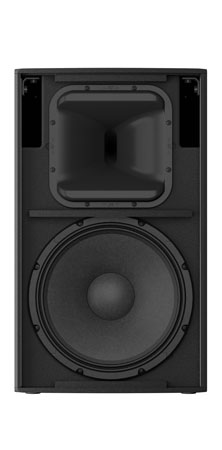

The Yamaha DZR15-D is loaded with great-sounding, custom-designed transducers. Its high-frequency transducer includes a 2-inch voice coil and 1-inch throat compression driver, a titanium diaphragm, and neodymium magnet housed in a heat-resistant aluminum-cast frame. Its low-frequency transducer uses a large 3-inch voice coil, cast-aluminum frame, and powerful yet lightweight neodymium magnet to handle the chest-thumping low end that the DZR15-D delivers. The DZR15-D isn't just all about power, however. Its low-end response is tightly controlled, especially in the mid-bass and vocal range, assuring crystal-clear sound reproduction - even at cranked volumes.

Built-in Dante capabilities

Integrating the DZR15-D with Yamaha consoles and other Dante devices is a breeze. The DZR15-D features a built-in 2-in/2-out Dante interface, along with sample rate conversion, allowing 48kHz device compatibility. Benefit from simplified patching with Yamaha's CL/QL digital consoles from their I/O device display, while TF console users can select Quick Config for fast, easy setup. You can also combine the DZR15-D's Analog I/O with Dante I/O, supplying you with flexible routing and system configuration. Or use the Dante break-In and break-Out function to act as a simple I/O box. Beyond that, Yamaha's ProVisionare Control software for Windows and ProVisionare Touch for iPad are also Dante compatible, giving you added remote management of your system.

Smart, ultra-flexible design

The Yamaha DZR15-D integrates with any configuration, thanks to its ultra-flexible design. Its rotatable horn allows vertical or horizontal mounting. Benefit from a 90° x 60° dispersion from a vertical position. Enjoy smooth, level coverage, by virtue of the DZR15-D's constant directivity horn - its innovative design minimizes the roll-off that conventional horns often produce.

High-power Class D amplifier

Loaded with 2,000 watts of Class D power, the DZR15-D is a beast. It delivers an impressive 139dB SPL, so go ahead and crank it up - the DZR15-D can take it. Enjoy maximum power, along with stable, worry-free operation, thanks to a universal switching-mode power supply. Beyond that, this amp was optimized to match the DZR15-D's transducers, ensuring top-tier sound quality.

Yamaha DXS15XLF Features:

• 2-way powered loudspeaker with 2" HF and 15" LF drivers
• Boasts a high-power 2,000-watt Class D amplifier and 34Hz-20kHz frequency range
• Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
• D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
• FOH/Main and Monitor modes allow you to fine-tune your sound based on your application
• DSP protection safeguards your power supply, power amplifiers, and transducers against damage
• Optimized factory presets and intuitive LCD screen make operation easy
• Great-sounding, custom-designed transducers
• Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices
• Rotatable horn allows vertical or horizontal mounting
• 90° x 60° dispersion from a vertical position
• Constant directivity horn supplies smooth, level coverage without roll-off
• Universal switching-mode power supply offers maximum power, along with stable, worry-free operation
• Lightweight yet durable plywood cabinet with a premium-grade polyurea coating

Tech Specs

• Powered: Yes
• Power Configuration: Bi-amped
• Channels: 2
• LF Driver Size: 15" cone
• HF Driver Size: 1" throat compression driver
• LF Driver Power Amp: 1000W Class D (peak)
• HF Driver Power Amp: 1000W Class D (peak)
• Total Power: 2000W Class D (peak)
• Inputs: 2 x XLR-1/4" combo
• Outputs: 2 x XLR
• USB: 1 x Type A
• Other I/O: 2 x EtherCON (Dante)
• Frequency Range: 34Hz-20khz (-10 dB)
• Crossover Frequency: 1700 Hz
• Maximum Peak SPL: 139 dB SPL @ 1m
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 50 Degrees
• Signal Processing: EQ, Delay
• Enclosure Material: Plywood
• Mounting Options: Pole Mount with 1.37" socket, Floor Wedge, 12 x M10 Fly Points
• Power Source: Standard IEC AC cable
• Height: 30"
• Width: 17.7"
• Depth: 18.1"
• Weight: 55.6 lbs.
• Manufacturer Part Number: DZR15-D
