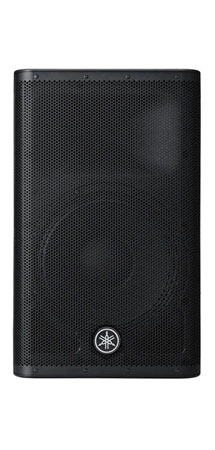

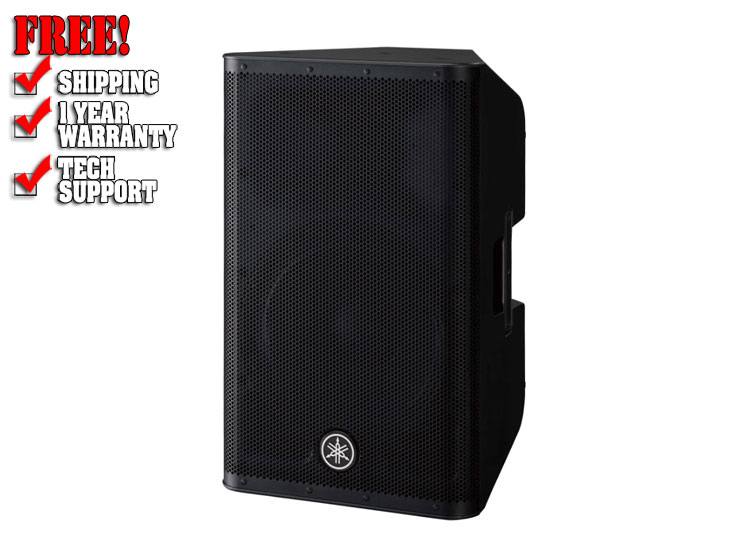

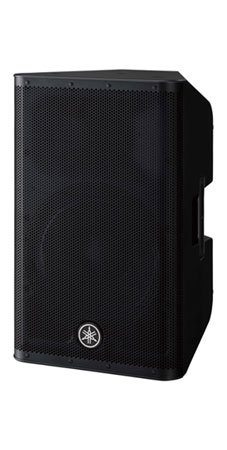

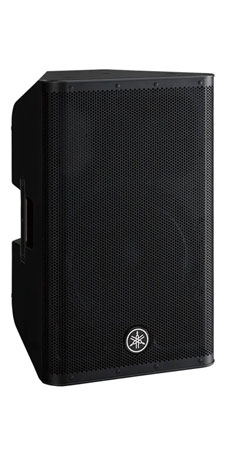

Yamaha DXR12MKII Speaker 12" 2-way Powered Loudspeaker

The DXR mkII Series is comprised of four full-range models perfectly suited for front-of-house sound, monitors, simple amplification, rigged applications and more. Combining the series with our DXS subwoofers will further elevate your system's performance, giving you versatile control of its thunderous bottom end. With the perfect balance of raw power and innovative speaker technologies, you can depend on DXR mkII Series speakers to deliver the full power of your performance to every member of your audience.

Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs

Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals. Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR Series mkII is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you've come to expect from the DXR Series.

Less Weight, More Power

Custom-Designed Transducers improved : All DXR mkII Series transducers were meticulously selected and thoroughly customized to deliver ultimate performance. The high power output woofers deliver very low distortion and defined, deep bass, while the newly equipped larger, yet much ligher 1.75" Neodymium precision HF compression drivers produce accurate midrange and high frequencies up to 20 kHz with less weight.

Wide Dispersion Constant Directivity Horn: The larger HF transducer is mounted to an all-new 90° x 60° constant directivity horn, designed with the goal of minimizing radiation pattern deterioration in oblique directions as more conventional horns are prone to doing. This can help to achieve a more ideal coverage area without irregularities. With the new wide dispersion constant directivity horn, sound expands in a more rectangular pattern providing 90° horizontal x 60 ° vertical coverage, with wide-frequency sound projected to the edges of the coverage area.

General specifications

• Speaker type: 12" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 52Hz - 20kHz
• Nominal coverage: H 90° - V 60°
• Components
• LF Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite
• HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
• Crossover: FIR-X tuning™ (linear phase FIR filter)
• Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis): 134dB SPL

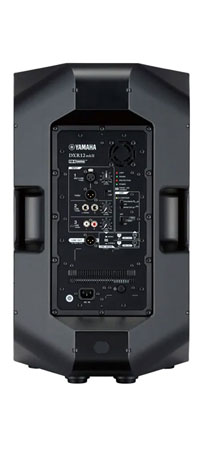

• I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
• Processors: D-CONTOUR :FOH / MAIN, MONITOR, OFF
• Power requirements: 100V - 240V, 50Hz/60Hz
• Power consumption: 110W
• Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
• Pole socket: 35mm with 2-way features (0 or 7 degrees)
• Dimensions W 362mm (14 2/8")
• H 601mm (23 5/8")
• D 350mm (13 6/8")
• Net weight: 18.6kg (41.0lbs)
• Accessories: UB-DXR12 (U-bracket)
• Others Material: ABS (Matte Finish, Black)
