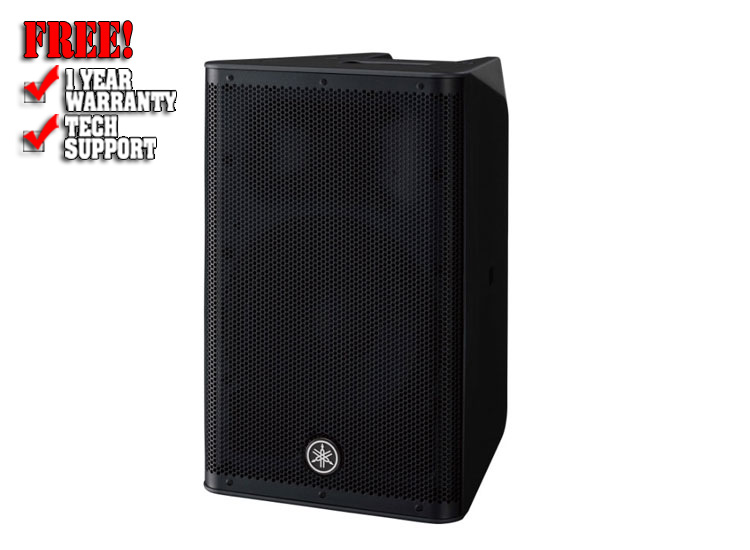

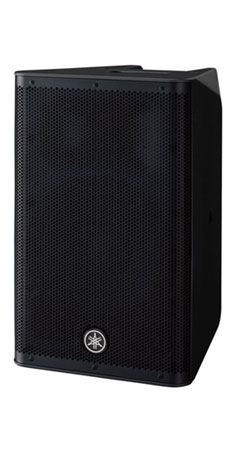

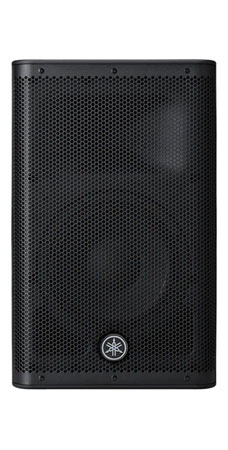

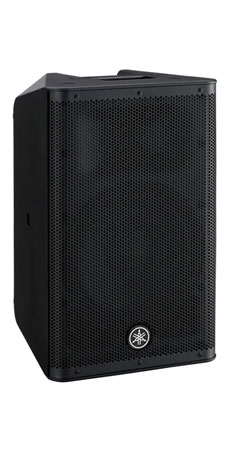

Yamaha DXR10mkII 10-inch 1100W Powered Speaker

Description:

Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII's compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.

Yamaha DXR10mkII 10-inch 1100W Powered Speaker Features:

Louder, Lighter, Legendary

Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs

Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals. Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR Series mkII is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you've come to expect from the DXR Series.

Less Weight, More Power

Custom-Designed Transducers improved : All DXR mkII Series transducers were meticulously selected and thoroughly customized to deliver ultimate performance. The high power output woofers deliver very low distortion and defined, deep bass, while the newly equipped larger, yet much ligher 1.75" Neodymium precision HF compression drivers produce accurate midrange and high frequencies up to 20 kHz with less weight.

Wide Dispersion Constant Directivity Horn: The larger HF transducer is mounted to an all-new 90° x 60° constant directivity horn, designed with the goal of minimizing radiation pattern deterioration in oblique directions as more conventional horns are prone to doing. This can help to achieve a more ideal coverage area without irregularities. With the new wide dispersion constant directivity horn, sound expands in a more rectangular pattern providing 90° horizontal x 60 ° vertical coverage, with wide-frequency sound projected to the edges of the coverage area.

Yamaha DXR10mkII 10-inch 1100W Powered Speaker specifications

• Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 56Hz - 20kHz
• Nominal coverage: H 90° - V 60°
• Components
• LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
• HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
• Crossover: FIR-X tuning™ (linear phase FIR filter)
• Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis): 132dB SPL

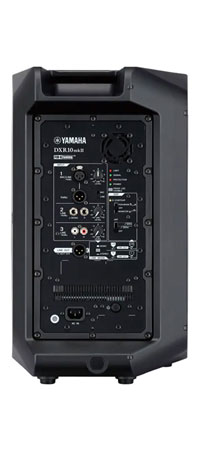

• I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
• Processors: D-CONTOUR :FOH / MAIN, MONITOR, OFF
• Power requirements: 100V - 240V, 50Hz/60Hz
• Power consumption: 90W
• Flying and mounting hardware: Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
• Pole socket: 35mm with 2-way features (0 or 7 degrees)
• Dimensions W 305mm (12")
• H 502mm (19 6/8")
• D 310mm (12 2/8")
• Net weight: 13.9kg (30.6lbs)
• Accessories: UB-DXR10 (U-bracket)
• Others Material: ABS (Matte Finish, Black)

Most Popular Accessories & Related Items

<

Yamaha DXR8mkII

$769.99

Yamaha DXR12mkII

$909.99

Yamaha DXR15mkII

$1019.99

Yamaha Speaker Bags

>

Frequently Asked Questions (FAQ)

What is the Yamaha DXR10mkII used for?

The Yamaha DXR10mkII is a professional 10-inch powered speaker used for DJs, live performances, weddings, events, and portable PA systems.

How powerful is the Yamaha DXR10mkII?

It delivers 1100W of Class-D power with high output sound, making it suitable for small to medium venues with clear and strong audio performance.

Can the Yamaha DXR10mkII be used outdoors?

Yes, it performs well for outdoor events when properly set up, making it ideal for mobile DJs and portable sound systems.

Does the Yamaha DXR10mkII need an amplifier?

No, it is an active powered speaker with a built-in amplifier, so no external amp is required.

What size is the Yamaha DXR10mkII speaker?

It features a 10-inch woofer in a compact cabinet design, making it easy to transport and set up for events.

Why choose the Yamaha DXR10mkII over other speakers?

The Yamaha DXR10mkII offers professional sound quality, high power output, and durable build quality, making it a trusted choice for audio professionals and DJs.
