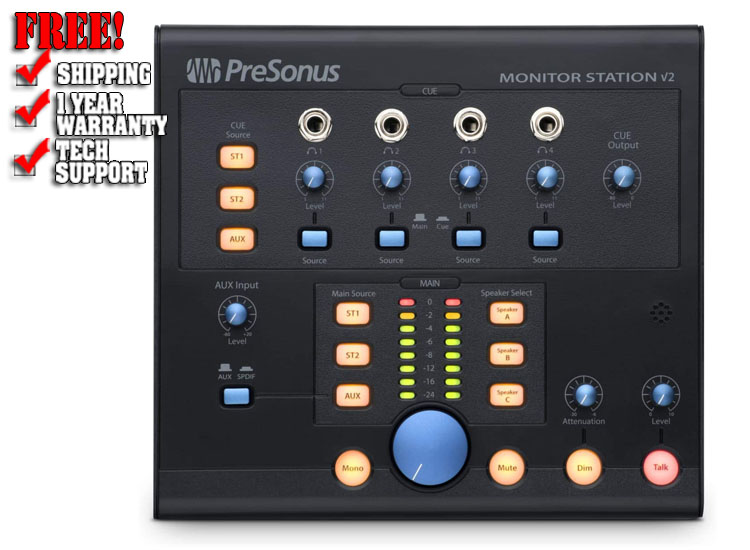

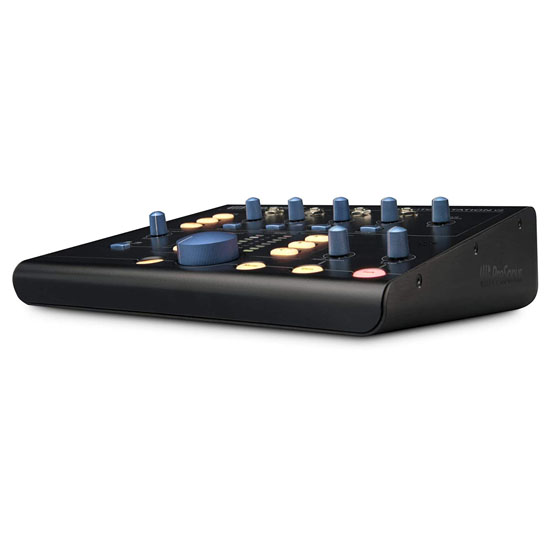

PreSonus Monitor Station V2 Desktop Studio Control Center

Description

The Monitor Station V2 from PreSonus is a desktop studio control center that allows you to switch between three sets of studio monitors and three input sources. It also features a built-in headphone amplifier with four 1/4" headphone outputs, each with dedicated level control. These features make the Monitor Station V2 suitable for a variety of recording, monitoring and mixing applications.

For communicating with the talent, the Monitor Station V2 is equipped with a built-in electret-condenser talkback microphone with input-gain control and talkback button. It has a large main level control knob, dedicated buttons for input and speaker selection, and 8-segment color LED input meters for visual monitoring.

Features:

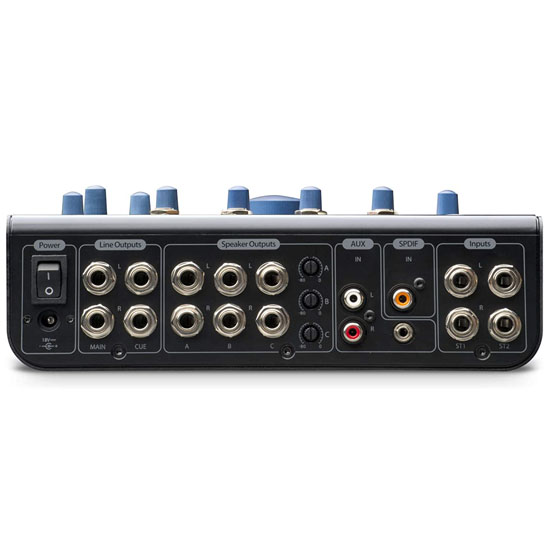

• Inputs and Outputs:
  • 2x stereo pairs of 1/4" TRS inputs
  • 1x stereo pair of RCA Aux inputs
  • 1x stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
  • 3x stereo pairs of 1/4" TRS speaker outputs with level controls
  • 1x stereo pair of 1/4" TRS main outputs
  • 1x stereo pair of 1/4" TRS cue outputs
  • 4x 1/4" TRS stereo headphone outputs

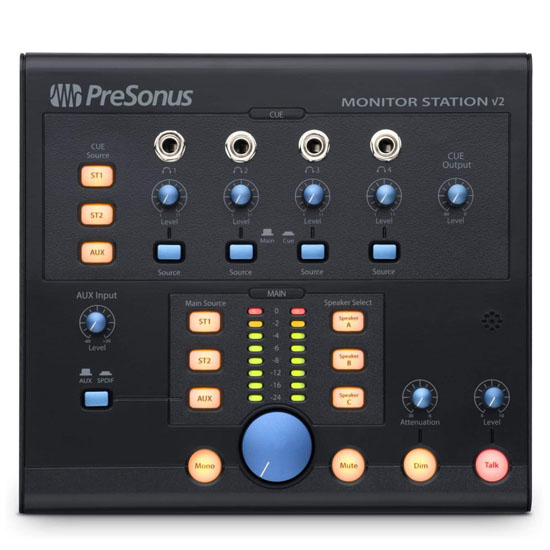

• Controls
  • Large main level control
  • 3x individual main source (ST1, ST2, Aux) select switches
  • 3x individual speaker select switches
  • Cue section with source select (ST1, ST2, Aux) and output-level control
  • Aux-S/PDIF select switch
  • Aux input level control
  • Main mute, Mono, and Dim switches with variable Dim attenuation
• Additional Features
  • 8-segment color LED input meters with selectable reference level
  • Built-in electret-condenser talkback microphone with input-gain control and talkback button
  • Convenient desktop design

Specification

• Input Channels: 8
• Output Channels: 8
• Analog Inputs: 2 x TRS, 1 x RCA
• Analog Outputs: 6 x TRS (Speaker), 2 x TRS (Main), 2 x TRS (Cue), 4 x 1/4" (Headphones)
• Digital Inputs: 1 x S/PDIF
• Talkback: Yes
• Form Factor: Desktop
• Height: 2.5"
• Width: 9"
• Depth: 8.5"
• Weight: 6 lbs.
