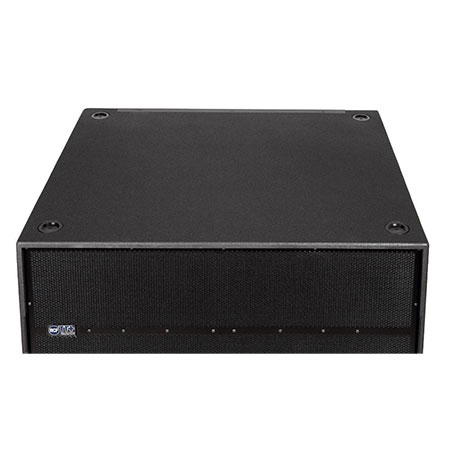

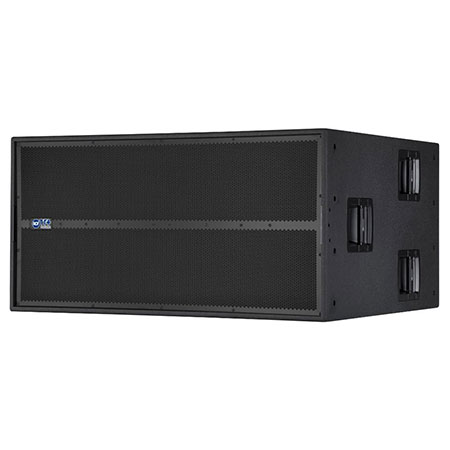

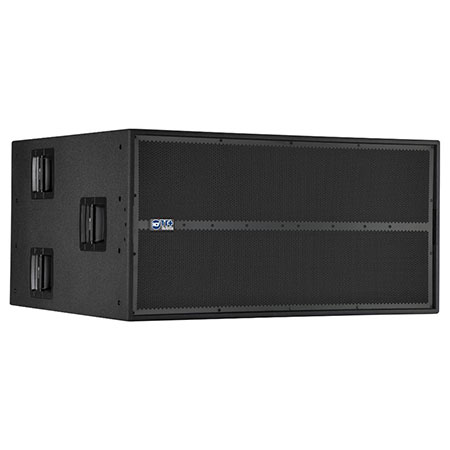

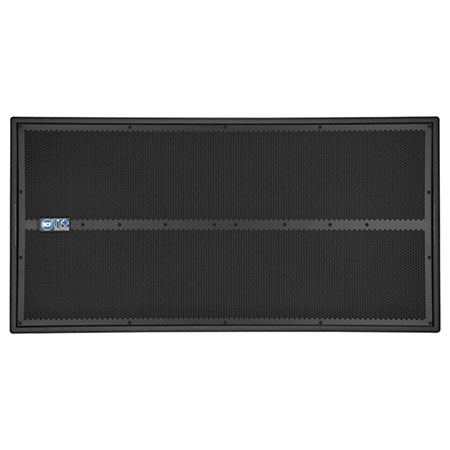

RCF TTS56-A

Double 21 Inch Powered Subwoofer

The RCF TTS56-A is a high power, high output active subwoofer system that sets a new standard in the touring sound reinforcement. The new 21" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology. The integration of the 6800 W, two channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features

• 2 x 3400 W digital amplifiers
• 2 x 21" high power neodymium woofers
• 96 kHz, 32 bit DSP processing
• Remote monitoring and control
• Time delay alignment
• Cardioid preset for groups
• Tour grade cabinet
• RDNet on board
• Maximum output per size on market

Specification

Acoustical specifications

• FREQUENCY RESPONSE: 30 Hz - 100 Hz
• MAX SPL @ 1M: 145 dB

Transducers

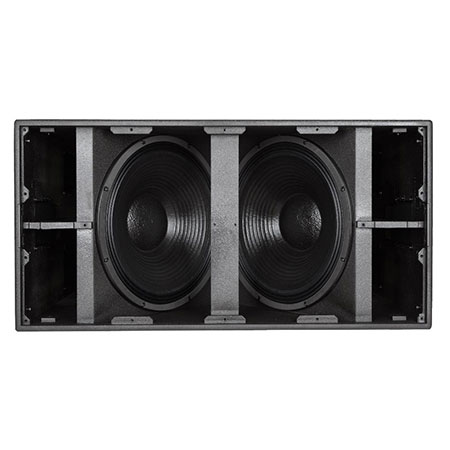

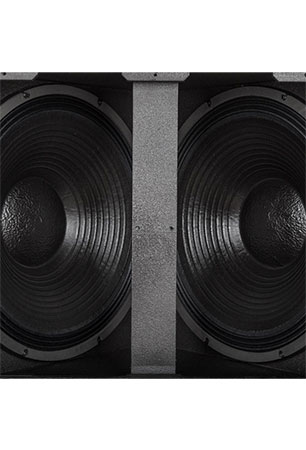

• WOOFER: 2 x 21'' neo, 4.5'' v.c

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, RDNet Ethercon
• OUTPUT CONNECTORS: XLR, RDNet Ethercon
• INPUT SENSITIVITY: -2 dBu/+10 dBu

Processor section

• HI-PASS FREQUENCIES: 30-45 Hz
• LOW-PASS FREQUENCIES: 60-90 Hz
• PROTECTIONS: Thermal, Excurs., RMS
• LIMITER: Soft Limiter
• CONTROLS: DSP Controlled
• RDNET: Yes

Power section

• TOTAL POWER: 13600 W Peak, 6800 W RMS
• LOW FREQUENCIES: 13600 W Peak, 6800 W RMS
• COOLING: Convection/Forced
• CONNECTIONS: Powercon IN/OUT

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: Baltic birch plywood

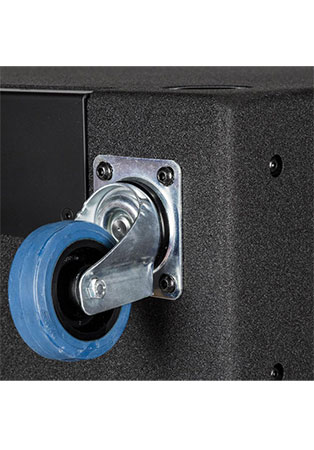

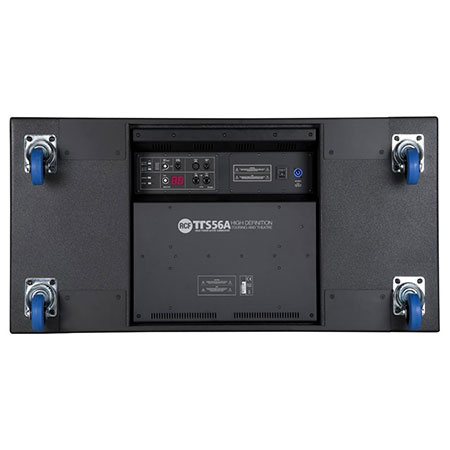

• HARDWARE: 2 x steel bar fork - lift transportation, 4 x 100 mm wheels

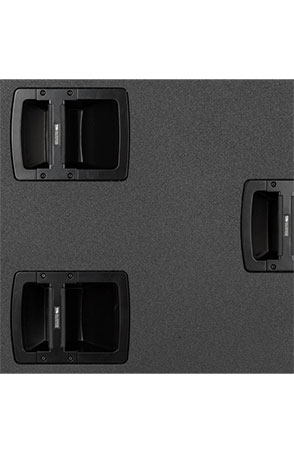

• HANDLES: 6 side
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 590 mm / 23.23 inches
• WIDTH: 1170 mm / 46.06 inches
• DEPTH: 988 mm / 38.9 inches
• WEIGHT: 122.8 kg / 270.73 lbs

Shipping informations

• PACKAGE HEIGHT: 1316 mm / 51.81 inches
• PACKAGE WIDTH: 800 mm / 31.5 inches
• PACKAGE DEPTH: 1200 mm / 47.24 inches
• PACKAGE WEIGHT: 178.2 kg / 392.86 lbs
