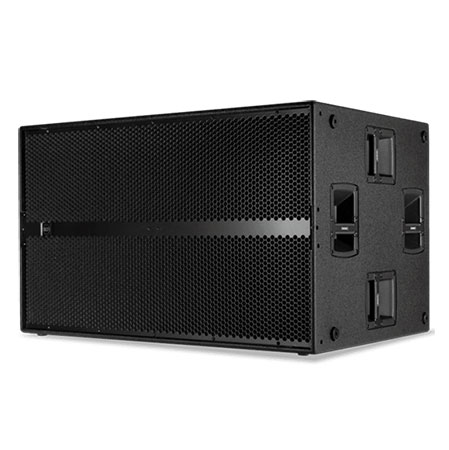

RCF SUB 9007-AS

The RCF SUB 9007-AS is one of the most powerful dual 21-inch subwoofers in the field of live sound. Featuring two, high power, hyper-vented 21" neodymium woofers with 4.0" inside-outside voice coils, this cabinet deliver a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9007-AS dual 21-inch subwoofer can perform in the most demanding situations. The housing of the SUB 9007-AS match the RCF D-Line HDL 50 and HDL 20 array systems, enabling stacked systems matched a perfect combination.

Features:

• 7200 Watt Peak power - 3600 Watt RMS.
• 143 dB max SPL.
• 25 Hz - 120 Hz frequency response.
• 2 x 21" Woofer.
• DSP controlled Input section with selectable presets.
• Delay control.
• Integrated mechanics for multiple configurations with HDL50-A, HDL20-A, HDL10-A.
• RDNet remote and control.
• Baltic birch tour grade cabinet.

RCF SUB 9007-AS Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Club sound, DJs.

Specification:

Acoustical Specifications

• Frequency Response 20 Hz ÷ 400 Hz
• Max SPL: 141 dB
• Woofer: 2 x 21", 4.0" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: +4 dBu

Processor Section

• Crossover frequencies: Selectable Hz
• Protections: Thermal, RMS
• Limiter: Fast limiter
• Controls: Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardioid

Amplifier Specifications

• Total power: 7200 W PEAK
• Low frequencies: 7200 W PEAK
• Total power: 3600 W RMS
• Low frequencies: 3600 W RMS
• Cooling: Convection
• Connections: Powercon in/out, RDNet connectors

Cabinet

• Cabinet Material: Baltic Birch
• Hardware: Mounting points, 2 x M20
• Handles: 8 side
• Colour: Black

Physical Specifications

• Height: 708 / 27.89 mm/inch
• Width: 1188 / 46.77 mm/inch
• Depth: 780 / 30.9 mm/inch
• Net Weight: 98 / 216.0 kg/lbs
