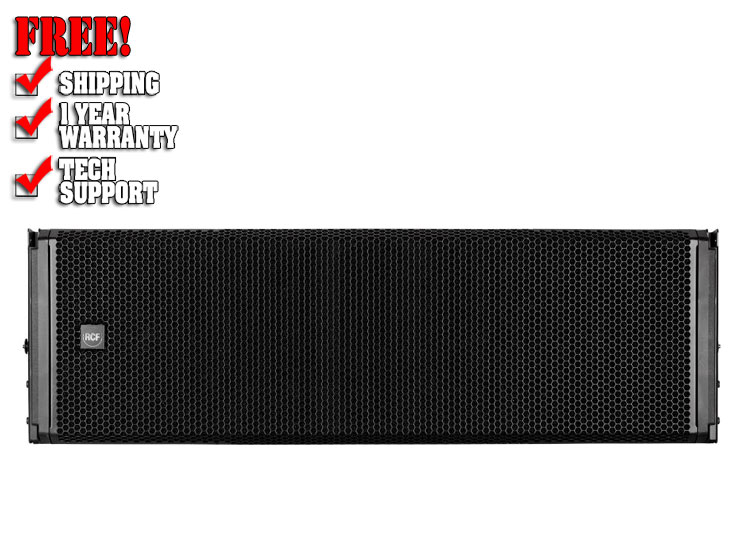

RCF HDL-50A

The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2x12" woofers, 4x symmetrical 6.5" midranges and two 2" drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement. Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying.

Features

• 4400 Watt, 3 way amplification
• 140 dB max SPL
• 8 x high power neodymium transducers
• 48 kHz, 32 bit DSP processing
• RDNet on board
• Remote monitoring and control
• Symmetrical design
• Extremely low weight

Specification

• Frequency Response (- 3 dB) 3 40 Hz to 20 kHz
• Maximum SPL 140 dB
• Coverage Angle Horizontal: 90°
• Vertical: 10°
• Compression Driver 2 x 1.4" (3.6 cm) neo, 3" (7.6 cm) v.c.

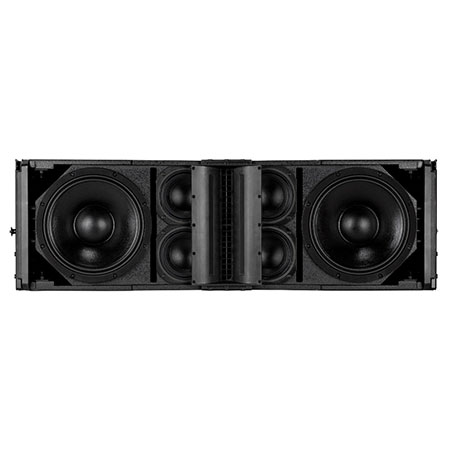

• Woofer 2 x 12" (30.5 cm) neo, 3" (7.6 cm) v.c.
• Midrange 4 x 6" (15.2 cm) neo, 2" (5 cm) v.c.
• Input Signal Balanced/unbalanced
• Input Connectors XLR male, RDNET
• Output Connectors XLR female, RDNET
• Input Sensitivity 4 dBu
• Crossover Frequencies 200-800 Hz
• Protection Level Thermal, RMS
• Limiter Soft limiter
• Controls Cluster size, HF correction, RDNET
• Peak Power Total Power: 4400 W
• High Frequencies: 1100 W
• Mid Frequencies: 1100 W
• Low Frequencies: 2200 W
• RMS Power Total Power: 2200 W
• High Frequencies: 550 W
• Mid Frequencies: 550 W
• Low Frequencies: 1100 W
• Cooling Convection
• Connections PowerCON in/out
• Cabinet Construction Baltic Birch
• Dimensions 14.4 x 46.1 x 19.8" (36.6 x 117.1 x 50.2 cm)
• Weight 123.5 lb (56 kg)
