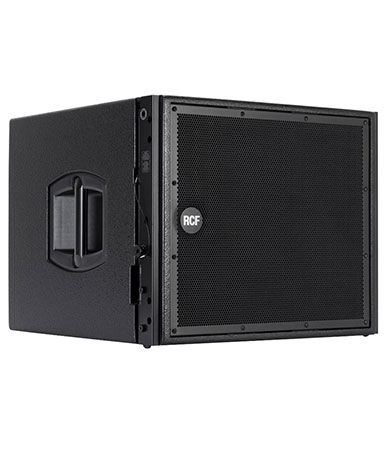

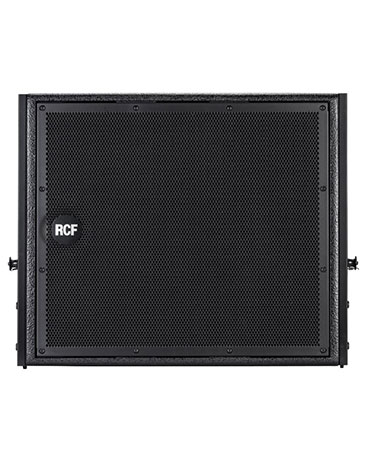

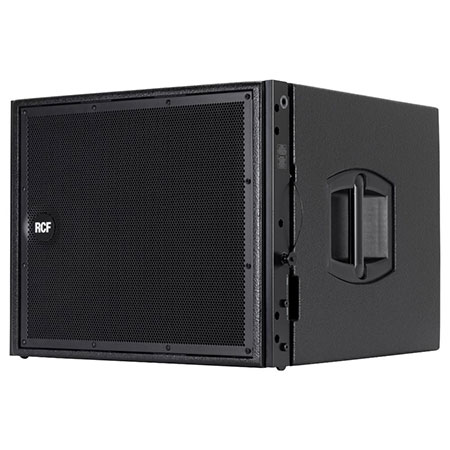

RCF HDL 15-AS

15 Inch Flyable Powered Subwoofer

The RCF HDL15-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 10-A flown array. The bass reflex design guarantees a deep, linear power response while the 3.5” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 10-A array module.

Features

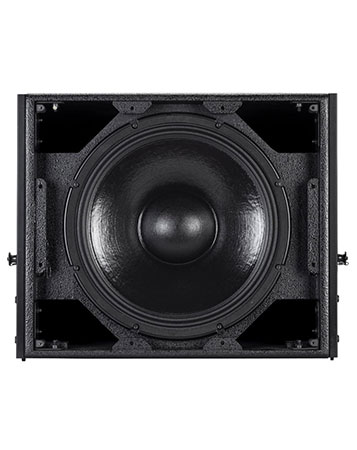

• 15" woofer and 3.5" voice coil
• 2000W Peak power - 1000W RMS
• DSP controlled input section with selectable presets

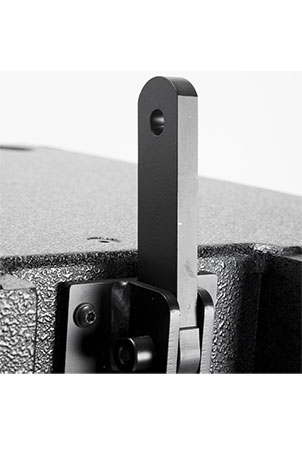

• Tour-grade safe and solid variable mechanics, compatible with HDL 10-A flown array
• Designed to complement the HDL 10-A speaker system
• Baltic birch tour-grade cabinet, with two side handles and wheels for easy transportation

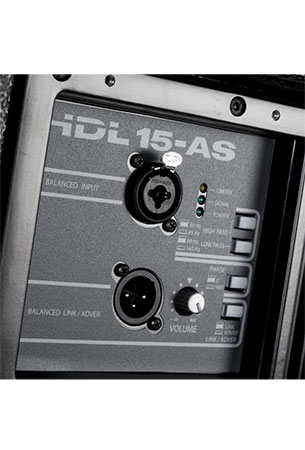

• Xover selector, phase switch and high pass outputs
• Electronic equalization, soft limiter and protection

Specification

• Frequency Response 40 - 140 Hz @ -3 dB
• Maximum Sound Pressure Level (SPL) 133 dB
• Subwoofer Drivers Woofer: 15", neodymium
• Voice Coil: 3.5"
• Connectors XLR, input/output
• Input Sensitivity -2 dBu / +4 dBu
• Total Power 2000 W Peak, 1000 W RMS
• Protections Thermal, RMS
• Limiter Soft limiter
• Controls Volume
• EQ shape
• Link/Xover switch
• Power switch
• Phase switch
• Indicator LEDs LED green, power
• LED green, signal
• LED orange/red, limiter
• Material Baltic birch
• Hardware Rigging flyware
• M20 insert
• Handles 2
• Cooling Convection / forced
• Power Supply 1000 W switching
• Connection VDE connector IN
• Dimensions 18.0 x 21.9 x 22.4" (45.8 x 55.5 x 56.9 cm)
• Weight 86 lb (39.0 kg)

What's Included:

• RCF HDL 15-AS Active Flyable High Power Subwoofer
• AC Power Cord
• Limited 3-Year Warranty
