RCF HDL 12-AS

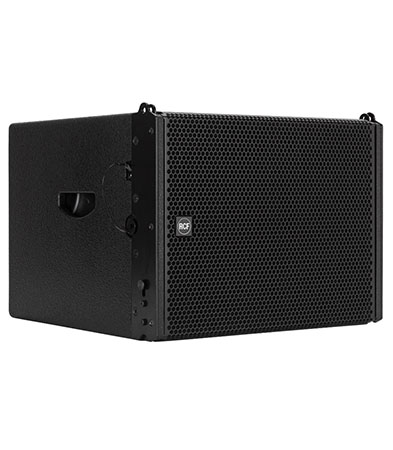

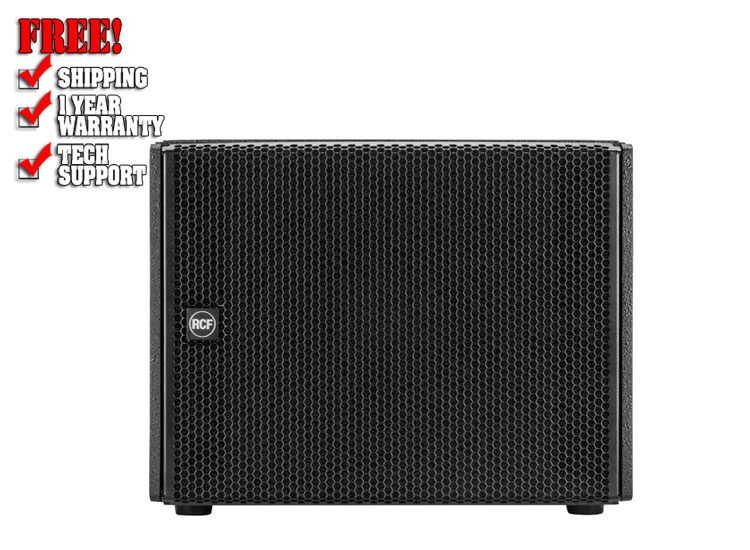

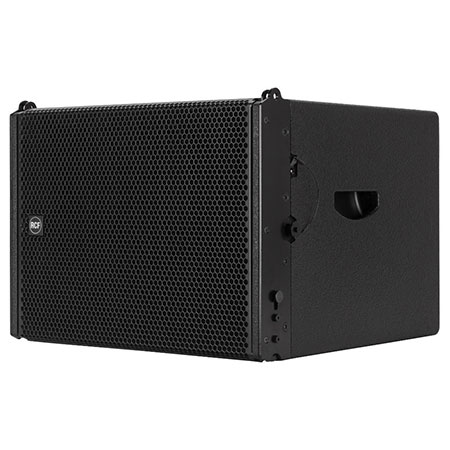

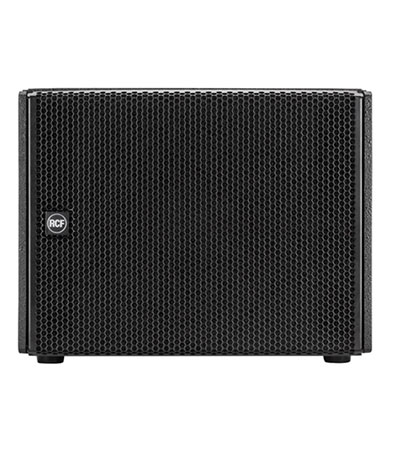

The RCF HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12" woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.

Features:

• 1400 Watt Peak power - 700 Watt RMS.
• 131 dB max SPL.
• 80 Hz - 110 Hz frequency response.
• 1 x 12" Woofer.
• Stereo crossover.
• Switchable crossover frequencies.
• Designed to compliment the HDL 6-A speaker system.
• Polarity reverse switch.

Applications:

• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• A/V presentation

Specification:

Acoustical Specifications

• Frequency Response -3 dB: 80 Hz ÷ 110 Hz
• Max SPL: 131 dB

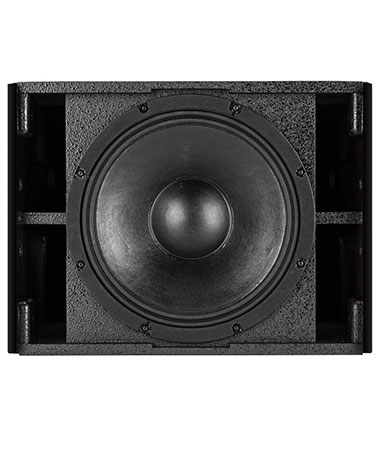

• Woofer: 12", 3.0" v.c.

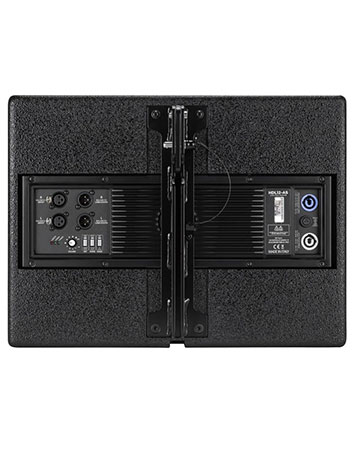

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Volume, EQ shape, Xover

Amplifier Specifications

• Total power: 1400 W PEAK; Low frequencies: 1400 W PEAK
• Total power: 700 W RMS; Low frequencies: 700 W RMS
• Cooling: Convection/forced
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Baltic Birch
• Hardware: Rigging flyware
• Handles: 2 side
• Colour: Black

Physical Specifications

• Height: 379 / 14.9 mm/inch
• Width: 470 / 18.5 mm/inch
• Depth: 508 / 20 mm/inch
• Net Weight: 24 / 50.9 kg/lbs
