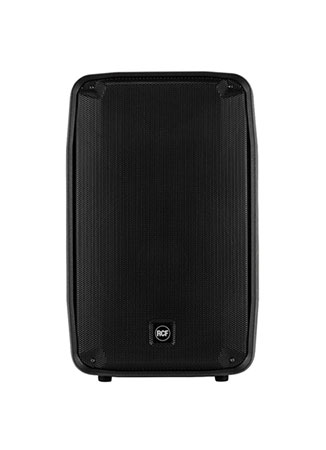

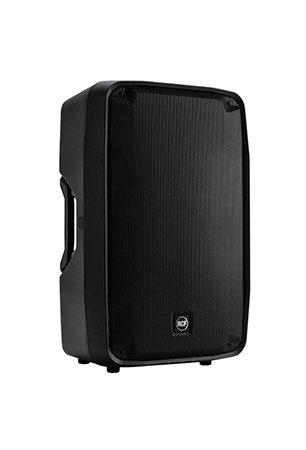

RCF HDL 10-A

Active 1400W 2-way 15 Inch Powered Speaker, The Best in It's Class

The RCF HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15" high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.

Features

• 130 dB Max SPL
• 1400 Watts 2-way peak power
• DSP Processing with FiRPHASE
• 1.0" Compression Driver, 1.75° v.c.
• 15" Woofer, high power
• Lightweight Composite Cabinet
• 90°x60°, wide dispersion constant directivity horn
• Silent Fanless Class-D Amplifier

Specifications:

Acoustical specifications

• FREQUENCY RESPONSE: 45 Hz - 20000 Hz
• MAX SPL @ 1M: 130 dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 60°

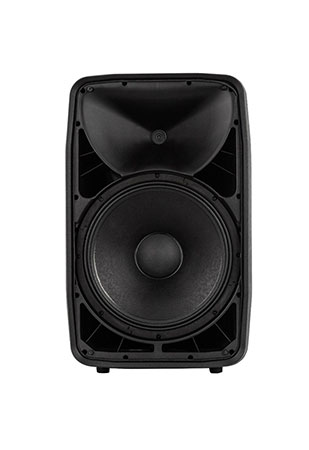

Transducers

• COMPRESSION DRIVER: 1.0'', 1.75'' v.c
• WOOFER: 15'', 2.5'' v.c

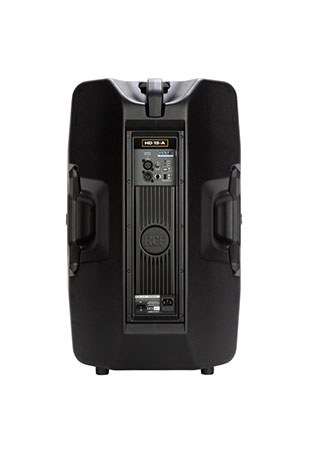

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu
• MIC. INPUT SENSITIVITY: -32 dBu

Processor section

• CROSSOVER FREQUENCIES: 1800 Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Volume, Boost, Mic/Line

Power section

• TOTAL POWER: 1400 W Peak, 700 W RMS
• HIGH FREQUENCIES: 400 W Peak, 200 W RMS
• LOW FREQUENCIES: 1000 W Peak, 500 W RMS
• COOLING: Convection
• CONNECTIONS: VDE

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: PP Composite
• HARDWARE: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
• HANDLES: 1 Top, 2 Side
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 714 mm / 28.11 inches
• WIDTH: 442 mm / 17.4 inches
• DEPTH: 397 mm / 15.63 inches
• WEIGHT: 22 kg / 48.5 lbs

Shipping informations

• PACKAGE HEIGHT: 700 mm / 27.56 inches
• PACKAGE WIDTH: 450 mm / 17.72 inches
• PACKAGE DEPTH: 500 mm / 19.69 inches
• PACKAGE WEIGHT: 24.5 kg / 54.01 lbs
