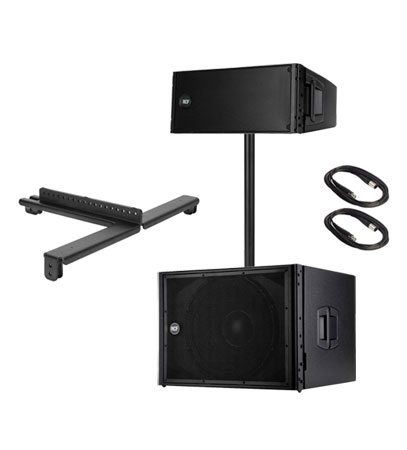

HDL 20-A with Sub

Fully Integrated System

The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

HDL 20-A Features:

• 1400 Watt Peak power - 700 Watt RMS.
• 135 dB max SPL.
• 55 Hz 20 kHz frequency response.
• 2 x 10" Woofers.
• 1 x 3" Compression Driver.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics.
• Composite PP enclosure structurally wooden reinforced.

SUB 702-AS II Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

RCF HDL 18-AS Active Flyable High Power Subwoofer

The HDL18-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4" voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.

HDL 18-AS Features:

• 2000 Watt Peak power - 1000 Watt RMS.
• 135 dB max SPL.
• 30 Hz - 140 Hz frequency response.
• 1 x 18" Woofer.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics, compatible with HDL 20-A.
• to compliment the HDL 20-A speaker system.
• Baltic birch tour grade cabinet.

18-AS Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theatre.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• A/V presentation.

RCF Suspending Bar For HDL 20-A Line Array System [FB-HDL20-LIGHT]

Light Suspending flybar for up to 4 HDL20. includes pole mount adaptor.

• To suspend up to 16 HDL 20-A modules.
• Strong steel construction.
• Applications:
• HDL 20-A clusters.
• Touring.
• Live events.
• Fixed installations.

RCF Pole Mount Kit for NX L24-A with M20 Thread

Pole mount accessory for stacking 1 x NXL24 on SUB 8004-AS (or M20 pole mount).

American DJ XL-25 25' XLR to XLR Cable

• 25-Foot XLR male to XLR female cable.

RCF HDL 20-A Specifications

Acoustical Specifications

• Frequency Response -3 dB: 55 Hz ÷ 20000 Hz
• Max SPL: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°
• Compression Driver: 2", 3.0" v.c.
• Woofer: 2 x 10", 2.5" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Crossover frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Composite PP, wooden reinforced
• Hardware: Rigging flyware
• Handles: 2 side, 2 back
• Colour: Black

Physical Specifications

• Height: 294 / 11.5 mm/inch
• Width: 705 / 27.7 mm/inch
• Depth: 445 / 17.5 mm/inch
• Net Weight: 29 / 63.93 kg/lbs

RCF HDL 18-AS Specifications

Acoustical Specifications

• Frequency Response -3 dB: 30 Hz ÷ 140 Hz
• Max SPL: 135 dB
• Woofer: 18", 4.0" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Volume, EQ shape, Xover

Amplifier Specifications

• Total power: 2000 W PEAK
• Low frequencies: 2000 W PEAK
• Total power: 1000 W RMS
• Low frequencies: 1000 W RMS
• Cooling: Convection/forced
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Baltic Birch
• Hardware: Rigging flyware, M20 insert
• Handles: 2 side
• Colour: Black

Physical Specifications

• Height: 511.5 / 20.1 mm/inch
• Width: 700 / 27.5 mm/inch
• Depth: 620 / 24.4 mm/inch
• Net Weight: 48.4 / 106.7 kg/lbs

What's in the Box:

This Package Includes:

• (1) RCF HDL 20-A Active Line Array Module Speaker
• (1) RCF HDL 18-AS Active Flyable High Power Subwoofer
• (1) RCF Suspending Bar For HDL 20-A Line Array System [FB-HDL20-LIGHT]
• (1) RCF Pole Mount Kit for NX L24-A with M20 Thread [AC-FLYLINK-NXL24]
• (2) American DJ XL-25 25' XLR to XLR Cables

The HDL 20-A Box Includes:

• (1) RCF HDL 20-A Active Line Array Module Speaker
• (1) PowerCON to Edison Power Cord
• (1) User manual

The HDL 18-AS Box Includes:

• (1) RCF HDL 18-AS Active Flyable High Power Subwoofer

The FB-HDL20-LIGHT Box Includes:

• (1) Stack bar
• (1) Pickup point included
• (1) Pole mount support included
• (7) pins included

The AC-FLYLINK-NXL24 Box Includes:

• (1) RCF Pole Mount Kit for NX L24-A with M20 Thread [AC-FLYLINK-NXL24]

The XL-25 Box Includes:

• (1) American DJ XL-25 25' XLR to XLR Cable
