QSC E15

Description

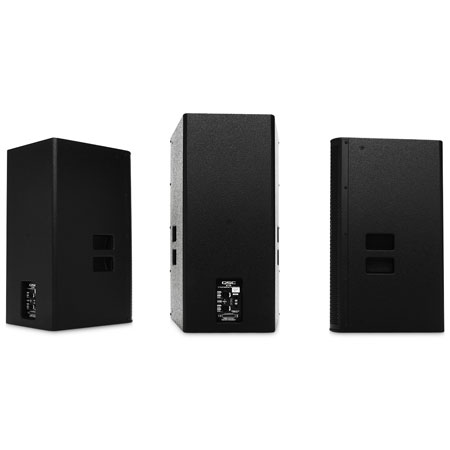

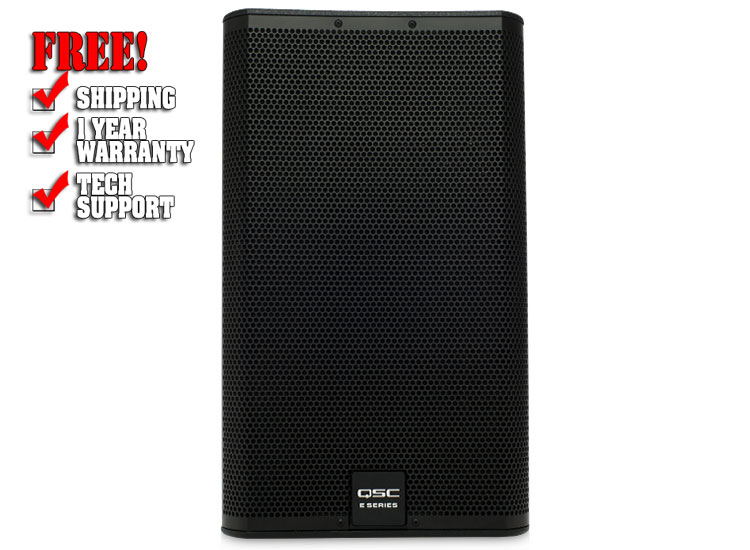

The E15 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8" compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.

E Series loudspeakers will perform very well with any quality, professional power amplifier but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

• High output, professional quality sound with E15 500 W continuous power
• E Series Entertainment System Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
• For PLD/CXD visit Amplifier Navigator Software
• For GXD visit the GXD Firmware Updater
• Titanium diaphragm for high fidelity and long life
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

• Model : E15
• Configuration : 1 x 15-inch, 2-way, non-powered
• Frequency Response (-6 dB) : 55Hz - 20kHz
• Frequency Range(-10 dB) : 43Hz - 20kHz
• Power capacity : continuous/peak : 500 W / 2000 W
• Sensitivity : 97 dB, 1 W @ 1 m
• Coverage Angle : 75° conical DMT
• Output1 (peak SPL @ 1 m) : 130 dB
• Drivers :
• LF : 381 mm (15-inch) driver with 89 mm (3.5-inch) voice coil
• HF : 38 mm (1.5-inch) exit, 71 mm (2.8-inch) voice coil, compression driver
• Nominal Impedance : 8Ω
• Cross-over : Full-range only 1.55 kHz
• Input connectors : 2 x NL4, 1 x barrier strip
• Enclosure : Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, Perforated, powder-coated steel grille with foam lining.
• Mounting and suspension :6 x M8 suspension points, dual angle, 35 mm pole-socket
• Net weight : 31 kg / 68 lbs
• Shipping weight : 34 kg / 75 lbs
• Dimensions :420 x 716 x 445 mm
• (WxHxD):16.5 x 28.2 x 17.5 in
