QSC E12

Description

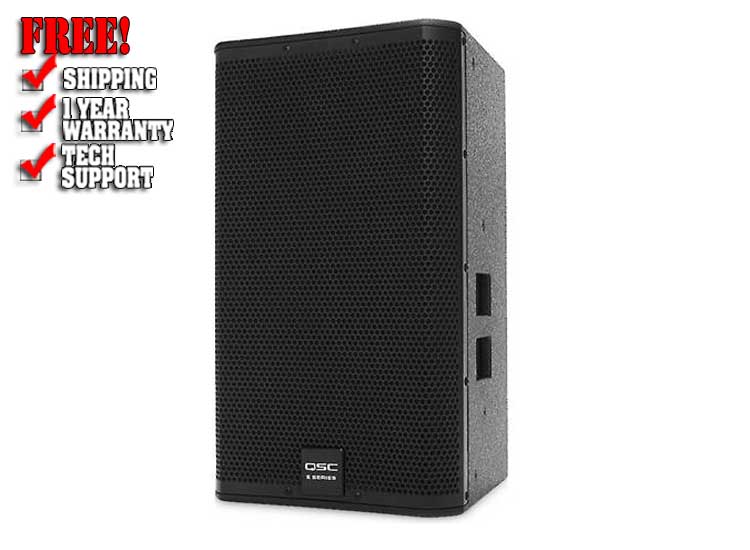

The E12 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.

E Series loudspeakers will perform very well with any quality, professional power amplifier but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

• High output, professional quality sound with 400 W continuous power
• E Series Entertainment System Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
• For PLD/CXD visit Amplifier Navigator Software
• For GXD visit the GXD Firmware Updater
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

• Model : E12
• Configuration : 1 x 12-inch, 2-way, non-powered
• Frequency Response (-6 dB) : 64Hz - 20kHz
• Frequency Range1 (-10 dB) : 46Hz - 20kHz
• Power capacity : continuous/peak : 400 W / 1600 W
• Sensitivity : 96 dB, 1 W @ 1 m
• Coverage Angle : 85° conical DMT
• Output1 (peak SPL @ 1m) : 128 dB
• Drivers :
• :
• LF : 305 mm (12-inch) driver with 76 mm (3-inch) voice coil
• :
• HF : 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
• Nominal Impedance : 8O
• Cross-over : Full range only, 1.8 kHz
• Input Connections : 2 x NL4, 1 x barrier strip

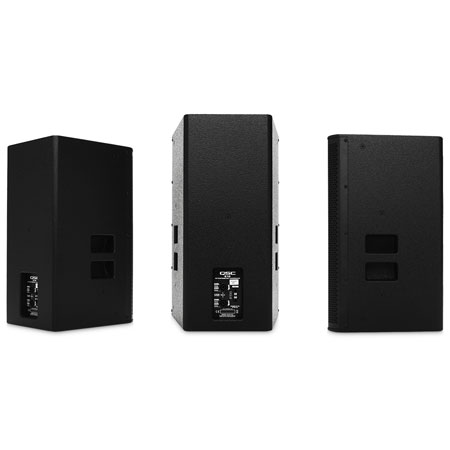

• Enclosure : Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
• Mounting and suspension : 6 x M8 suspension points, dual angle, 35 mm pole-socket
• Net Weight : 23 kg / 51 lbs
• Shipping Weight : 26 kg / 57.5 lbs
• Dimensions : 360 x 616 x 371 mm
• (WxHxD) : 14.2 x 24.2 x 14.6 in
