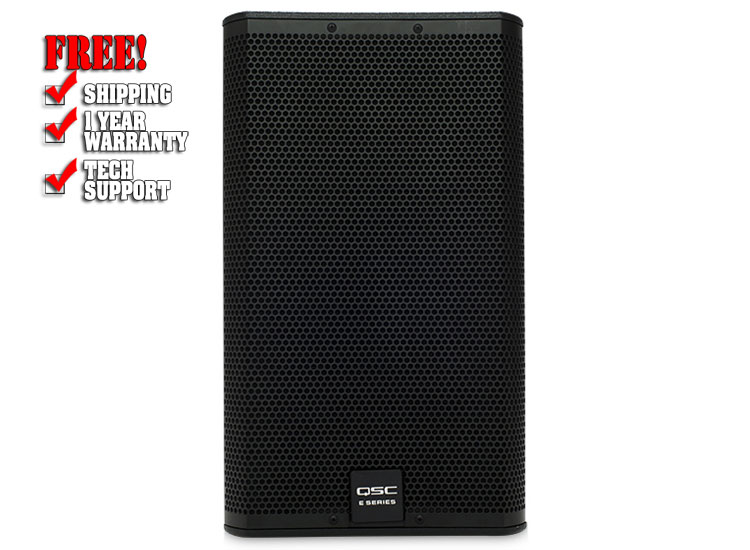

QSC E10

Description

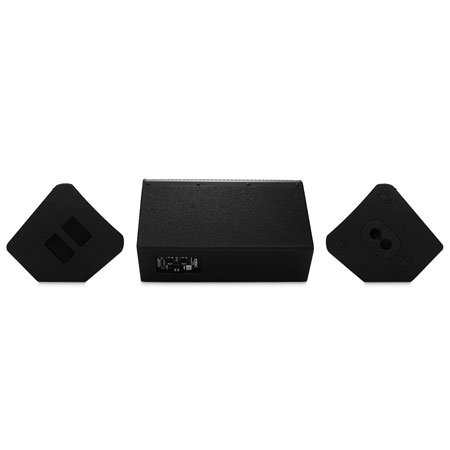

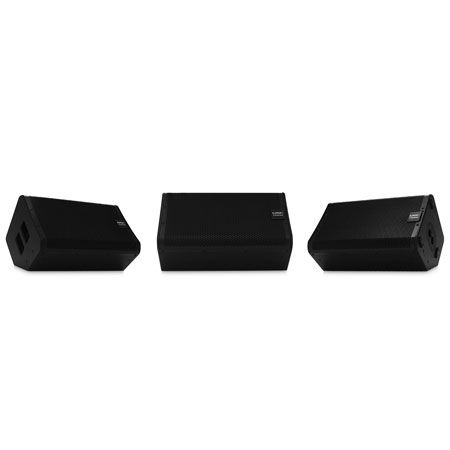

The E10 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that's at home in stage monitor or main PA deployment. It incorporates QSC's DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E10 is angled up at a 55°z angle allowing it to be placed near the performer when used on a crowded stage.

E Series loudspeakers will perform very well with any quality, professional power amplifier but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

• High output, professional quality sound with 300 W continuous power
• E Series Entertainment System Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
• For PLD/CXD visit Amplifier Navigator Software
• For GXD visit the GXD Firmware Updater
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill

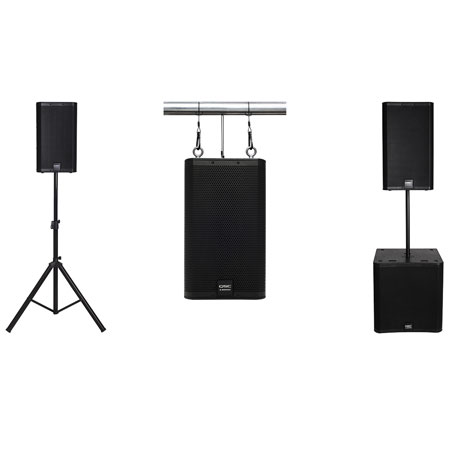

• Suitable for main PA and stage monitor
• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

• Model : E10
• Configuration : 1 x 10-inch, 2-way, non-powered
• Frequency Response (-6 dB) : 68Hz - 20kHz
• Frequency Range (-10 dB) : 50Hz - 20kHz
• Power capacity: continuous/peak : 300 W / 1200 W
• Sensitivity : 95 dB, 1 W @ 1 m
• Coverage Angle : 85° conical DMT
• Output1 (Peak SPL @ 1m) : 126 dB
• Drivers :
  • LF : 254 mm (10-inch) driver with 64 mm (2.5-inch) voice coil;
  • HF : 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
• Nominal Impedance : 8O
• Cross-over : Full-range only, 1.8 kHz

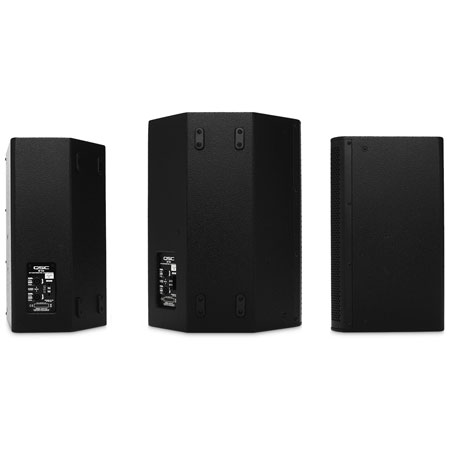

• Input Connections : 2 x NL4, 1 x barrier strip
• Enclosure : Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.
• Mounting and suspension : 6 x M8 suspension points, dual angle, 35 mm pole-socket
• Net weight : 20kg / 44lbs
• Shipping weight : 23kg / 50lbs
• Dimensions : 330 x 560 x 330 mm
• (WxHxD) : 13 x 22 x 13 in
