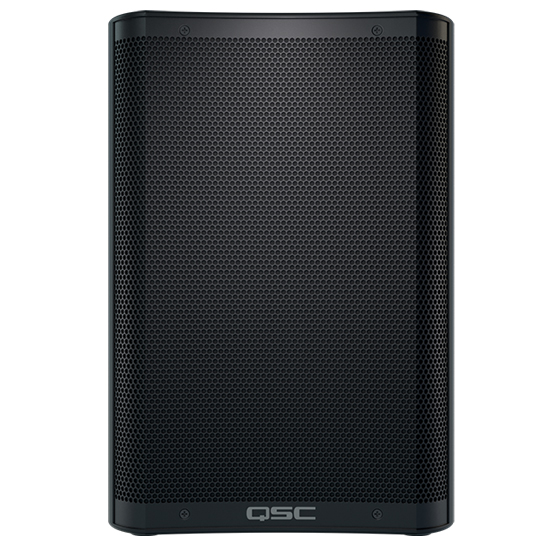

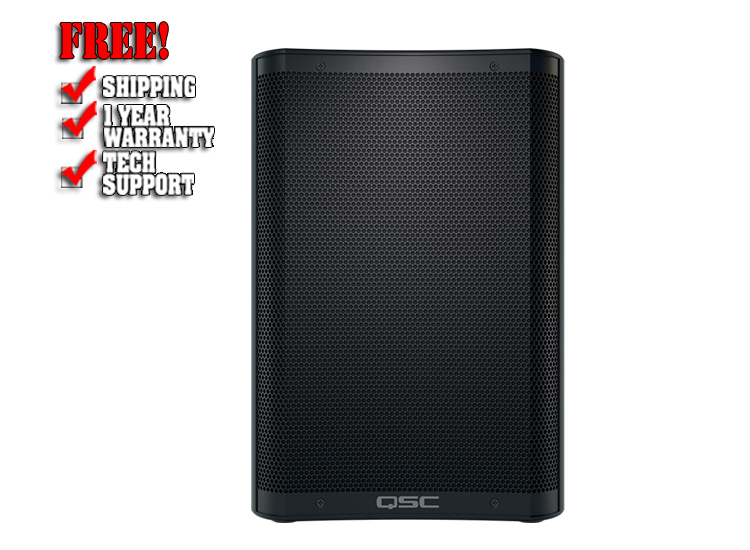

QSC CB10 Powered PA Speaker with Battery

Overview

The QSC CB10 is a compact, battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.

Features

• PROFESSIONAL PA PERFORMANCE
  • Powerful, Compact 2-way System
    • 440 watts of peak power (Class D)
    • 10-inch woofer
    • 1-inch HF compression driver
    • 127 dB @ 1 m (peak SPL)
  • Integrated 3-Channel Mixer
  • Wireless Remote Control
    • Two combo XLR inputs with independent Factory Presets
    • QSC Loudspeaker Control App (iOS & Android) for convenient system remote control
  • Room Delay
    • 200 ms (max) of room delay
• VERSATILE
  • Simple to Use

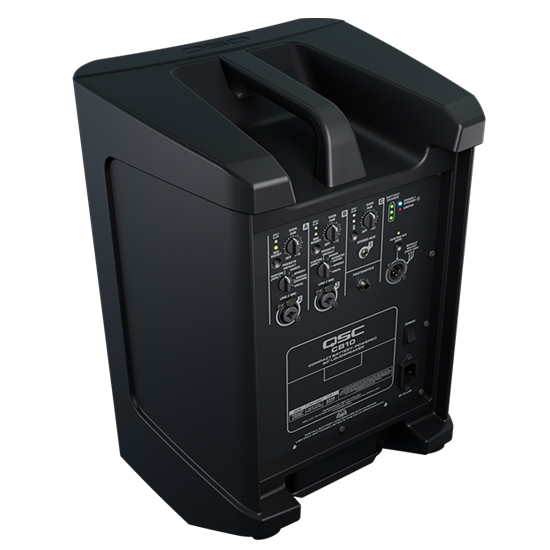

    • Large carry handle on the enclosure top
    • Lightweight and portable

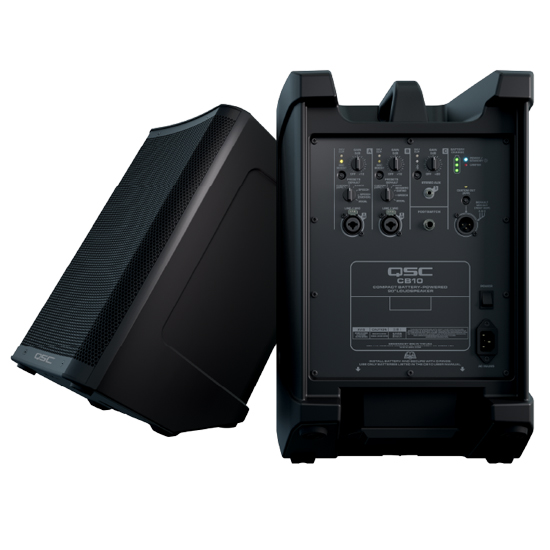

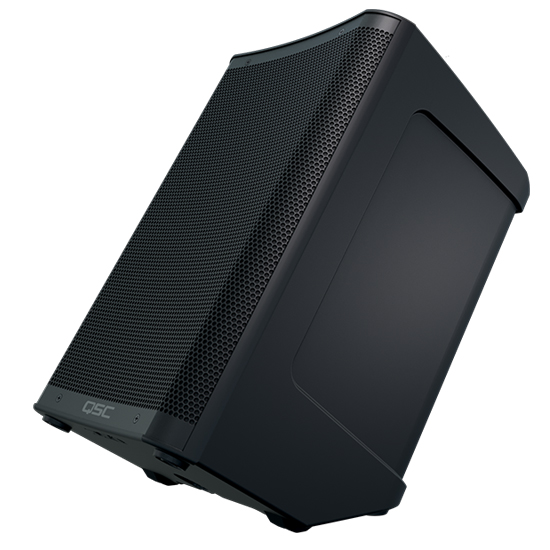

    • 30 degrees tilt back (floor deployment)
    • Integrated pole cup (stand deployment)
  • Bluetooth® 5.1 Audio
    • For control and audio with True Wireless Stereo (TWS) Bluetooth
  • Battery and AC Power
    • Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
    • User-installable/removable battery pack
    • AC power for unlimited steady operation

Specifications:

• Model: CB10
• Configuration: Two-way Rechargeable Loudspeaker System
• LF Transducer: 254 mm (10-inch), cone
• HF Transducer: 25.4 mm (1-inch), compression driver
• Frequency Response (-6 dB): 51 Hz - 18 kHz
• Frequency Range (-10 dB): 47 Hz - 20 kHz
• Nominal Coverage Angle: 90° Axisymetric
• Maximum Rated SPL¹: 127 dB @ 1 m
• Amplification (Peak): Class D, 440 W
• Cooling: Convection cooling

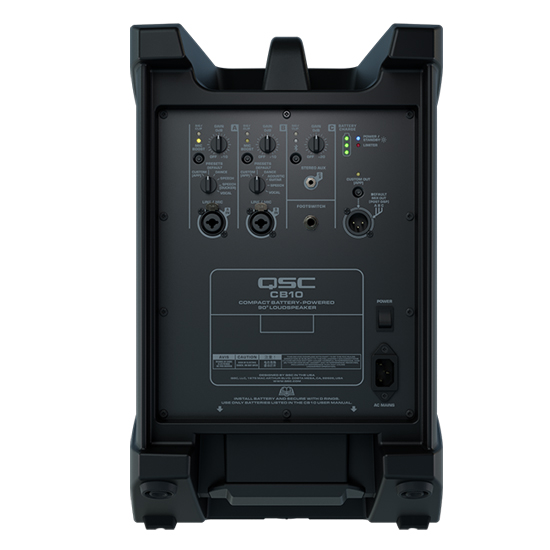

• Backpanel Controls:
  • 3 x Rotary level potentiometers (Gain)
  • 2 x MIC Boost push-switch
  • 2 x 6-way contour selection rotary-switch (Custom App control)
  • Bluetooth switch
  • Output select switch
  • AC power switch
• Loudspeaker Control App Functions:
  • Input gain control
  • Presets (Channels A & B)
  • EQ
  • Reverb (Channels A & B)
  • Ducker (Channel A)
  • Contour selection
  • Custom output routing
  • Footswitch: Channel mute, FX mute, or channel boost
  • Bluetooth audio configuration
  • Firmware updates
• Backpanel Indicators:
  • 3 x Input Signal/Clip LEDs
  • 2 x MIC selected LEDs
  • 3 x Battery charge LEDs
  • Limiter active LED
  • Bluetooth LED
  • Output select LED
  • Power/Standby LED
• Connectors:
  • 2 x locking XLR/F ¼″ combo (Line / Mic-Line)
  • 1 x 3.5 mm TRS (Stereo input)
  • 1 x 6.3 mm TS (Footswitch)
  • 1 x XLR/M (Mix output)
  • 1 x locking IEC power connector
• DC Power (Battery):
  • Rechargeable Lithium-Ion 22.2 V, 4400 mAh, 97 Wh (included)
  • Battery life: up to 12 hours
  • Charging time: approx. 4 hours
• AC Power Input: 100-240 VAC, 50/60 Hz
• AC Power Consumption²: 100 VAC / 1A, 120 VAC / 0.9A, 240 VAC / 0.5A
• Enclosure Material: Polypropylene
• Color: Black (RAL 9011)
• Grille: Powder-coated steel with internal lining (18 gauge)
• Loudspeaker Dimensions (HxWxD): 465 x 313 x 287 mm / 18.3 x 12.3 x 11.3 in
• Carton Dimensions (HxWxD): 559 x 406 x 381 mm / 22 x 16 x 15 in
• Net Weight: 12.2 kg / 26.9 lb
• Shipping Weight: 14.5 kg / 32 lb
• Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
• Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
• Optional Accessories:
  • CB10-CVR: Weatherized cover
  • CB10-BATTERY: Rechargeable Lithium-Ion battery module
