Features

Main Components

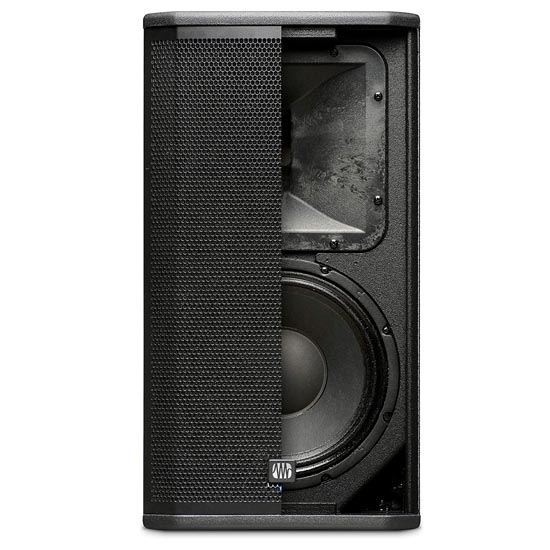

• 10-inch custom woofer with 2.5-inch voice coil
• WorxAudio-designed waveguide Pivot X110 horn for precise coverage
• Ultra-wide 110? horizontal dispersion
• Tight 50? vertical dispersion for longer throw
• 1300W Class D power (150x500W continuous)
• XMAX preamp
• Onboard mixer with two combo XLR-1/4" inputs
• Direct line-input channel output
• Single summed balanced output


Controls

• Mic/Line Level
• Line/Level
• 3 operation mode presets
  • FOH: Normal live front of house
  • DJ: Music playback
  • Mon: Stage wedge floor monitor
• HPF On/Off
• Front LED On/Off


Convenience Features

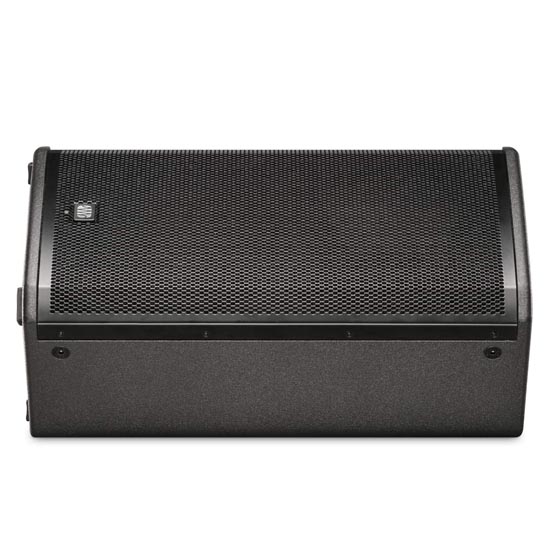

• Multi-angle enclosure for mains or monitor wedge application
• Defeatable front-panel LED
• Rugged, texture-painted eucalyptus plywood enclosures
• Tour-grade 16-gauge steel grille
• Comfortable ergonomic handles
• 35mm pole sockets with 6° downward tilt
• Integrated M10 rigging points for suspended horizontal and vertical installation
• Locking IEC connection

Specification

• Powered: Yes
• Power Configuration: Bi-amped
• LF Driver Size: 1 x 10" low frequency driver, 2.5" voice coil
• HF Driver Size: 1.75" Pivot X110 compression driver
• LF Driver Power Amp: 1000W
• HF Driver Power Amp: 300W
• Total Power: 1300W Peak, 650W continuous

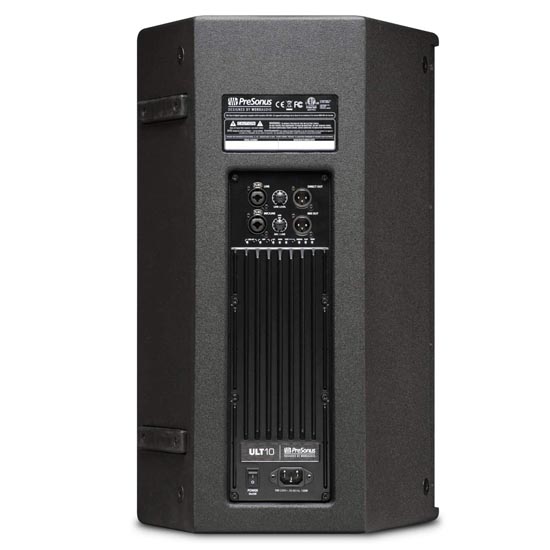

• Inputs: 2 x XLR-1/4" combo
• Outputs: 2 x XLR (mix out, direct out)
• Frequency Range: 60Hz-18kHz (-3dB)
• Crossover Frequency: 1.6kHz
• Maximum Peak SPL: 130dB SPL
• Horizontal Coverage Angle: 110 Degrees
• Vertical Coverage Angle: 50 Degrees
• Signal Processing: Highpass filter
• Enclosure Material: Eucalyptus plywood cab with Chemline polyurethane finish
• Mounting Options: Pole Mount with 1.37" socket, Floor Wedge, 12 x M10 Fly Points
• Power Source: Standard IEC AC cable
• Height: 22"
• Width: 13.2"
• Depth: 11.9"
• Weight: 44 lbs.
