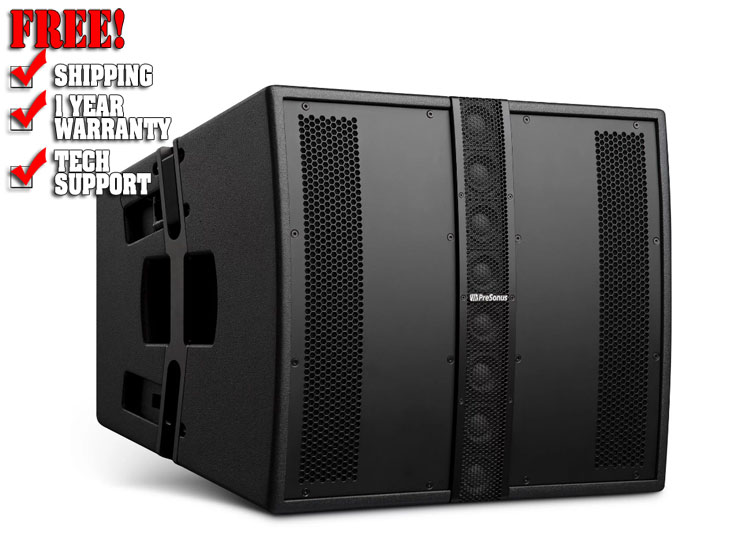

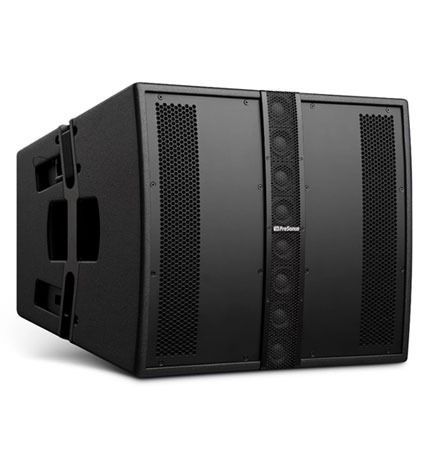

PreSonus CDL12 Hybrid Point Source/Line Array Constant Directivity Loudspeaker

Constant directivity provides consistent, coherent sound

The CDL12's patent-pending design combines the best of point source and line array technology. It houses eight 2" drivers that are aligned in a segmented circular-arc high-frequency array. These transducers are centered around a single 12" woofer. The output from these state-of-the-art drivers travels on the same acoustic axis, ensuring that the pattern always radiates from the center of the CDL12. And when you stack multiple enclosures, the entire array maintains consistent center-to-center spacing among all the high- and low-frequency drivers, creating a seamless transition from one cabinet to the next. It also minimizes comb filtering, maintaining a controlled 120° horizontal coverage pattern, while the vertical coverage is expanded by 20° per speaker. That means a 6-speaker array of CDL12s delivers unprecedented dispersion of up to 120° vertically and 120° horizontally!

Customizable array presets for easy deployment

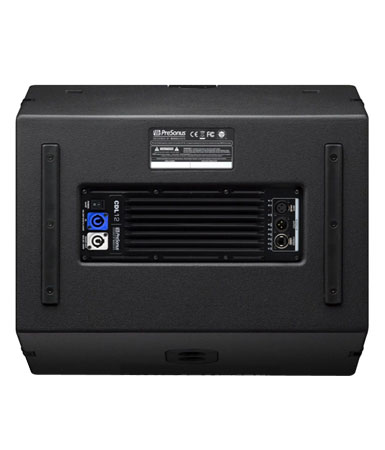

Whether you're using it alone or in an array, setting up the CDL12 is a breeze, thanks to its onboard presets on the rear panel. If you're building a larger array, then you simply connect each speaker to a standard LAN network and take command with Worx Control software running on your Mac or PC. With Worx Control, you benefit from speaker-management tools like compression, limiting, 800ms of delay, an 8-band EQ, and more. Performance monitoring indicators display temperature and signal levels remotely. You can use Worx Control to manage your speakers individually or as a group.

Built-in Dante connectivity supplies near-zero latency and synchronization

The CDL12 boasts built-in Dante connectivity - a feature not found on many speakers in this class. Besides giving you near-zero latency and effortless synchronization, this multichannel digital media networking technology is compatible with an endless range of equipment, making it easy to integrate the CDL12 into just about any installed sound environment. And it does it over a single locking Ethernet connection!

PreSonus CDL12 Features:

• 8 x 2" drivers disperse high frequencies at an astonishing 120° horizontally
• 6 speakers can be arrayed for symmetrical 120° x 120° dispersion
• 12" woofer yields a thunderous low-end thump
• 1,000 watts of Class D power exhibit remarkable headroom, explosive SPLs, and incredible dynamics
• Onboard array presets for easy deployment
• Take command of large arrays with Worx Control software
• Speaker-management tools include compression, limiting, 800ms of delay, an 8-band EQ, and more
• Built-in Dante connectivity gives you near-zero latency and synchronization
• Boasts an impressive range of mounting options

Tech Specification

• Powered: Yes
• Power Configuration: Bi-amped
• Channels: Single
• LF Driver Size: 12" Woofer, 2.5" Voice Coil
• HF Driver Size: 8 x 2" Drivers, Speaker Array
• LF Driver Power Amp: 1000W Peak, 500W Program
• HF Driver Power Amp: 1000W Peak, 500W Program
• Total Power: 2000W Peak, 1000W Program, 500W RMS
• Inputs: 1 x XLR (line)
• Outputs: 1 x XLR (direct out)
• Data I/O: Locking Ethernet (Dante)
• Frequency Range: 42Hz-19kHz
• Frequency Response: 48Hz-18kHz (-3dB)
• Crossover Frequency: 420Hz
• Maximum Peak SPL: 131 dB SPL
• Horizontal Coverage Angle: 120 Degrees
• Vertical Coverage Angle: 20 Degrees
• Signal Processing: DSP Presets, Compression, Limiting, Delay, 8-band EQ
• Software: Worx Control Software
• Enclosure Material: 15mm Eucalyptus Plywood, Chemline Polyurea Finish
• Mounting Options: Dual-position Pole Mount, Integrated Pin-loaded Hardware (connecting multiples), Suspended CDL Rigging (sold separately)
• Power Source: PowerCon In/Out
• Height: 18.6"
• Width: 20.8"
• Depth: 17.5"
• Weight: 65 lbs.
