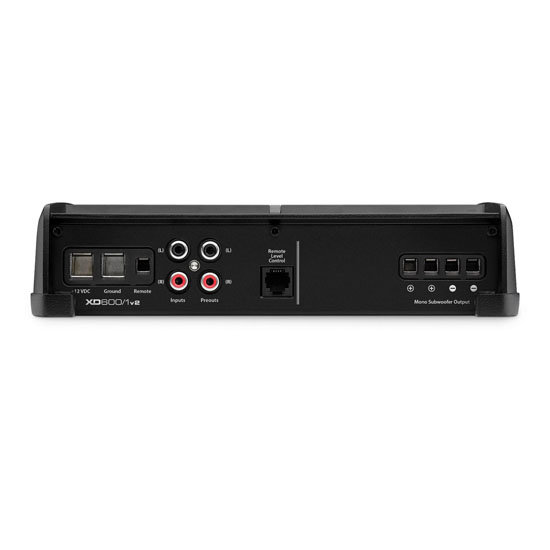

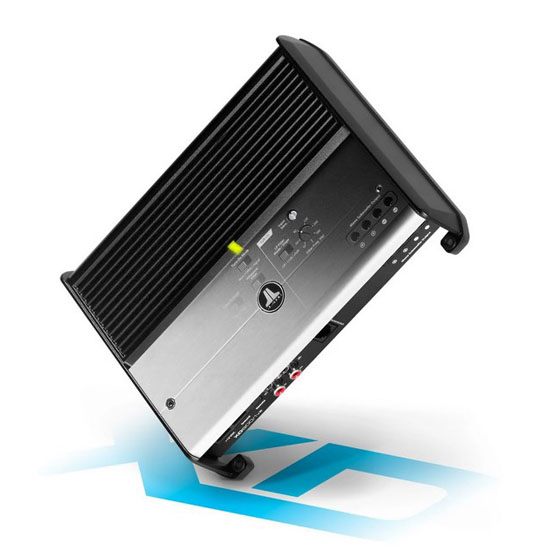

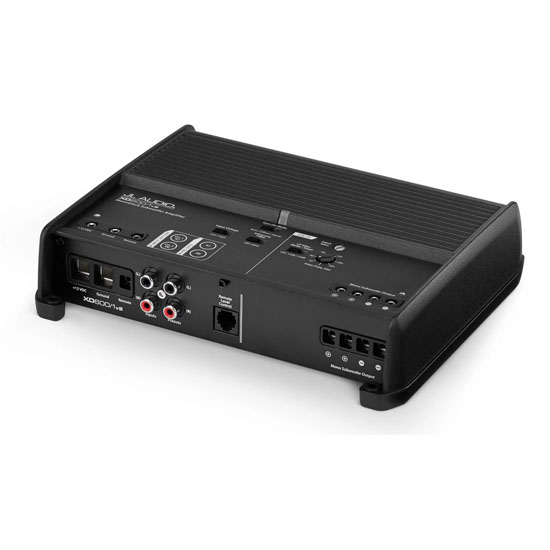

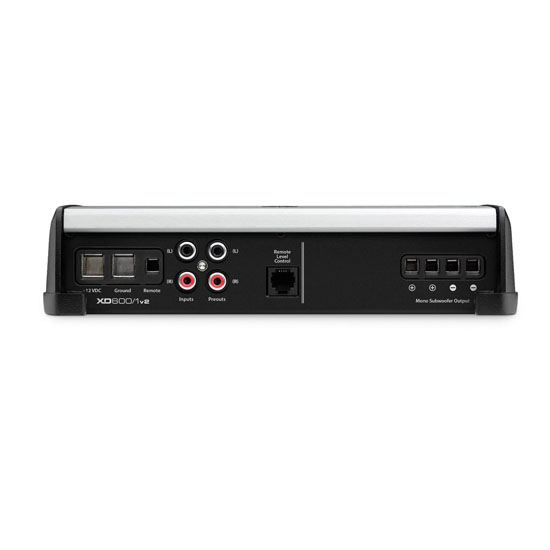

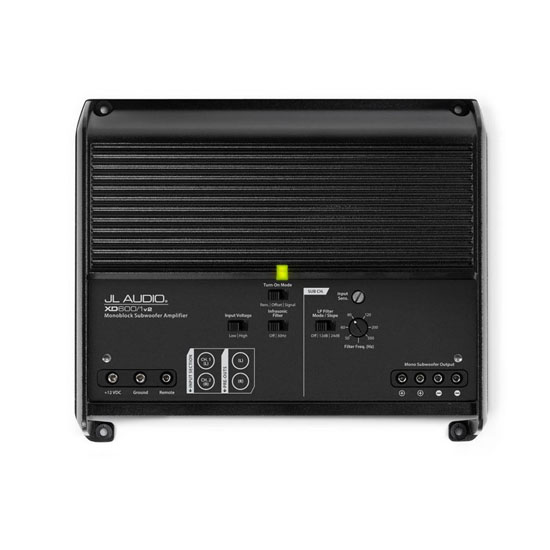

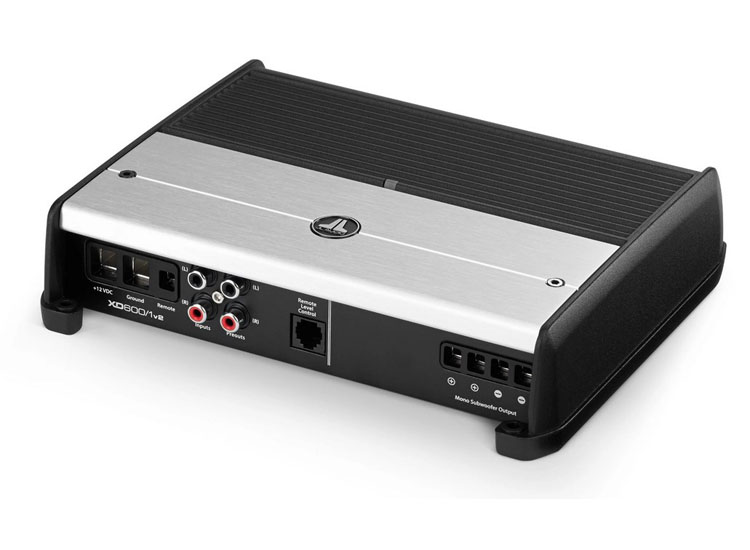

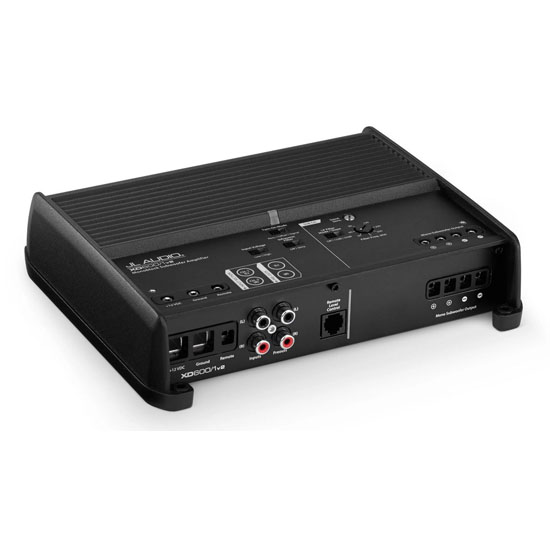

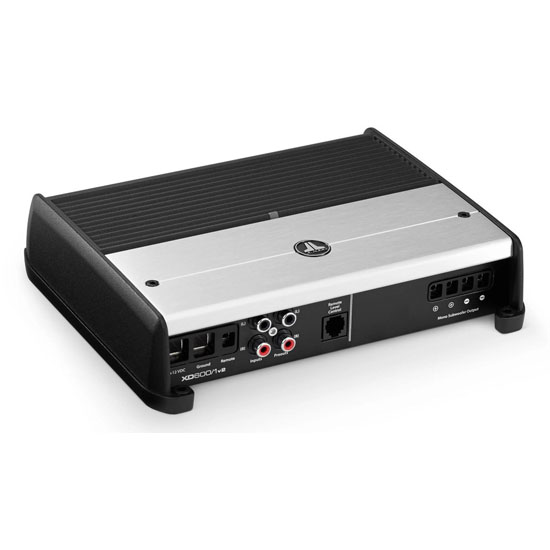

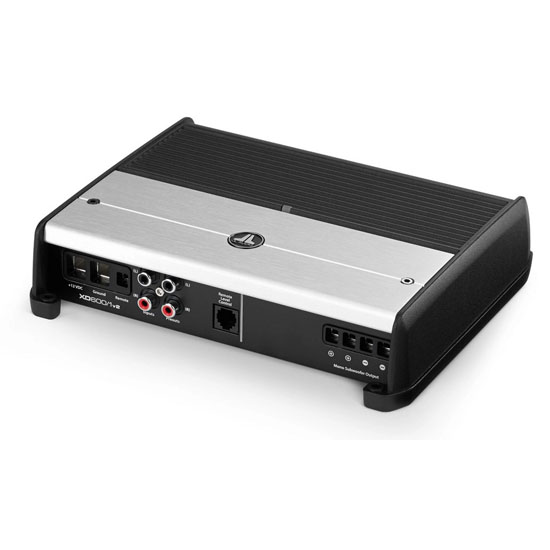

JL Audio XD600/1v2

Monoblock Class D Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).

Targeted specifically for subwoofer applications, the XD600/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.

The XD600/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

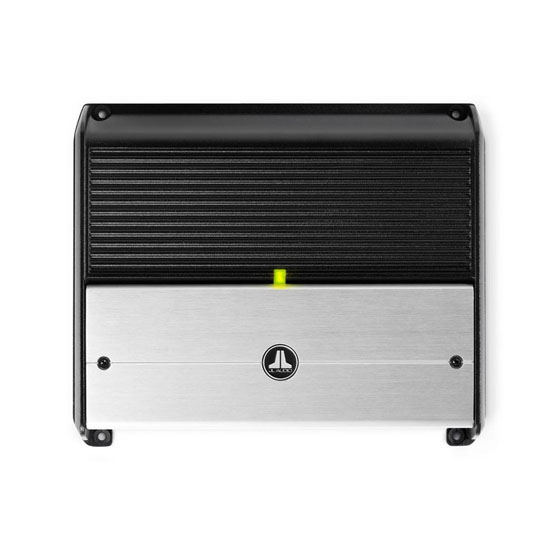

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Specification

Rated Continuous (RMS) Power @ 14.4 V

  • @ 4 Ω : 400 W RMS x 1
  • @ 3 Ω : 500 W RMS x 1
  • @ 2 Ω : 600 W RMS x 1
  • @ 1.5 Ω : N/A

Rated Continuous (RMS) Power @ 12.5 V

  • @ 4 Ω : 300 W RMS x 1
  • @ 3 Ω : 400 W RMS x 1
  • @ 2 Ω : 500 W RMS x 1
  • @ 1.5 Ω : N/A

General Specifications:

  • Frequency Response : 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power : >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W : >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω : >1000 / 50 Hz
  • Damping Factor @ 2 Ω : >500 / 50 Hz
  • THD+N @ Rated Power : <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs : Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge : 4 AWG wire
  • Fuse Rating : 50 A (AFS, AGU or MaxiFuse™)

Signal Processing

  • Filter Mode(s) : Low-Pass only
  • Filter Slope(s) : 12/24 dB/octave
  • Filter Frequency Range : 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometers : Yes
  • Filter Defeat Function : Yes
  • Infrasonic Filter : 30 Hz, defeatable
  • Bass Boost EQ : No
  • Output Polarity Switch : No
  • Remote Subwoofer Level Control : Optional (HD-RLC)
  • Remote Bass EQ Boost Control : No
  • Pass-Through Preamp Output : Buffered

Physical Specifications

  • Height (H) : 2.05 in / 52 mm
  • Width (W) : 8.52 in / 216 mm
  • Depth (D) : 7.09 in / 180 mm
  • Net Weight : 6.3 lb / 2.86 kg
