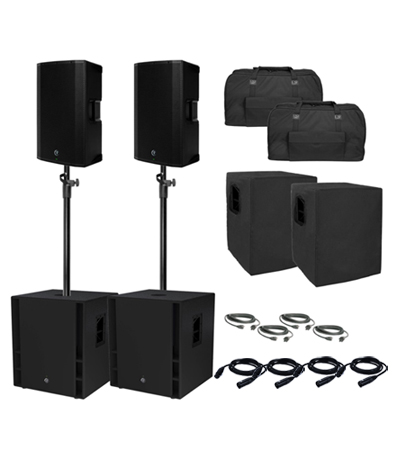

Mackie Thump15A and Thump18S Package

Features

Mackie Thump 15A Loudspeaker

• Proven Thump Performance:
• 15" high-output woofer / 1.4" titanium dome compression driver
• 1300W of ultra-efficient Class-D power
• LF - 1000W
• HF - 300W
• Next-generation system protection and thermal limiting keep your system safe
• Class-Leading, Chest-Thumping Low End
• All-new amplifier design with Dynamic Bass Response™ technology allows for incredibly fast transient response delivering more chest-thumping low-end than ever
• Ultimate Flexibility:
• Built-in 2-channel mixer features Vita™ preamps with Wide-Z™ technology to handle mic, line and instrument signals with ease
• XLR thru output allows for simple wired connection to other Thump loudspeakers
• Flexible mounting options including tripod and pole-mounting
• Dual angle design perfect for use as a stage monitor
• Total System Optimization:
• Four Application-specific speaker modes for instant system optimization
• Precision digital crossover
• Transducer time alignment
• Universal power supply (100-240VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
• Lightweight and Portable:
• Completely redesigned professional enclosure designed for heavy use
• Loading in and out is easy with a new 4 handle design
• Weight: 40 lbs. (18.1 kg)

Thump18S

• 18" custom high-output woofer
• 600W RMS (1200W peak) Class-D amplifier delivers ample power for high-output applications
• Frequency response: 40Hz-120Hz (-3dB)
• Rugged all-wood enclosure with pole cup for mounting full-range loudspeakers
• System protection safeguards your investment
• Dual XLR inputs
• Stereo full-range and highpass outputs
• Adjustable level and polarity controls
• Built-in handles for easy transport

Specification:

Thump15A

• Powered: Yes
• Power Configuration: Bi-amped
• LF Driver Size: 15" woofer with ferrite magnet
• HF Driver Size: 1.4" titanium dome compression driver
• LF Driver Power Amp: 1000W Class D
• HF Driver Power Amp: 300W Class AB
• Total Power: 1300W Peak
• Inputs: 2 x XLR-1/4" combo
• Outputs: 1 x XLR (mix out)
• Wireless: Bluetooth 3.0
• Frequency Range: 32Hz-23kHz (-10dB), 39Hz-20kHz (-3dB)
• Crossover Frequency: 24 dB/octave @ 2kHz
• Maximum Peak SPL: 127 dB SPL @ 1m
• Signal Processing: 6 x speaker modes, 3-band EQ, variable high-pass filter
• Software: Thump Connect app (iOS, Android)
• Enclosure Material: Polypropylene with textured black finish
• Mounting Options: Pole Mount, Floor, 3 x M10 Fly points
• Power Source: Standard IEC AC cable
• Height: 27"
• Width: 17.4"
• Depth: 14"
• Weight: 35.1 lbs.

Thump18S

• Powered/Unpowered: Powered
• LF Driver Size: 1 x 18"
• Total Power: 600W RMS/1200W Peak
• Inputs: 2 x XLR
• Outputs: 4 x XLR
• Frequency Range: 30Hz-132Hz (-10dB)
• Crossover Frequency: 140Hz
• Maximum Peak SPL: 130dB
• Options: Floor
• Material: 15mm Plywood
• Height: 26.5"
• Width: 22.6"
• Depth: 22.8"
• Weight: 82 lbs.
