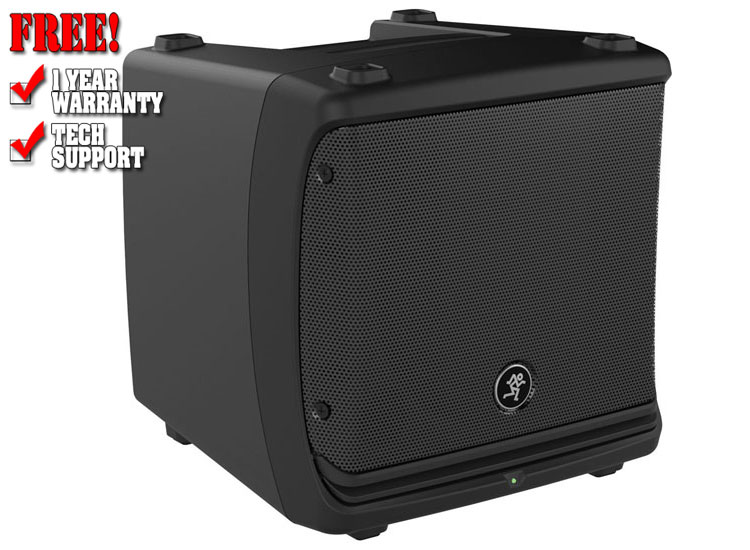

Mackie DLM8 2000 Watt 8" Full-Range Powered Loudspeaker

Regular Price $1999.99

Our Price $999.99

WARRANTY SPECIAL

TWO YEAR FULL WARRANTY. ONLY $27.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $55.00

Regular Price $1999.99

Our Price $999.99

WARRANTY SPECIAL

TWO YEAR FULL WARRANTY. ONLY $27.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $55.00

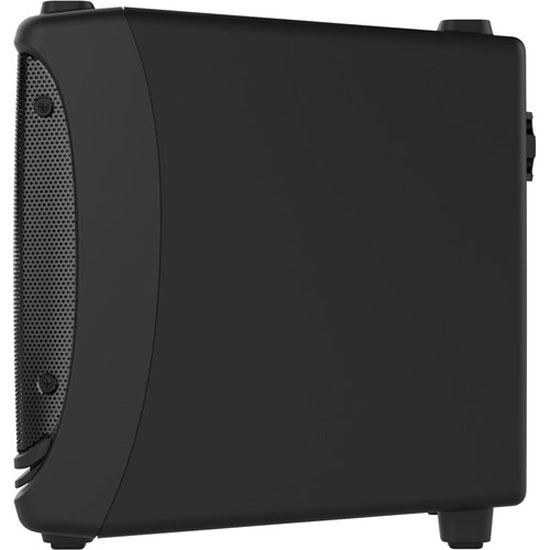

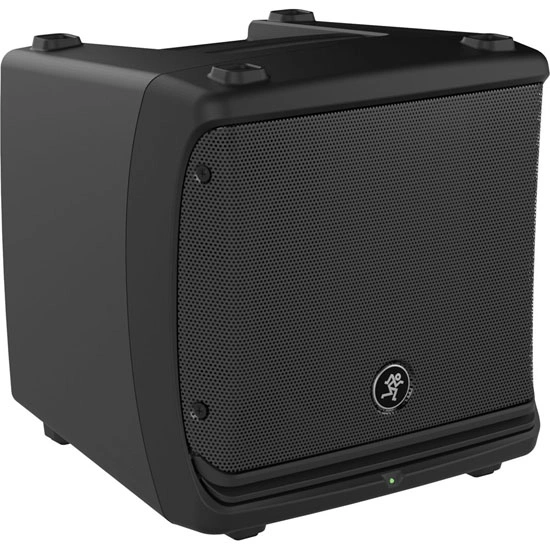

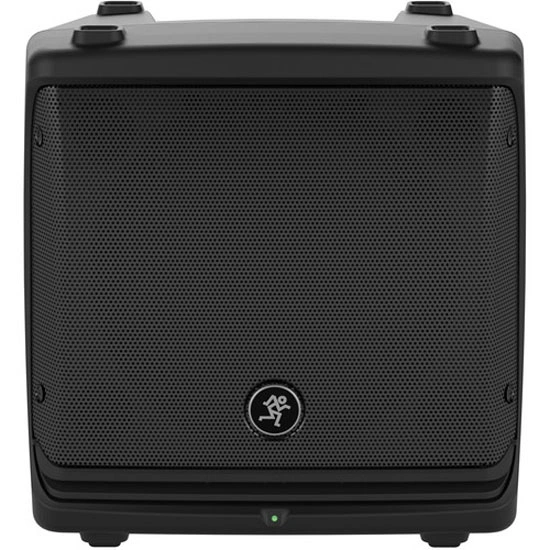

Mackie DLM8 2000 Watt 8" Full-Range Powered Loudspeaker

Description

The Mackie DLM8 packs a lot of power - 2,000 watts, to be precise. And its smart design makes it the ideal speaker for lots of different uses: use a pair as main speakers on speaker poles, wall-mount it as a backfill speaker in your venue, or get a contractor to fly it with standard M10 rigging hardware. It's even got a kickstand, so you can angle it back for use as a stage monitor. The DLM8 has the power and flexibility to excel in almost any sound reinforcement situation.

Features

2000W power via ultra-efficient Class-D amplification.
TruSource Technology.
Mackie designed, vertically-aligned, common-magnet TruSource driver.
8" LF woofer / 1.75" HF compression driver.
Incredibly compact, lightweight design.
Powerful TruSource DSP delivers seamless clarity, consistent dispersion and unmatched fidelity.

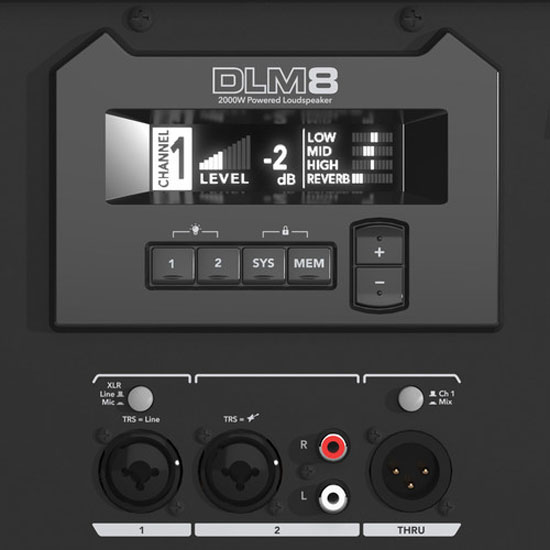

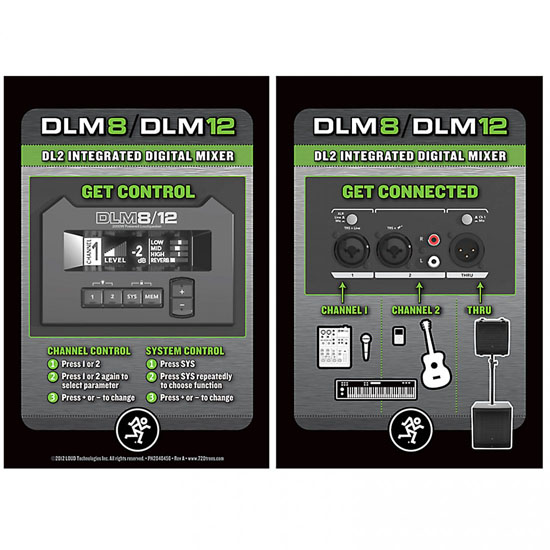

DL2 Integrated Digital Mixer.
Powerful, one-touch digital mixer with bright OLED screen.
Two highly-versatile input channels with FX.
Independent channel level, 3-band EQ and effects control.
16 great-sounding channel effects include reverb, chorus and delay.
XLR/TRS combo and dual RCA connectors.
Handles mic, line, stereo and instrument signals.
Unmatched system control for professional applications.
Multi-band feedback destroyer.
Six speaker modes deliver the perfect voicing for your application.
Alignment delay up to 300ms for delay stack, balcony, etc..
Three memory locations for instant venue setting recall.
Smart Protect DSP dynamically protects amp/driver.
Innovative ultra-compact design.
1/3 smaller than a traditional 2-way.
Fit an entire DLM system in nearly any car.
Stack them up for storage.
Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole.
Flyable via standard M10 rigging hardware.
Wall-mount them using SWM300 articulated arm for stealthy, powerful install system.
Roadworthy PC-ABS cabinet with pro black finish and ergonomic top carry handle.
Rugged, powder-coated 20 gauge steel grille.

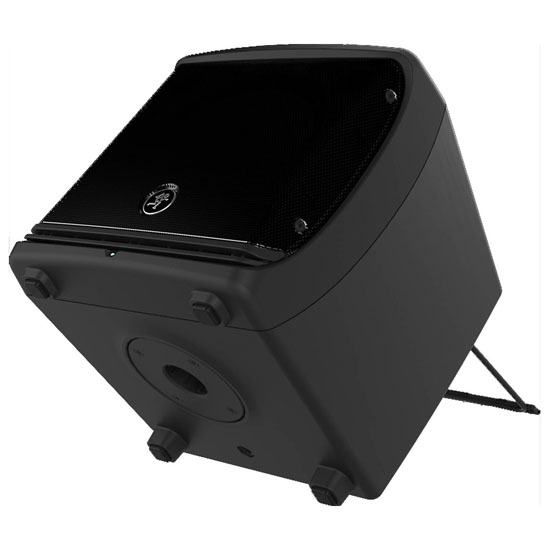

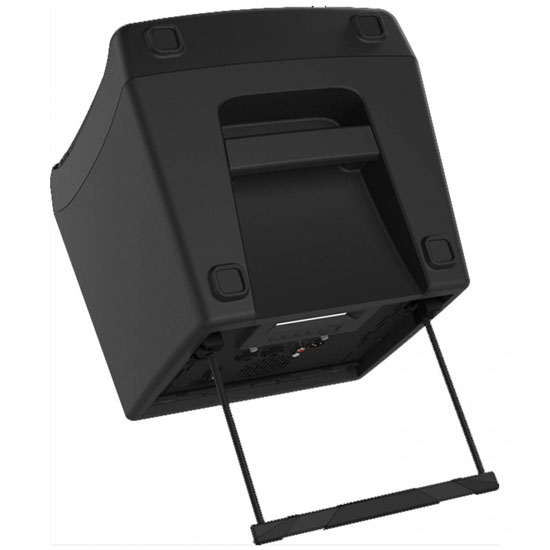

Integrated kickstand delivers perfect angle for personal monitor use.
Ridiculously lightweight (22 lbs. / 10kg).

Specifications

Power Output
- 1,000W RMS
- 2,000W peak
Low Frequency Driver
- 8" (203 mm) woofer
- 2" (51 mm) voice coil diameter
- Paper diaphragm
- Ferrite magnet
High Frequency Driver
- 1.75" (44 mm) compression driver
- 1" (25 mm) horn entry diameter
- Polyimide film diaphragm
- Ferrite magnet
Frequency Response : 65 Hz to 20 kHz (-10 dB)
Maximum Sound Pressure Level (SPL) : 125 dB @1 m, calculated
Crossover : 1.6 kHz
Dispersion : 90° conical
Equalization
- Low shelving: ±15 dB @ 80 Hz
- Mid-peaking: ±15 dB @ 2.5 kHz
- High shelving: ±15 dB @ 12 kHz
- Increments: ±3 dB
Amplifier Power
- Low Frequency Amplifier:
- 500W RMS, 1,000W peak
- Rated THD: < 1%
- Cooling: multi-speed fan
- Class D design
- High Frequency Amplifier:
- 500W RMS, 1,000W peak
- Rated THD: < 1%
- Cooling: multi-speed fan
- Class D design

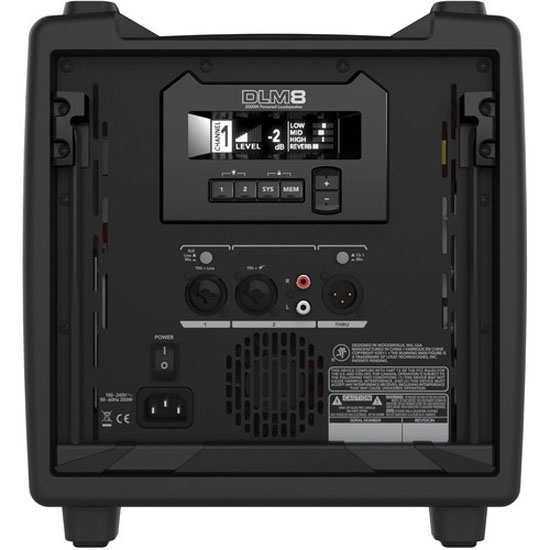

Audio Inputs
- 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable)
- 1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input)
- 2 x RCA phono - Channel 2 (1 x L/R)
Input Impedances
- Channel 1:
  Mic: 3.3kΩ balanced
- Line: 20kΩ balanced, 10kΩ unbalanced
- 1/4" TRS: 16kΩ balanced, 8kΩ unbalanced
- Channel 2:
- XLR Line: 20kΩ balanced, 10kΩ unbalanced
- 1/4" TRS [Hi-Z instrument]: 1MΩ unbalanced
- RCA: 25kΩ unbalanced
Audio Output : 1 x XLR - Thru (switchable output, channel 1 or mix)
Mixer Section
- DL2 Digital Mixer System Processing:
- EQ: 6 speaker modes
- Alignment delay: 0 to 300 ms
- FX: 16 presets
- Multi-band feedback destroyer: On / Off / Clear / Hold
- Memory: 3 locations for instant venue setting recall and factory reset
Power Requirements : 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W
AC Plug Style : 3-pin IEC 250VAC
Operating Temperature Range : 32 to 104°F (0 to 40°C), extended ambient temperature
Construction
- PC-ABS cabinet
- High durability black paint finish
- Top handle
- Powder-coated 20 gauge steel grille
- Three M10 x 17 mm fly points
- 50° monitor angle (using integrated kickstand)
Mounting Options : Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points
Dimensions (H x W x D)
- 12.3 x 12.1 x 11.9" (313 x 307 x 302 mm)
Weight : 22 lb (10 kg)

What's in he Box

(1) Mackie DLM8 2000 Watt 8" Full-Range Powered Loudspeaker
(1) Power Cord
(1) Owner's Manual
