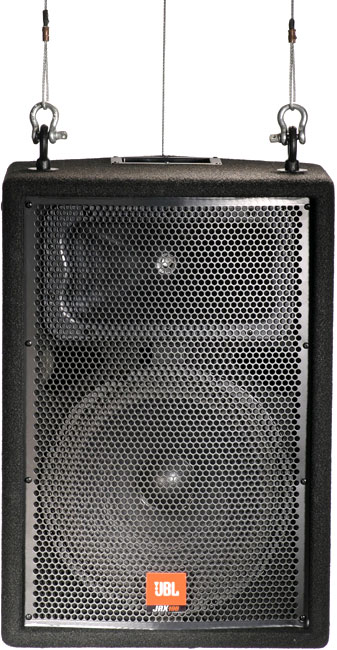

JBL JRX112MI

Description

• Power Rating: 1000 W
• Frequency Range: 60 Hz - 16 kHz (-10 dB)
• Dimensions (H x W x D): 22.7 in x 15.7 in x 12.8 in
• Frequency Response: 70 Hz - 12 kHz (±3 dB)
• Nominal Impedance: 8 ohms
• Sensitivity: 99 dB SPL (1w/1m)
• Maximum SPL: 129 dB
• Nominal Dispersion: 90º x 50º
• Crossover Frequency: 1.8 kHz
• Weight: 43 lb
• High Frequency Driver: JBL 2412 1 in exit compression driver mounted on Progressive
• Low Frequency Driver: JBL M112-8
• Input Connectors: Neutrik® Speakon® NL-4 (x1); .25 in
• JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross- sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
• Attractive 18-gauge perforated, steel grille protects components from damage.
• Cabinet is fitted with three M10 threaded suspension points.
• Rigging hardware kit containing three 10 mm forged shoulder eyebolts with washers is included.
