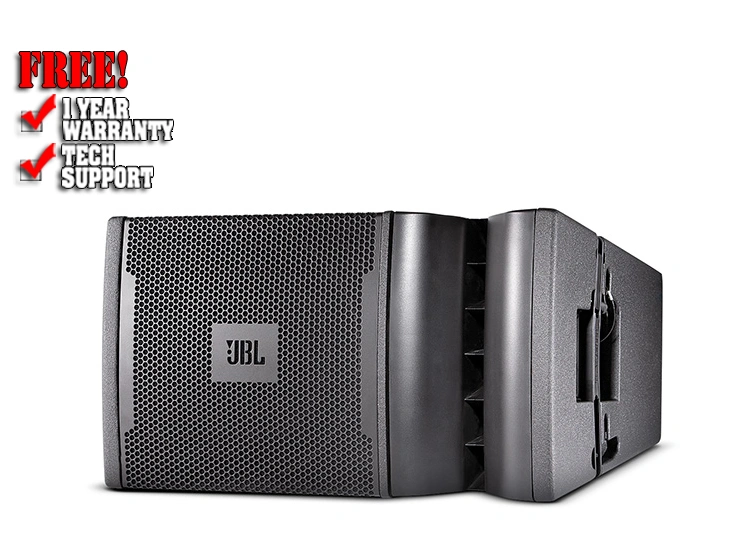

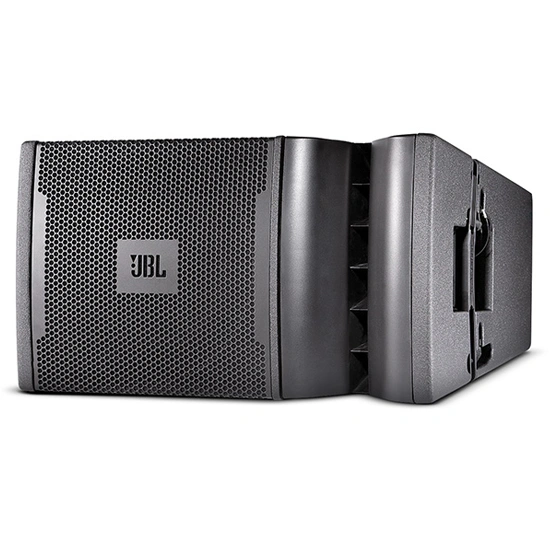

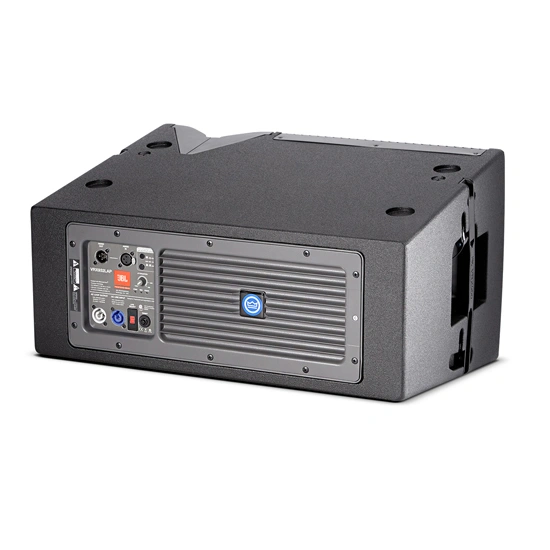

JBL VRX932LAP 12-inch Two-Way Powered Line Array Speaker

Description:

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

JBL VRX932LAP 12-inch Two-Way Powered Line Array Speaker Features:

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
• JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
• Array Configuration Selector permits "array shading".

JBL VRX932LAP 12-inch Two-Way Powered Line Array Speaker Specifications:

• Power Rating : 1750 Watts Peak875 Watts Continuous
• Frequency Range (-10dB) : 57 Hz - 20 kHz
• Dimensions (H x W x D) : 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
• Frequency Response : 75 Hz - 20 kHz (+/-3db)
• Maximum SPL (1m) : 136 dB SPL
• Coverage Pattern : 100 x 15 nominal
• DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) : LF: 750 Watts, HF: 125 Watts
• DPC-2 Output Section : LF: Dual-Bridged Technology™, Class D
• Inputs : XLR with loop through
• LF Driver : 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
• HF Driver : 3 x JBL 2408J, 38 mm (1.5 in)
• User Controls : Input Attenuator (0-16 dB)
• Signal Processings : DSP based, resident in Input Module
• AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60 Hz
• AC Input Connector : Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements : 6A per system at 120V, 3A per system at 240V
• Enclosure : 25/15 mm, 11-ply birch plywood
• Suspension / Mounting : Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
• Finish : Black DuraFlex™ finish
• Grille : Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
• Net Weight (each) : 24 kg (52 lb)
• Optional Accessories : VRX-AF: Suspension array frame
• Outputs : 1 x XLR
• System Type : Constant Curvature 12" Two-Way Powered Line Array System
• Nominal Impedance : NA - amplification is integrated

Most Popular Accessories & Related Items

<

JBL SRX906LA

$2399.99

JBL SRX910LA

$3899.99

JBL VRX932LAP Array Bundle

$10778.99

JBL VRX932LAP+Stands Bundle

$6600.99

JBL VRX932LAP+VRX918SP Bundle

$22463.99

>

Frequently Asked Questions (FAQ)

What is the power output of the JBL VRX932LAP?

The JBL VRX932LAP features built-in amplification and delivers high-output performance, making it suitable for concerts, live events, and professional sound systems.

Is the JBL VRX932LAP suitable for DJs and live performances?

Yes, it is ideal for DJs, live sound engineers, and event production. Its line array design provides wide coverage and consistent sound for large audiences.

Does the JBL VRX932LAP require an external amplifier?

No, this is a powered line array speaker with a built-in amplifier, so no external amp is needed for operation.

Can the JBL VRX932LAP be used in a line array system?

Yes, it is specifically designed for line array configurations, allowing multiple units to be combined for greater coverage and output.

Is the JBL VRX932LAP good for outdoor events?

Yes, it performs well in outdoor environments due to its high output and wide sound dispersion, but it should be protected from rain and extreme weather.

What are the main applications of the JBL VRX932LAP?

It is commonly used for concerts, touring, event production, houses of worship, and permanent professional audio installations.
