JBL SRX835 15-Inch 3-Way Passive PA Speaker

Description:

JBL SRX835 is a three-way full range speaker with a 15" woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors

JBL SRX835 15-Inch 3-Way Passive PA Speaker Features:

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 32Hz-20kHz
• Frequency Response: 43Hz-20kHz
• Max SPL: 137dB
• Coverage Pattern: 60x40
• Amplification options: Passive/Bi-Amp

Technology

PURPOSEFUL DESIGN

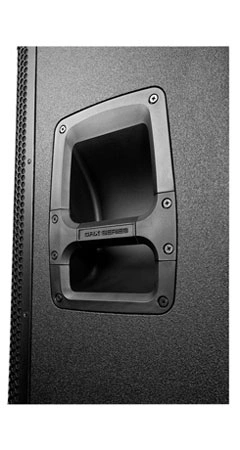

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL's patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Application

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

JBL SRX835 15-Inch 3-Way Passive PA Speaker Specification

• System Type Passive 15", three-way, bass-reflex
• Maximum SPL Output 137dB
• Frequency Range (-10dB) 32hz - 20khz
• Frequency Response (- 3dB) 43hz - 17khz
• Sensitivity (1W/1m) 95dB
• System Power Rating 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance 8 Ohm

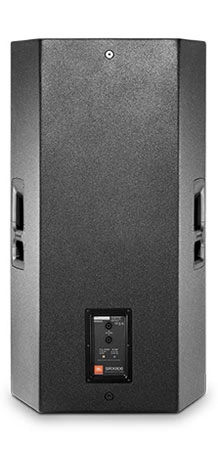

• Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive/Bi-Amp

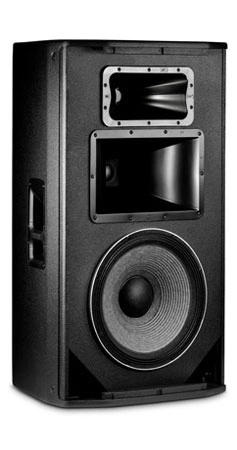

• LF Driver 2275F
• MF Driver 2107H
• HF Driver 2432H
• Coverage Pattern 60 x 40
• Crossover Frequency 330hz & 2.4khz
• Enclosure Material 18mm plywood
• Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
• Handles 2
• Finish Obsidian Duraflex™ finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (L x W x H) 18.74" x 21.4" x 38.74" (476mm x 544mm x 984mm)
• Weight 95.0 lbs (43.1kg)

Most Popular Accessories & Related Items

<

JBL SRX812

$1299.99

JBL SRX815

$1489.99

JBL SRX812P

$1089.99

JBL SRX815P

$1399.99

>

Frequently Asked Questions (FAQ)

What is the JBL SRX835?

The JBL SRX835 is a 15-inch 3-way passive PA speaker designed for professional DJs, live bands, and large event production. It delivers high output, clear audio, and deep bass for powerful sound reinforcement.

Is the JBL SRX835 powered or passive?

The SRX835 is a passive speaker, requiring an external amplifier to operate. For a self-powered option, check out the SRX835P model.

What type of events is the SRX835 best suited for?

This speaker is ideal for large venues, live concerts, DJ performances, corporate events, and outdoor events. Its 3-way design ensures clear highs, detailed mids, and strong lows for professional audio.

How do I connect the SRX835 to an amplifier?

Use SpeakON or 1/4" speaker cables to connect the SRX835 to a compatible external amplifier. Ensure the amplifier wattage matches the speaker's RMS rating for optimal performance and safety.

Can the SRX835 be used outdoors?

Yes, it can be used outdoors, but the SRX835 is not weatherproof. Avoid direct exposure to rain or moisture, and use protective covers or enclosures for outdoor events.
