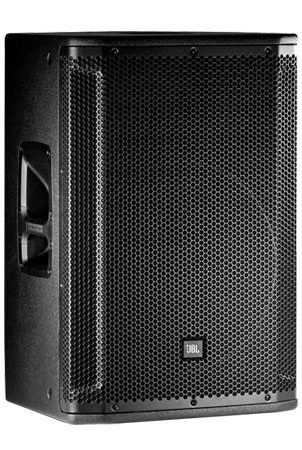

JBL SRX815 15-Inch 2-Way Passive PA Speaker

Description:

JBL SRX815 is a two-way full range speaker with a 15" woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

JBL SRX815 15-Inch 2-Way Passive PA Speaker Features:

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 41Hz-20kHz
• Frequency Response: 56Hz-20kHz
• Max SPL: 136dB
• Coverage Pattern: 90 x 50
• Amplification options: Passive/Bi-Amp

Technology

PURPOSEFUL DESIGN

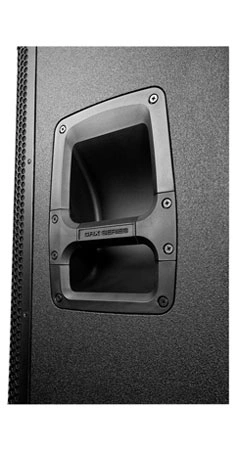

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

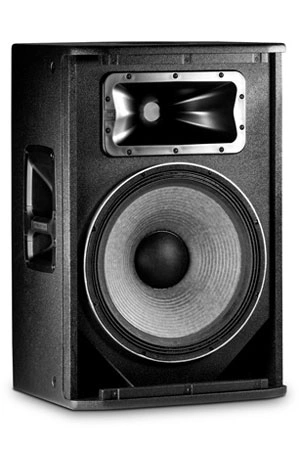

JBL's patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Application

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

JBL SRX815 15-Inch 2-Way Passive PA Speaker Specification:

• System Type Passive 15", two-way, bass-reflex
• Maximum SPL Output 136dB
• Frequency Range (-10dB) 41hz - 20khz
• Frequency Response (- 3dB) 56hz - 20khz
• Sensitivity (1W/1m) 95dB
• System Power Rating 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance 8 Ohm

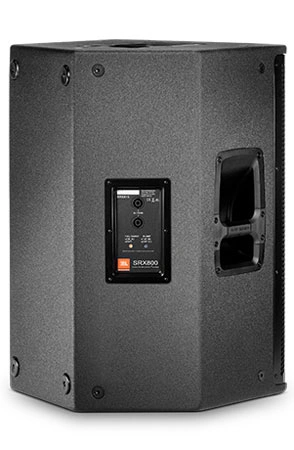

• Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive/Bi-Amp
• LF Driver 2275H
• HF Driver 2432H
• Coverage Pattern 90 x 50
• Crossover Frequency 1.9khz
• Enclosure Material 18mm plywood

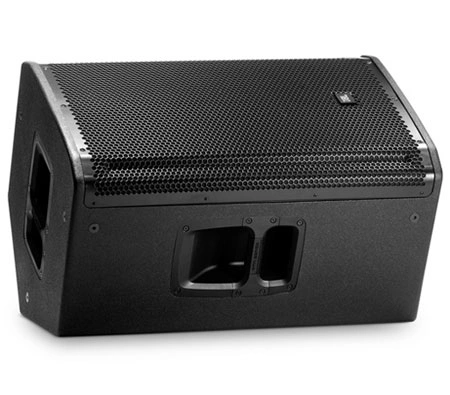

• Monitor Angle 50°
• Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
• Handles 3
• Finish Obsidian Duraflex™ finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (L x W x H) 18.82" x 18.03" x 27.20" (478mm x 458mm x 691mm)
• Weight 57.0 lbs (25.9kg)
• Shipping Weight 67.0 lbs (30.4kg)

Most Popular Accessories & Related Items

<

JBL SRX812

$1299.99

JBL SRX835

$1829.99

JBL SRX812P

$1089.99

JBL SRX815P

$1399.99

>

Frequently Asked Questions (FAQ)

What is the JBL SRX815?

The JBL SRX815 is a 15-inch 2-way passive PA speaker designed for professional DJs, live bands, and event production. It delivers high output, clear audio, and reliable performance for medium-to-large venues.

Is the JBL SRX815 powered or passive?

The SRX815 is a passive speaker, which means it requires an external amplifier to operate. If you need a powered option, the SRX815P self-powered model is available.

What type of events is the SRX815 best for?

This speaker is ideal for DJ setups, live band performances, corporate events, and weddings. It provides clear vocals, punchy bass, and high sound pressure levels for professional audio performance.

What are the key specifications of the SRX815?

15-inch woofer, 2-way passive design, maximum SPL around 132 dB, frequency response 50 Hz – 20 kHz, power handling 500W RMS / 2000W peak, dual SpeakON or 1/4" inputs.

How do I connect the SRX815 to an amplifier?

Use SpeakON or 1/4" speaker cables to connect the SRX815 to a compatible amplifier. Ensure the amplifier wattage matches the speaker's RMS rating for optimal sound and safety.

Can the SRX815 be used outdoors?

Yes, the SRX815 can be used outdoors, but it is not weatherproof. Avoid direct exposure to rain or moisture, and use protective covers or enclosures when hosting outdoor events.
