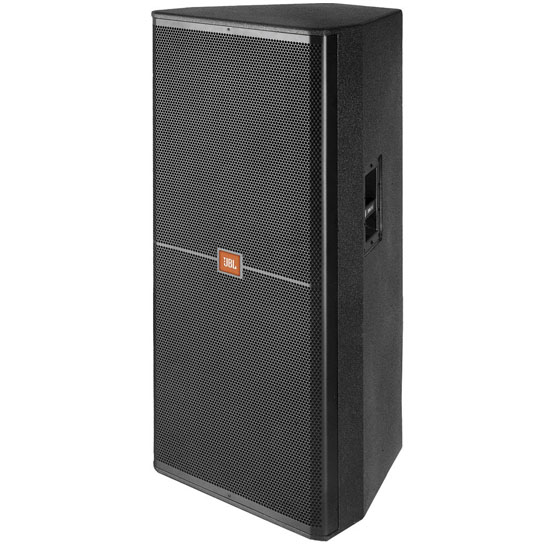

JBL SRX725 Dual 15" 4800W 2-Way Loudspeaker

The SRX725 Dual 15" 4800W 2-Way Loudspeaker from JBL delivers high-power audio in a lightweight design, ideal for live applications. The speaker has a strong 11-ply birch enclosure with a black DuraFlex finish and a 16-gauge steel grille for lasting durability and superior acoustic performance. There are two 15" 2265H Differential Drive woofers that provide an extended low frequency range as low as 37Hz. The 2451H 4" voice coil neodymium compression tweeter delivers crisp, clear treble with frequencies as high as 20kHz.

The SRX725 has a coverage pattern of 75 x 50° to reach a broad audience, while the trapezoidal cabinet design allows vertical or horizontal placement. The speaker supports bi-amplified or passive operation, which is selectable via a switch on the rear panel. The speaker has a peak power rating of 4800W to provide a powerful performance with very low distortion. Standard Neutrik Speakon connectors provide wide compatibility with a variety of sound systems. Integrated steel handles in the sides of the cabinet provide convenient transportation.

Lightweight

The lightweight and versatile design is ideal for live applications such as stage monitoring or sound reinforcement for music or vocals

Birch Enclosure

The strong 11-ply birch enclosure has a black DuraFlex finish and a 16-gauge steel grille for lasting durability and superior acoustic performance. The grille has acoustically-transparent foam for additional driver protection

Dual Woofers

There are two 15" 2265H Differential Drive woofers with dual voice coils and neodymium magnets that provide an extended low frequency range as low as 37Hz

Compression Tweeter

The 2451H 4" voice coil neodymium compression tweeter delivers crisp, clear treble with frequencies as high as 20kHz

Wide Coverage

The SRX725 has a coverage pattern of 75 x 50° to reach a broad audience, while the trapezoidal cabinet design allows vertical or horizontal placement

Bi-Amped or Passive Operation

The speaker supports bi-amplified or passive operation, which is selectable via a switch on the rear panel. The speaker has a peak power rating of 4800W to provide a powerful performance with very low distortion

Speakon Inputs

Standard Neutrik Speakon connectors provide wide compatibility with a variety of sound systems

Built-in Handles

Integrated steel handles in the sides of the cabinet provide convenient transportation

Specifications

• Type : 2-way, bi-amped or passive (selectable)
• Frequency Range : 37 Hz - 20 kHz (-10dB)
• Frequency Response : 53 Hz - 20 kHz (±3dB)
• Power Rating
  • Passive: 1200/2400/4800 W
  • Bi-amp LF: 1200/2400/4800 W
  • Bi-amp HF: 75/150/300 W
• Woofer : 2 x 15" (380 mm) 2265H Differential Drive woofers with neodymium magnets and dual voice coils
• Tweeter : 4" (102 mm) 2451H voice coil neodymium magnet compression tweeter
• Crossover : Bi-amped or passive (selectable) 1.2 kHz
• Connectors : 2 x Neutrik Speakon NL4 inputs
• Sensitivity : 99 dB (passive)
• SPL : 136 dB
• Tuning : dbx DriveRack
• Coverage : 75 x 50°
• Cabinet : Trapezoidal 11-ply birch cabinet with black DuraFlex finish, 16-gauge powder-coated steel grille, foam backing, and integrated steel handles. Removable JBL badge and punched logo
• Impedance
  • Passive: 4 ohms
  • Bi-amp LF: 4 ohms
  • Bi-amp HF: 8 ohms
• Dimensions (HxWxD): 48 x 21.3 x 20" (1219 x 51 x 508 mm)
• Weight : 100 lbs (45 kg)
• Box Dimensions (LxWxH) : 25.5 x 24 x 50"
