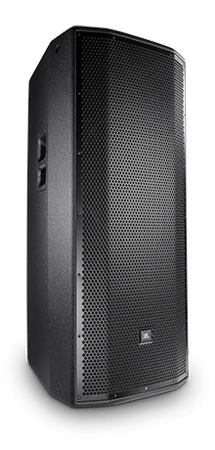

JBL PRX835W 15-inch 1500W 3-Way Powered PA Speaker

Description:

The JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15" woofer, 6.5" midrange transducer, and 1.5" compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor.

JBL PRX835W 15-inch 1500W 3-Way Powered PA Speaker Features:

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue
• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive® transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4" and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
• Universal power supply for worldwide compatibility
• dbx Type IV™ limiting ensures clear, accurate sound at high volumes
• Brutal testing regimen - including the famous JBL 100-hour power test-ensures reliable performance

APPLICATIONS

• This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLFW, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.
• The PRX835W is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth with remote Wi-Fi control of onboard DSP EQ parameters. The PRX835W is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

• All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

• For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.
• The PRX825W is a self-powered, lightweight two-way loudspeaker system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX825W is capable of delivering a very high level of performance over a wide bandwidth. The PRX825W is comprised of two 380 mm (15 in) 275 Differential Drive® woofers, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
• All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

JBL PRX835W 15-inch 1500W 3-Way Powered PA Speaker Specifications:

• System Type Self Powered 15", three-way, bass-reflex
• Maximum SPL Output 138 dB peak
• Frequency Range (-10 dB): Normal: 41 Hz - 20 kHz
• Boost: 41 Hz - 20 kHz
• Frequency Response (±3 dB) Normal: 50 Hz - 18.25k
• Boost: 48 Hz - 20k
• Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
• Signal: Green LED indicates signal present
• Power: Blue indicates system has power and ready to pass audio.
• EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
• Dynamic Control (Input) dbx Type IV™ limiter circuit
• Crossover Frequency 580 Hz, 2.1 kHz
• Design Highly efficient Class-D amplifier
• Power Rating 1500W (750W x 2)
• AC Power Input 100V - 240V ~ 50/60 Hz
• LF Driver 1 x JBL 275G 380 mm (15 in) woofer
• MF Driver 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
• HF Driver 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
• Coverage Pattern 90° x 50° nominal
• Directivity Index (DI) 10.5 dB
• Directivity Factor (Q) 11.2
• Enclosure Trapezoidal, 18 mm, plywood
• Suspension / Mounting 12 x M10 Suspension Points
• Transport 2 x integrated handles with injection molded backing cup
• Finish Obsidian DuraFlex™ finish
• Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D) 938 mm x 446 mm x 539 mm
• (36.9 in x 17.5 in x 21.2 in)
• Net Weight 34.9 kg (77.0 lb)
• Gross Weight 38.6 kg (85.0 lb)

Most Popular Accessories & Related Items

<

JBL PRX825W

$1775.99

JBL PRX908

$799.99

JBL PRX912

$999.99

JBL PRX915

$1099.99

JBL Bags PRX835W-CVR

$149.99

>

Frequently Asked Questions (FAQ)

What is the power output of the JBL PRX835W?

The JBL PRX835W delivers 1500W of professional-grade audio through its built-in Class D amplifier, providing powerful, clear sound for live events, DJs, and large venues.

Is the JBL PRX835W a powered speaker?

Yes, the PRX835W is a self-powered PA speaker, meaning it has a built-in amplifier and does not require an external amp.

What type of events is the JBL PRX835W suitable for?

This 3-way powered speaker is ideal for concerts, DJ performances, festivals, touring, and both indoor and outdoor events needing full-range, high-impact audio.

Does the JBL PRX835W support 3-way audio?

Yes, it is a 3-way system with a 15-inch low-frequency driver, mid-frequency driver, and high-frequency driver for balanced, full-range sound.

Does the JBL PRX835W include DSP control?

Yes, it features advanced DSP technology for tuning, system optimization, and consistent sound performance across different venues.

Can the JBL PRX835W be used outdoors?

Yes, it is suitable for both indoor and outdoor setups, making it perfect for festivals, large-scale events, and touring applications.

What makes the JBL PRX835W different from other PA speakers?

The combination of 3-way design, 15-inch woofer, 1500W power, built-in DSP, and rugged construction delivers professional, high-impact, and reliable sound for demanding applications.
