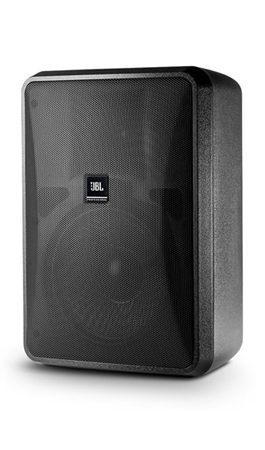

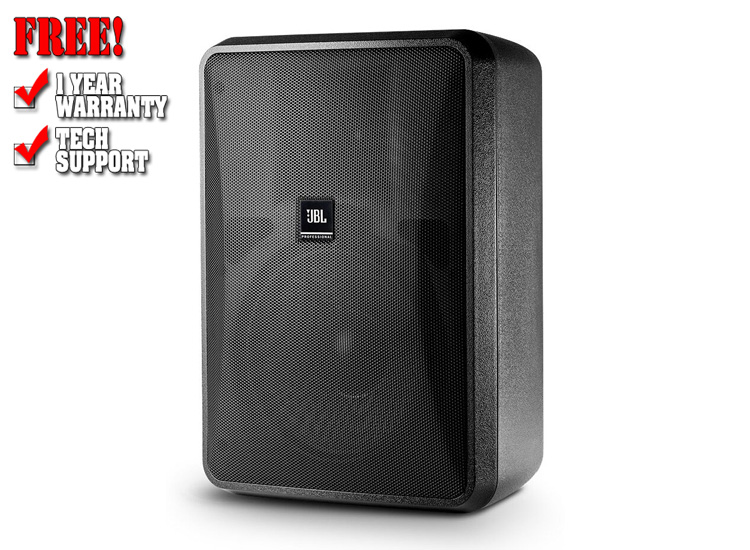

JBL Control 28-1 Surface Mount Speaker (Passive)
The Control 28-1 is a two-way 8" speaker with rich sonic character, wide-coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
- 8" woofer with woven fiberglass cone
- 1" PEI diaphragm tweeter with fluid cooling
- Contemporary, high-design appearance
- Built-in InvisiBall mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100 degrees x 100 degrees coverage
- 120 Watt power handling (240 Watt program) in direct 8O setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 45 Hz - 20 kHz.
- Frequency Range (-10 dB): 45 Hz to 20 kHz
- Frequency Response (+/-3 dB): 62Hz - 16 kHz
- Power Rating: 240 W Continuous Program (2 hrs) 120 W (480W peak), Continuous Pink Noise (2 hrs) 90 W (360W peak) Continuous Pink Noise (100 hrs)
- Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
- Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
- Sensitivity: 91 dB, 1W/1m (ave. 100 Hz - 10 kHz)
- Coverage Angle: 100 degrees x 100 degrees
- Directivity Factor (Q): 7.3 (averaged 1kHz - 16kHz)
- Directivity Index (DI): 8.3dB (averaged 1kHz - 16kHz)
- Nominal Impedance: 8 ohms (THRU setting)
- Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
- Transformer Taps: 70V; 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W Insertion Loss: < 0.94 dB at any tap setting Thru Setting: 8O nominal
- Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct) for 8O operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
- Low Frequency Driver: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
- High Frequency Driver: - 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
- Enclosure Material: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
- Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
- Installation: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
- Environmental: IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.
- Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
- Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876
- Colors: Black (RAL9004) or white (-WH, RAL9016)
- Dimensions: (H x W x D) - 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
- Net Weight: 6.8 kg (15.0 lbs)
- Shipping Weight: 15.4 kg (34 lbs) pair-packed (for 2 speakers)
- Included Accessories: InvisiBall wall-mounting system), 6 mm x 180 mm hex key
- Optional Accessories: TC-28UB-1 – Yolk-type U-bracket (&-WH) MTC-28WMG-1 – WeatherMax grille with backing (&-WH) MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)
Dimensions and Weight in Packaging
- Shipping Weight: 32.75 lbs
- Shipping Dimensions: 23 x 18 x 14 in
- Manufacturer Part Number (MPN): CONTROL 28-1
