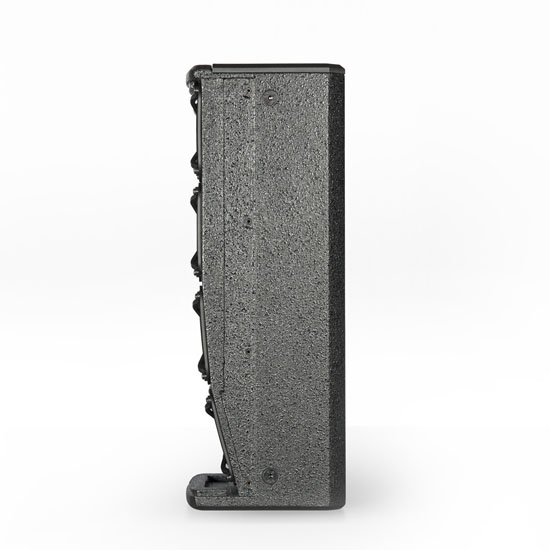

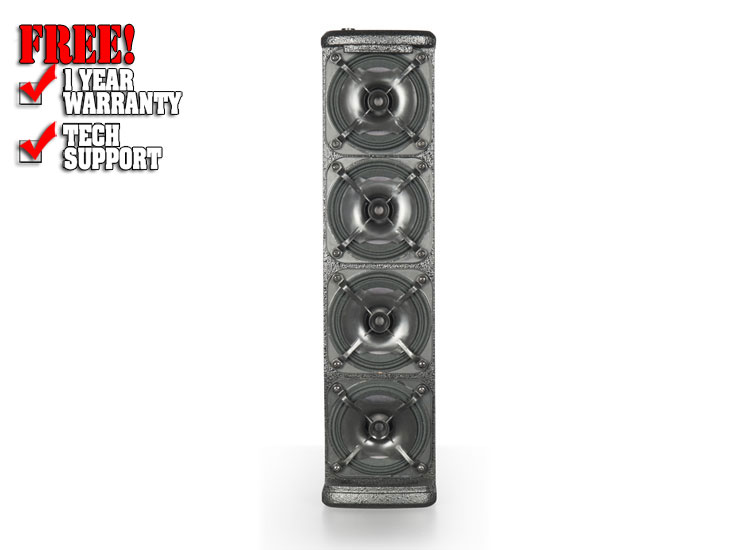

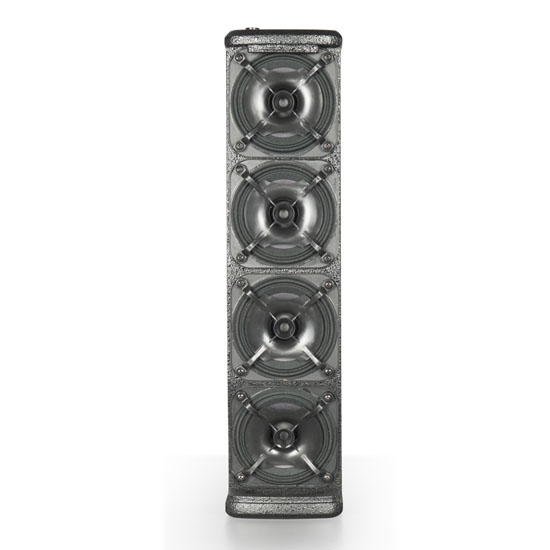

dB Technologies ES 1203 TOP

The ES 1203 TOP is the satellite of ES 1203 System. It's a passive speaker featuring 4x4" mid-woofers, whose alignment allows an asymmetrical vertical coverage (thanks to the Logarithmic Curved Column Array technology). The unique design of phase plugs widens the horizontal coverage and guarantees a perfect intelligibility.

Specifications:

• Technical Data
• • Speaker Type : Passive Speaker
• Acoustical data
  • Frequency Response [-6dB] : 140 - 18000 Hz
  • Max Power : 100 W Peak
  • MF - HF : 4x4", v.c. 1"
  • Type MF - HF : Neodymium
  • Directivity : 97x60°
• Input
  • Audio Connector : 4-Pole Speakon
• Mechanics
  • Housing (Tops) : Plywood with full metal grille
  • Pole Mount : 36 mm (M20 Thread)
  • Width (Top) : 110 mm (4.33 in)
  • Height (Top) : 460 mm (18.11in)
  • Depth (Top) : 160 mm (6.30 in)
  • Weight (Top) : 3.3 Kg – 7.27 lbs.
