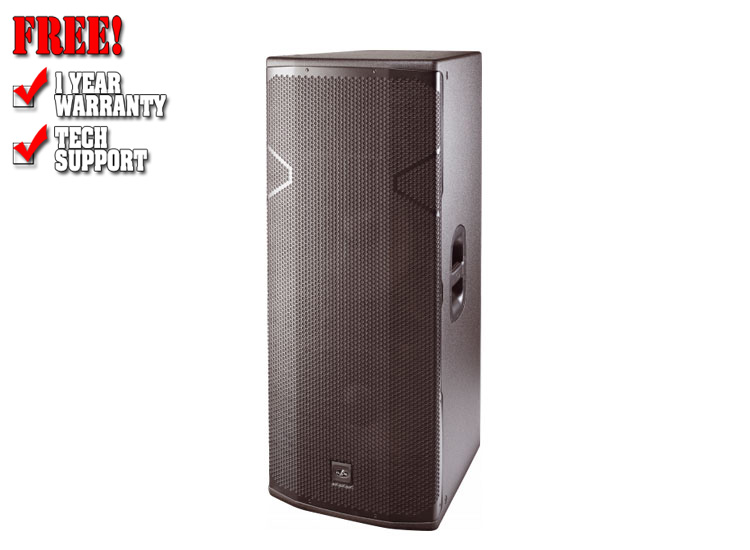

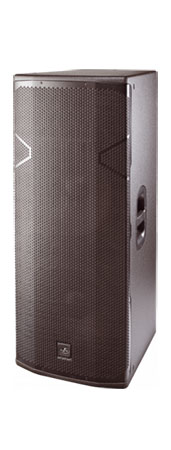

DAS VANTEC-215

The VANTEC-215 is a 2 way passive full range loudspeaker utilizes two 15° FV series bass loudspeakers for extra low frequency punch and higher SPL. High frequencies are handled by a 1° FEM optimized compression driver. The trapezoidal cabinet is constructed using Birch plywood and protected with a hard wearing DAS ISO-flex black paint finish.

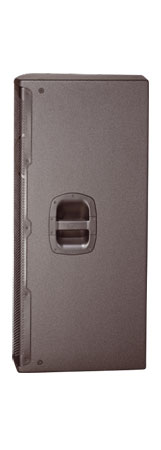

Two bar handles with soft rubber inserts and a steel grille sealed against corrosion using a polyamide powder coat finish are provided. Rigging points provide a safe and simple way to fly the VANTEC-215 cabinets.

Features

• 2-way, full range system
• 2 x 15° FV series loudspeakers
• 1" FEM optimized compression driver
• Two steel reinforced handles with soft rubber inserts

Performance

• Frequency Range (-10 dB) 55 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 50°
• Nominal Impedance 4 ohms
• RMS Power Handling 1000
• Peak Power Handling 4000
• On-axis Sensitivity 1W/1 m 102 dB SPL
• Maximum Peak SPL at 1 m 138 dB
• Recommended Amplifier PA-2700
• Recommended Processor DSP-226

Connectors

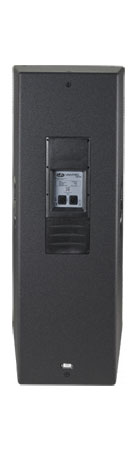

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Trapezoidal
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Depth 505 mm (19,9 in)
• Dimensions ( H x W x D ) 1.090 x 445 x 505 mm
• 42,9 x 17,5 x 19,9 in
• Net Weight 42,0 kg ( 62,5 lb )

Components

• LF Driver 15FV
• HF Driver M-28
• Horn/Waveguide BC-95

Shipping

• Carton Dimensions ( H x W x D ) 1.195 x 536 x 581 mm
• 47,0 x 21,1 x 22,9 in
• Shipping Weight 45,0 kg ( 99,2 lb )
