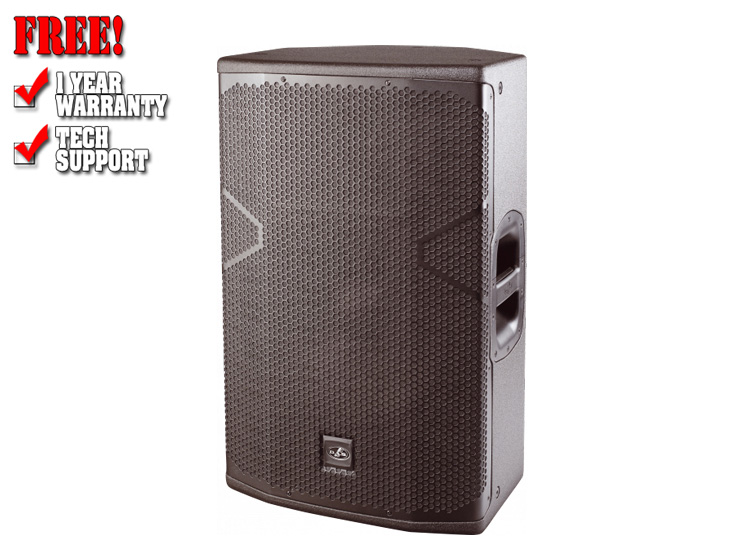

DAS VANTEC-15

The VANTEC-15 is a 2 way passive full range loudspeaker that utilizes a 15" FV series low frequency transducer and a 1" FEM optimized compression driver.

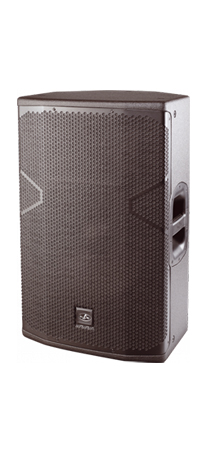

The multi angle cabinet is constructed of Birch plywood protected by the DAS ISO flex black paint finish. Two bar handles with soft rubber inserts and a rugged steel grille are provided. A 35 mm tripod socket with dual angle (0°/10°) allows for stand mounting.

Features

• 2-way, full range system
• 15" FV series bass loudspeaker
• 1" FEM optimized compression driver
• Enclosure design allows for stage monitor use
• Built-in rigging points
• DualAngle (0°/10°) poleMount socket

Performance

• Frequency Range (-10 dB) 60 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 50°
• Nominal Impedance 8 ohms
• RMS Power Handling 500
• Peak Power Handling 2000
• On-axis Sensitivity 1W/1 m 99 dB SPL
• Maximum Peak SPL at 1 m 135 dB
• Recommended Amplifier PA-1500
• Recommended Processor DSP-226

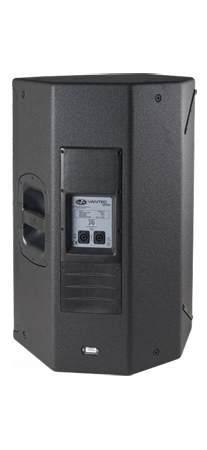

Connectors

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Trapezoidal
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Depth 380 mm (17,5 in)
• Dimensions ( H x W x D ) 720 x 445 x 380 mm
  28,3 x 18,0 x 17,5 in
• Net Weight 23,5 kg ( 51,8 lb )

Components

• LF Driver M-28
• HF Driver 15FV
• Horn/Waveguide BC-95

Shipping

• Carton Dimensions ( H x W x D ) 815 x 451 x 526 mm
  32,1 x 17,8 x 20,7 in
• Shipping Weight 26,0 kg ( 57,3 lb )
