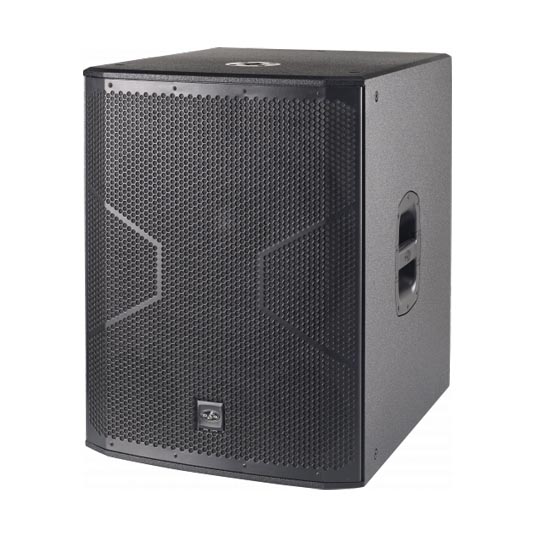

DAS ALTEA-718

The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3" voice coil for long excursion. Cooling is assured thanks to the 18FW's vented pole piece and abundant apertures in the speaker's back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.

Features

• Companion subwoofer system
• High efficiency 18" loudspeaker
• Compact Birch plywood enclosure

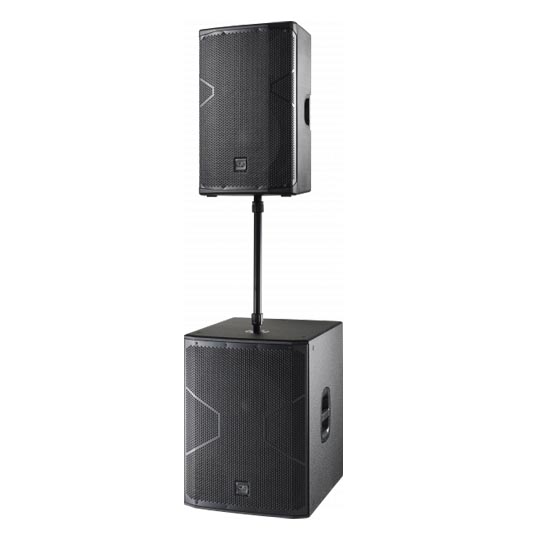

• Pole mount socket for satellite systems

Applications

• Concerts and corporate A/V
• Portable and live clubs
• Theaters and auditoriums
• Houses of worship

Specifications

• Performance
  • Frequency Range (-10 dB) : 45 Hz - 138 Hz
  • Nominal Impedance : 8 ohms
  • RMS Power Handling : 600 W
  • Peak Power Handling : 2400 W
  • On-axis Sensitivity 1W/1 m : 98 dB SPL
  • Maximum Peak SPL at 1 m : 134 dB
  • Recommended Amplifier : PA-1500
  • Recommended Processor : DSP-226

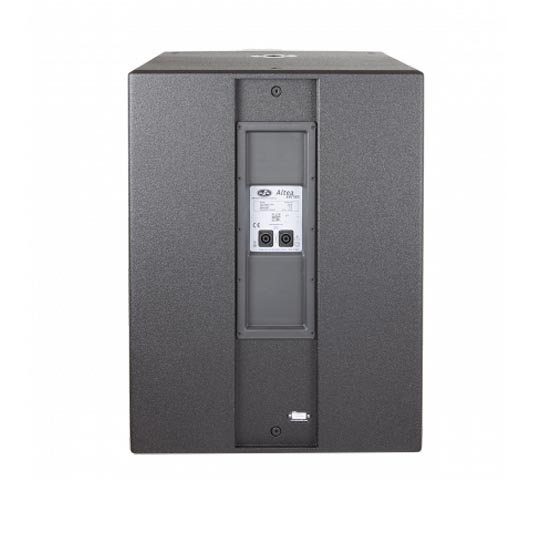

• Connectors
  • Audio Input Connector : 1 x speakON NL4
  • Audio Output Connector : 1 x speakON NL4
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Rectangular
  • Rigging : M10 Rigging Points
  • Finish : ISO-flex Paint
  • Color : Black
  • Depth : 650 mm (25,6 in)
  • Dimensions ( H x W x D ) : 720 x 545 x 650 mm, 28,4 x 21,5 x 25,6 in
  • Net Weight : 40,5 kg ( 89,3 lb )
• Components
  • LF Driver : 18FW
• Shipping
  • Carton Dimensions ( H x W x D ) : 820 x 600 x 700 mm, 32,3 x 23,6 x 27,6 in
  • Shipping Weight : 44,5 kg ( 98,1 lb )
