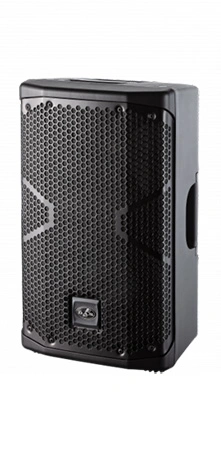

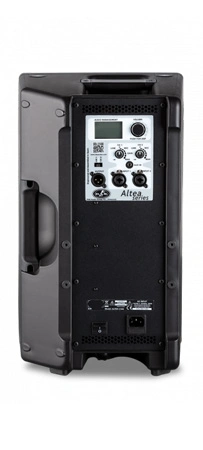

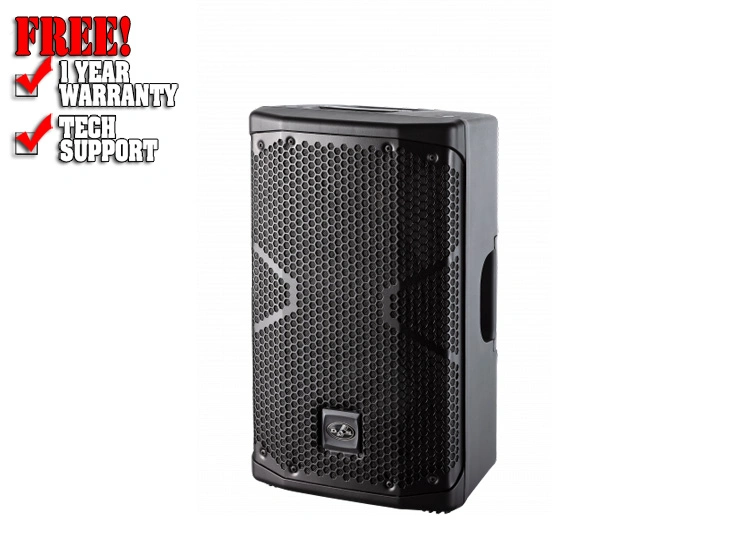

DAS ALTEA-408A

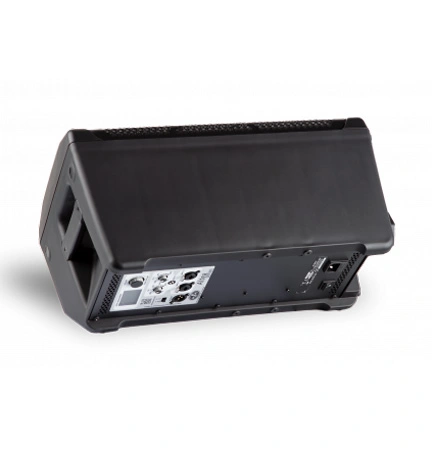

The ALTEA-408A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.

The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.

Technical Information

Performance

• Frequency Range (-10 dB) 70 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 90°
• Maximum Peak SPL at 1 m 123 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 400 W
• Nominal Amplifier Power (peak) 800 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)
• Audio Signal Input Connector 2 x Female XLR
• AUX Input 1 x 3.5 mm Mini Jack
• Audio Signal Loop Thru Connector 1 x Male XLR
• Control DAScontrol™
• Current Draw 230 V / 115 V 0.8 A/1.6 A

Enclosure

• Enclosure Construction Polypropylene
• Enclosure Geometry Trapezoidal
• Rigging M8 Rigging Points
• Finish Textured
• Color Black
• Dimensions ( H x W x D ) 480 x 280 x 260 mm
  18,9 x 11,0 x 10,2 in
• Net Weight 9,5 kg ( 20,9 lb )

Components

• LF Driver 8GV
• HF Driver M-32

Shipping

• Carton Dimensions ( H x W x D ) 550 x 350 x 340 mm
  21,6 x 13,8 x 13,4 in
• Shipping Weight 13,0 kg ( 28,6 lb )

Features

• Lightweight multi-purpose system with monitor position
• Ultra lightweight Class D amplifier with SMPS
• User definable 24-bit DSP with LCD screen
• Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
• Stackable 3-band EQ
• Standby Mode
• Rigging points

Applications

• Live sound reinforcement
• Speech and vocals
• Music playback in entertainment
• A/V, and institutional venues

  What type of speaker is the ALTEA-408A?
A: It is a powered (active) 2-way PA speaker, meaning it has a built-in amplifier and does not require an external amp.

  What is the power output?
A:

• 400W RMS
• 800W peak

  Can it be used without a mixer?
A: Yes. The speaker includes:

• Mic/Line inputs (XLR)
• AUX input (3.5mm)

  Is it good for DJ use?
A: Yes, but mainly for:

• Small gigs
• Monitor use

  Does it have Bluetooth?
A: No, the ALTEA-408A does not include Bluetooth.

<
