DAS ACTION-525A

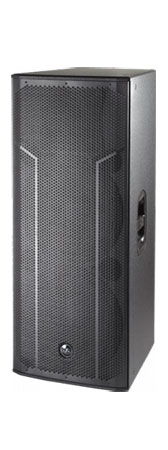

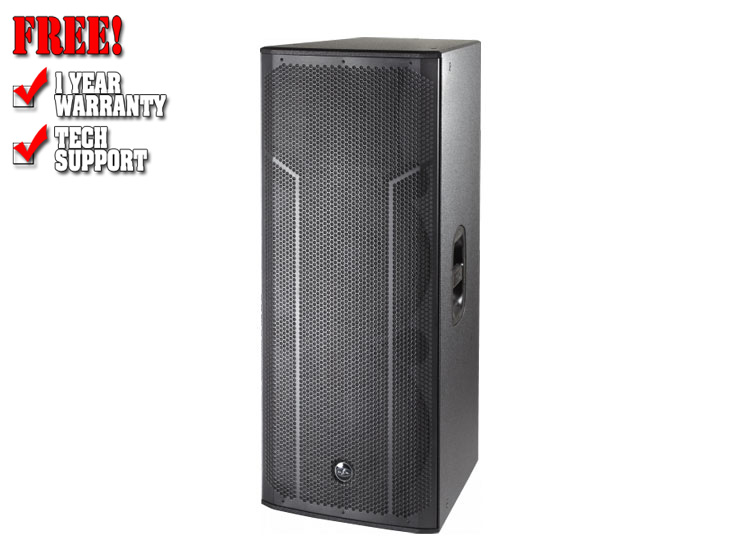

ACTION-525A is an active system composed of two 15MI speakers that deliver a greater SPL than the simple 15" plus enhanced bass for events that require both powerful sound and simple adjustment.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series' full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.

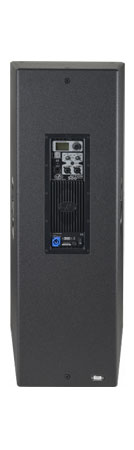

The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Features

• Active biamp system
• Dual-channel 1000 Wpeak Class D amplifier
• Birch plywood enclosure
• Durable ISO-flex paint
• DAScontrol™ interface for easy setup and adjustment
• DSP with presets and LCD screen

Technical Data

Performance

• Frequency Range (-10 dB) 45 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 60°
• Maximum Peak SPL at 1 m 134 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 500 W
• Nominal Amplifier Power (peak) 1000 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)
• Audio Signal Input Connector 2 x Female XLR
• AUX Input 1 x 3.5 mm Mini Jack
• Audio Signal Loop Thru Connector 1 x Male XLR
• Control DAScontrol™
• Current Draw 230 V 1.1 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Trapezoidal
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D ) 1.090 x 445 x 515 mm
• 42,9 x 17,5 x 20,3 in
• Net Weight 39,5 kg ( 87,1 lb )

Components

• LF Driver 15MI
• HF Driver M-44
• Horn/Waveguide BC-916

Shipping

• Carton Dimensions ( H x W x D ) 1.165 x 515 x 560 mm
  45,9 x 20,3 x 22,1 in
• Shipping Weight 43,5 kg ( 95,9 lb )
