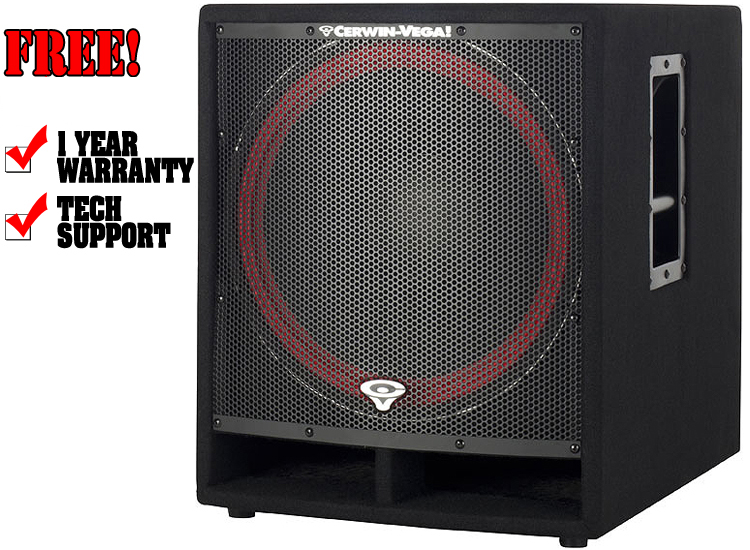

Cerwin Vega CVi-118s

Description

The CVi-118S is a portable, eighteen inch dedicated subwoofer system designed to extend and supplement the low frequency extension of CVi full range systems in live music and playback applications. The CVi-118S features a high power, cast frame eighteen inch transducer with a 3" voice coil for extended use during high SPL applications. Steel handles and pole mount cup are also featured for use as a base for pole mounted full range systems.

Applications:

• Portable live sound PA
• DJ system PA
• Auditoriums
• Drum monitor sub
• Clubs
• Outdoor stages

Featured Data:

• Model - CVi-118S
• System Configuration - Dedicated subwoofer
• Connections - 2 ea.–¼" Phone Jack and Neutrik Speakon
• Low Frequency System - Reflex loaded 18" transducer
• High Frequency System - N/A
• Enclosure Type - Vented, polygon
• Enclosure Structure - 18mm OSB, internal bracing
• External Covering - Black polypropylene fiber
• Grille Material - 18 gauge black powder coated steel

Performance Data:

• Frequency Response - +/- 3 dB 45 Hz–200 Hz
• Operating Range - -10 dB 32 Hz
• Nominal Impedance (Ohms) - Full Range 8 Ohms
• Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 95 dB
• Calculated Maximum Output (dB SPL, @ 1M) - Full Range 126 dB
• Power Handling (Watts) - 2500 Watts
• Nominal Directivity / -6dB points (Degrees) - Horizontal: N/A / Vertical: N/A

• Weight: 79.5 Lbs.
• Dimensions: 24.25" x 20" x 24.75"
