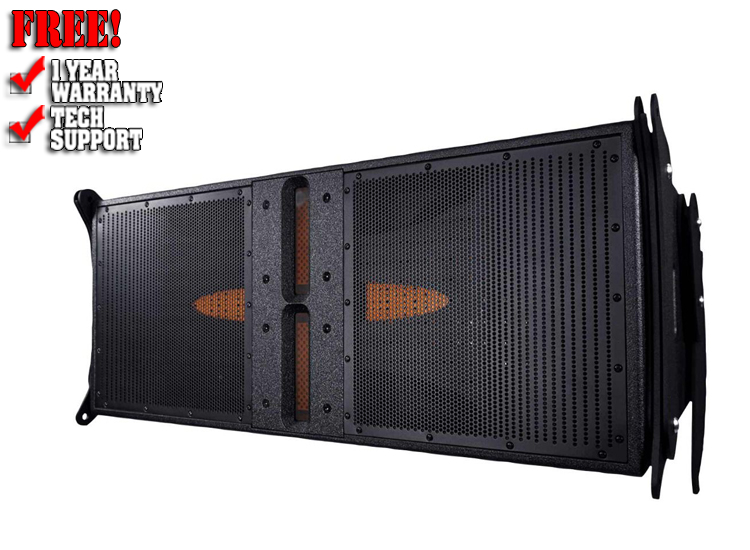

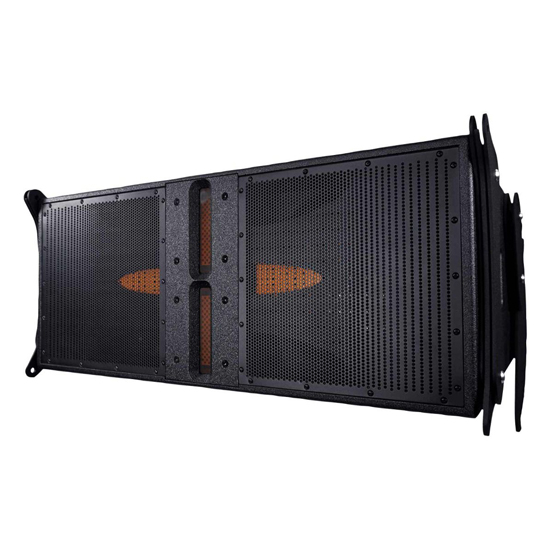

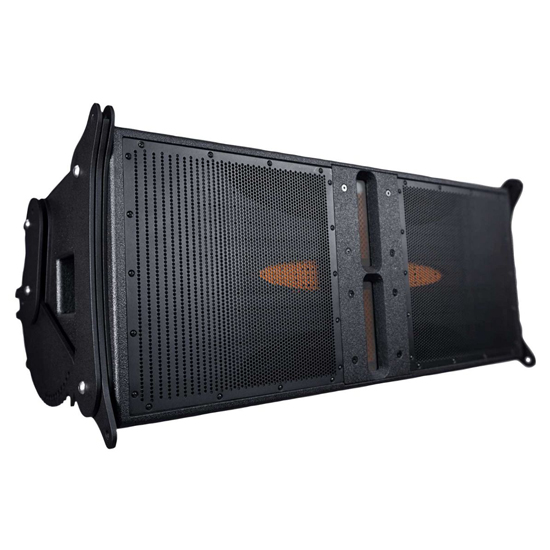

BASSBOSS MFLA-MK3 Dual 12" Powered Active Line Array

MFLA-MK3 Dual 12" Powered Line Array. Simply indescribable output, pristine clarity, and exceptional expandability. You don't follow the crowd, you wow the crowd. You seek out the best, not the best known. You're known for breaking new ground. You probably have some choice words for anyone who tells you what to do. The coverage pattern of a line array is defined by patterns of destructive interference. The optimal design minimizes destructive interference in areas where high SPL is desired. The MFLA is to be deployed where high SPL is desired.

The performance of the MFLA is the result of breaking from convention, of following only the laws of physics and of making unorthodox choices. Most line-array marketing is intended to make the manufacturer look smart without telling you anything. Let's make you look smart instead. A line array that provides so much output that you certainly won't need as many of them as anything else. Loaded with Neodymium 12" woofers and 3" VC compression drivers, featuring fixed-hinge flyware that also facilitates ground-support deployment and a DSP-equipped 3200 Watts of amplification with remote control.

Features:

• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: Horizontally Symmetrical 2-way Dual 12", Self-powered, Vented, direct-radiating Line Array Element with Pressure-Phase Distributed midrange loading and isophasic high-frequency wave guides.
• Frequency Response (±3 dB): 60 - 18,000Hz
• Maximum Sustained Output: 136dB
• Max SPL (Peak)*: 142dB
• Nominal Dispersion (H° x V°): 120 Horizontal, Array Dependent vertical
• Amplification: 3200 Watts Class D
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP - IP65 rated waterproof connectors
• Electrical Connector Mains: Linking Cable, True 1 TOP - Mains Connector Ordered Separately
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 4.6 Amps (Nominal)
• Current Draw 240V: 2.3 Amps (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Transducer Low Frequency: 2 x 12 in. diameter (300mm) Neodymium motor woofer with 3.5 in. (88mm) voice coils, waterproof cone
• Transducer High Frequency: 2 x 3 in. (76mm) diameter diaphragm compression drivers with 1.4" (35mm) exits mounted to isophasic wave guides

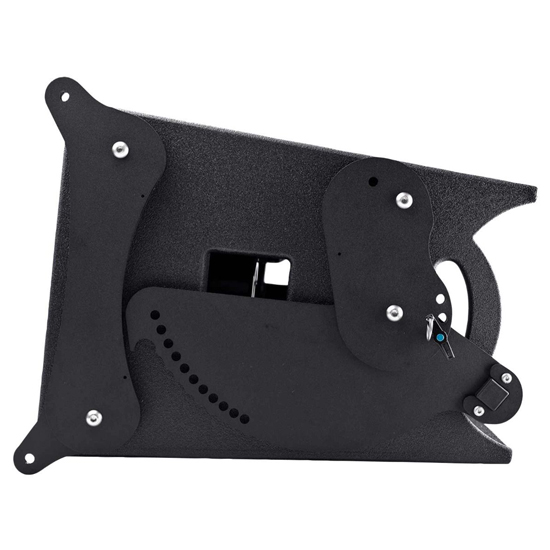

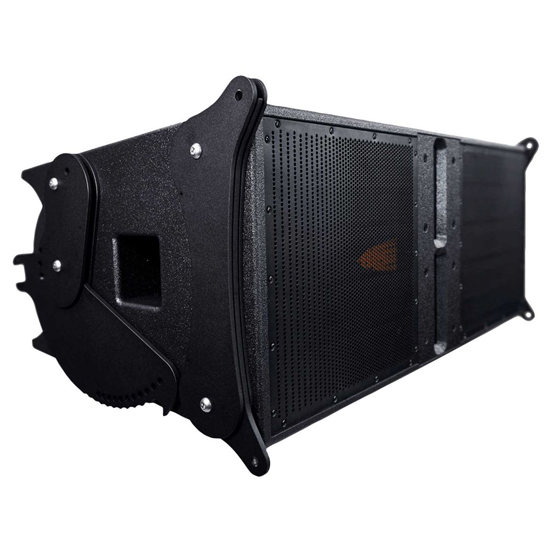

• Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery. External flyware and linking mechanism with 2 x integrated Handles
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 16.125 in. x 40.5 in. x 20.375 in. (Including Flyware)
• Net Weight: 104 lbs
• Shipping Weight: 130 lbs
• What's Included: Loudspeaker, 4 x 10mm ball-lock pins, manual, and linking power cable
• Optional Covers: Multi-box soft covers for up to 4 cabinets when on a rolling cart
• Optional Dollies: Aluminum Transport and Deployment Cart for transporting up to 5 cabinets or 4 cabinets and 1 bumper
• Optional Hardware: Rigging Frame/Bumper Bar, Interlink Hardware for VS21 subwoofer
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS MFLA-MK3 Dual 12" Powered Active Line Array
• (4) 10mm Ball-Lock Pins
• (1) Manual
• (1) Linking Power Cable

  What type of speaker is the MFLA-MK3?
A: It is a dual 12-inch powered line array module, designed for large-scale sound reinforcement like concerts and festivals.

  Is the MFLA-MK3 a standalone speaker?
A: No. It is meant to be used in multiple-unit arrays (flown or stacked) for proper coverage and performance.

  Does it produce bass on its own?
A: It provides mid-bass, but for full low-end you must pair it with subwoofers (SSP, ZV, etc.).

  What is ControlBASS software?
A: It is BASSBOSS's system control platform for:

• Remote tuning
• Preset management
• System monitoring

  How are multiple units connected?
A: They are linked using:

• Signal (XLR)
• Power (PowerCON)
• Rigging hardware for physical alignment

<
