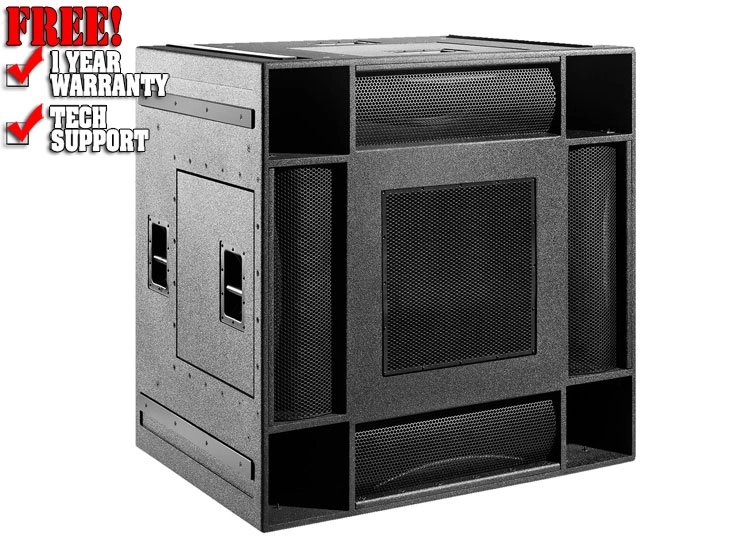

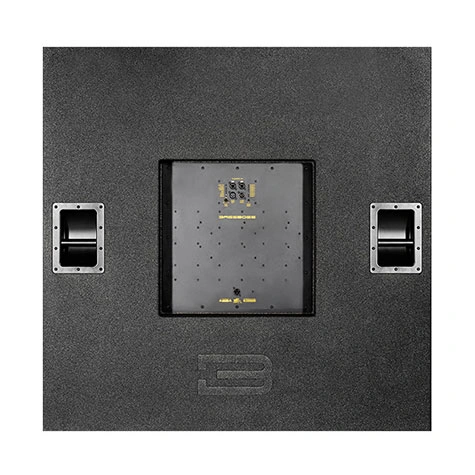

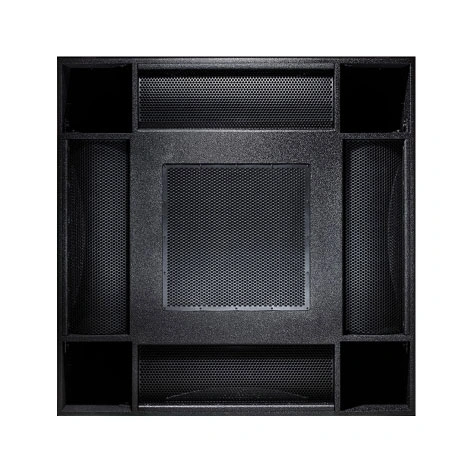

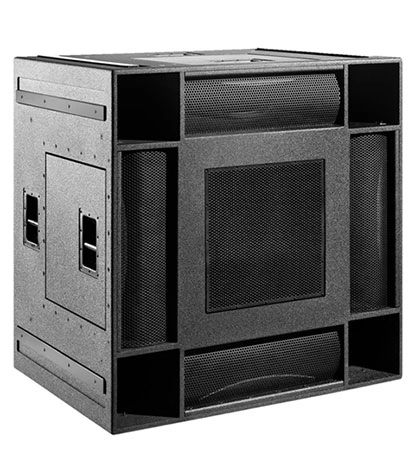

BASSBOSS KRAKATOA MK3 Quintuple 18" Point Source Full Range Loudspeaker

Engineered to deliver explosive impact from the smallest space possible, this single loudspeaker covers the entire audible spectrum. The Krakatoa focuses its output of seismic bass, crystal-clear highs, and everything in between, from a single point.

Kicks Some Serious Ash

Start with four 18" subs in a sixth-order band-pass enclosure for high impact and extended depth. Add an 18" mid-bass driver in a sealed enclosure for tight control. Right through the middle, fire a very serious mid-high horn with a state-of-the-art co-axial compression driver to provide pristine, high-efficiency high-frequencies.

Seismic Sound

The Krakatoa delivers all sounds seamlessly from a single point. This ensures the most naturally realistic listening experience that a loudspeaker can produce. Practically eliminating phase interference affords superior sound localization, which allows more precise imaging, immersing listeners in an immense, sharply focused sound field. This is the real immersive.

Volcanic Volume

The Krakatoa is a true full range – from deep, powerful bass to crisp highs, delivering every note with clarity and precision. Its 4-way design assigns each frequency range to dedicated drivers, reducing distortion and ensuring balanced, dynamic sound even at high volumes. How big does it sound? If you hear it before you see it, you won't believe how small it is

You'll Lava It!

The Stack-a-Toa combines the Kraken Quad 21" Subwoofer, the Makara Double 21" Subwoofer, and the Krakatoa into a vertically stacked powerhouse of sound, delivering massive SPL from a remarkably small “dance stack" design.

Specification

• Loudspeaker Description - 4-Way Quintuple 18" Powered Co-axial Point Source Full Range
• Frequency Response (±3 dB) - 25 - 19,000Hz
• Maximum Sustained Output - 142 dB 1m (half-space)
• Max SPL (Peak)* - 145 dB 1m (full-space)
• Nominal Dispersion (H° x V°) - 60 x 40 (25 down, 15 up)
• Amplification - 7500W Class D, 5000W LF, 1600W MLF, 600W MHF, 300W HF
• Processing - Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp - Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
• Electrical Connector Mains - USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside USA alternate connectors provided
• Voltage Operating Range - 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V - 13.75A (nominal)
• Current Draw 240V - 7A (nominal)
• Signal Input Connector - XLR-F
• Signal Output Connector - XLR-M (direct pass-through only)
• Enclosure Type - 4-Way Full-Range Single Axis Point Source. Vented Short-Horn (6th order) Low Frequency section, Co-axially positioned acoustic suspension Mid-Bass section with a Co-axially horn-loaded Midrange and High Frequency section through its center.
• Transducer Low Frequency - 4 x 18 in. diameter (450mm) neodymium motor woofers with 4 in. (100mm) voice coils, waterproof cones
• Transducer Mid Frequency - 18 in. diameter (450mm) neodymium motor bass driver with 4" (100mm) voice coil
• Transducer High Frequency - Co-axial compression driver featuring a 4 in. (100mm) diameter Ring diaphragm midrange and a co-axially positioned 2.5" (64mm) voice coil ring diaphragm tweeter exiting via a 2" (51mm) throat horn mounted through the center of the 18" Woofer’s pole piece
• Cabinet Construction - CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 16 M10 fly-points. 8 Steel bar handles. 8 Interlocking UHMWPE Sliders.
• Exterior Finish - High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille - Perforated, powder-coated steel
• Dimensions (HxWxD) - 48 in. x 48 in. x 36 in.
• Net Weight - 470 lbs. (213 kg)
• Shipping Weight - 560 lbs. (254 kg)
• What's Included - Loudspeaker, 15’ (5m) Power Cable, Manual, Warranty Card
• Optional Covers - Heavy-duty padded nylon transport cover
• Optional Dollies - Birch plywood flat cart with 4 locking wheels and recesses to accept the cabinet sliders. Transports 1 or 2 cabinets
• Optional Hardware - M10 Shoulder Eye Bolts, M10 Side-Pull anchors

  What type of speaker is the Krakatoa MK3?
A: It is a 4-way active point-source full-range loudspeaker with built-in amplification and DSP.

  Why is it called “Quintuple 18”?
A: Because it contains:

• 5 × 18-inch drivers
• 4 for low frequencies
• 1 for mid-bass

  Does it need a subwoofer?
A: No.

• Frequency response: 25 Hz – 19 kHz
• That already includes true sub-bass

  What is the cabinet design?
A:

• Hybrid 6th-order bandpass + horn-loaded
• Birch plywood construction
• Weather-resistant finish

  Can it be used in a larger system?
A: Yes — part of the Stack-a-Toa system:

• Krakatoa (full-range)
• Kraken (quad 21" subs)
• Makara (dual 21" subs)
