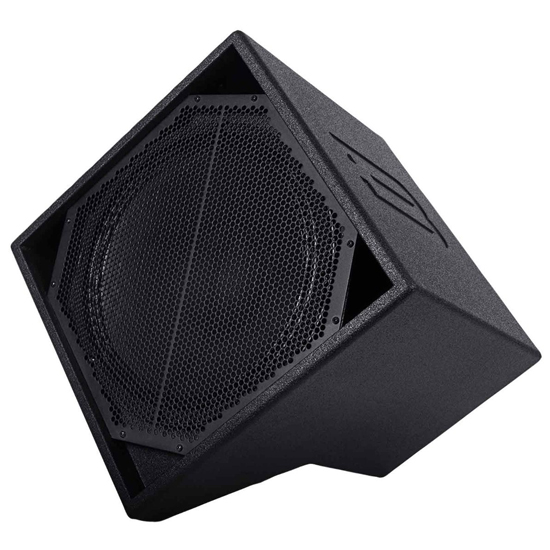

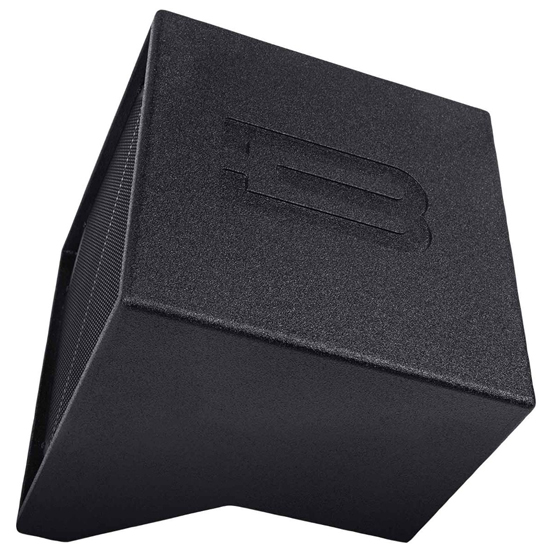

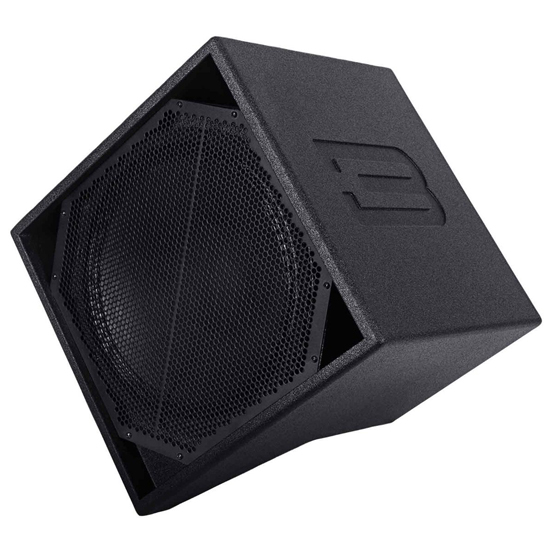

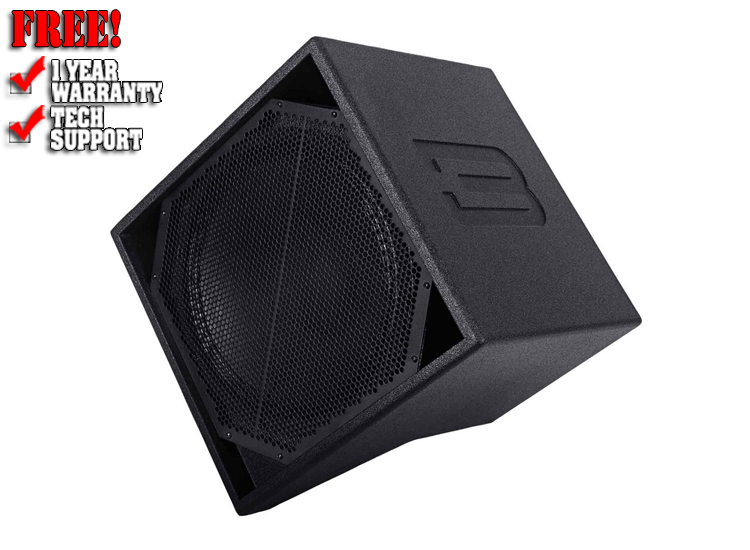

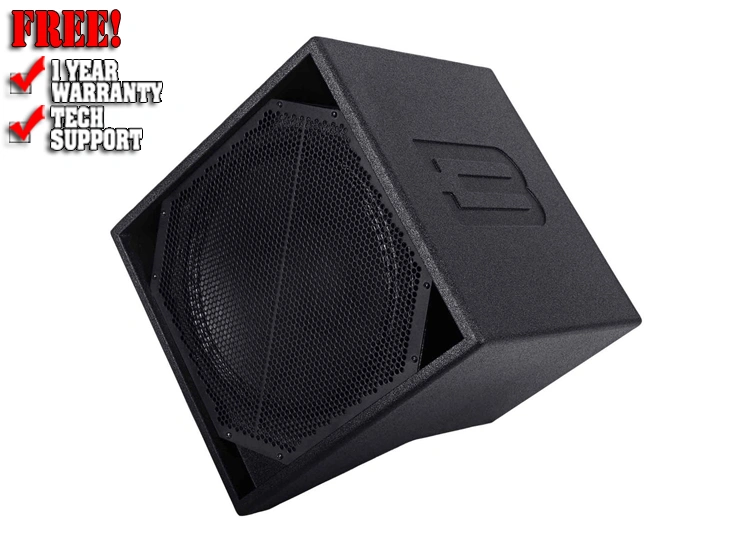

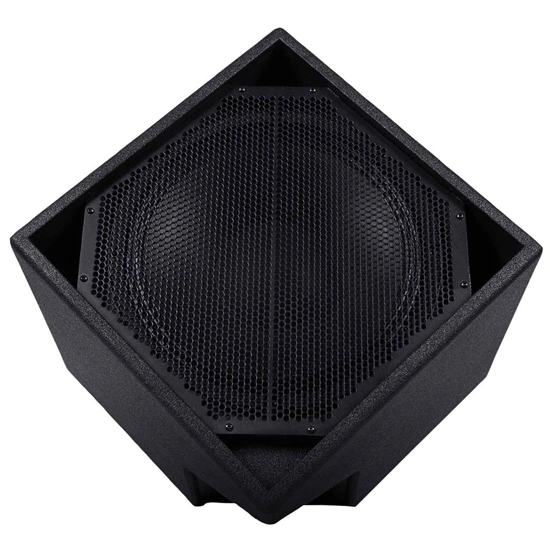

BASSBOSS DiaMon 112 Passive 12" coaxial PA speaker Black

The DiaMon-MK3 is a high-output, point-source loudspeaker that can make your life easier thanks to its remarkably small size. This very compact and portable system provides impressive output without ever having to lift a large, heavy cabinet. In terms of output SPL relative to size, the DiaMon-MK3 has virtually no competitors. The compact, high fidelity and high output DiaMon-MK3 continues the BASSBOSS tradition of delivering remarkable output capability and outstanding sound quality. Achieving this level of performance from such a small enclosure is made possible by making decidedly different design and component choices.

The cabinet is made from Birch plywood, which is strong and solid, and the small size makes it very easily portable. The small size is made possible by the use of a co-axial driver in a sealed enclosure. With the high-frequencies exiting co-axially through the center of the woofer, no extra space is required for the addition of a high-frequency horn. The low and midrange frequencies are produced by a high-sensitivity 12" cone woofer with a 3" voice coil and a neodymium magnet. The same magnet is used for the 3" diaphragm high-frequency compression driver, the 1.4" output of which passes through the woofer's pole-piece. The inner surface of the pole-piece is machined into the shape of a horn. The woofer cone is the continuation of that horn, making it possible to generate very high output from a very small total surface area. The resulting coverage pattern is 80 degrees conical, permitting a large coverage area and a great deal of placement options. A significant advantage of co-axial loudspeakers is the consistency of their off-axis response. Aside from delivering a more consistent and intelligible sound field, this also makes them much more resistant to feedback. The amplifier features a Class D SMPS with PFC, providing two channels, 900W LF and 300W HF. Eight on-board presets allow for a variety of configurations at the touch of a button, and LAN connectivity allows access to virtually unlimited preset combinations.

Features:

• DiaMon-MK3 Single 12" Powered Top.
• Sweet sound, signature shape, simply smashing sophistication.
• The DiaMon doesn't waste any energy or space trying to deliver the lows that the subs can handle perfectly well.
• Its power is concentrated on the very important job of delivering loud, clear mids and highs.
• Enough to keep up with several large subs.
• A high-efficiency 12" midrange/woofer with a 3" compression driver tweeter firing through the middle is loaded into a cabinet that's as small as possible, just big enough to hold the driver, the 1200W amp and the DSP electronics.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: 2-Way Single 12" Self-Powered Direct Radiating Co-axial Point Source Mid-High
• Frequency Response (±3 dB): 80 - 18,000Hz (Full Range - Preset 1)
• Maximum Sustained Output: 123dB
• Max SPL (Peak)*: 126 dB (Limited in full-range)
• Nominal Dispersion (H° x V°): 80 x 80 (Conical)
• Amplification: 1200 Watts Class D, 2 Channel
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 1.4 Amps (Nominal)
• Current Draw 240V: 0.7 Amp (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: 2-way active mid-high. Direct radiating sealed 12" LF, co-axial horn-loaded HF
• Transducer Low Frequency: 1 x 12 in. diameter (300mm) neodymium motor woofer with 3 in. (76 mm) copper winding voice coil
• Transducer High Frequency: 1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4" (35mm) exit through 80 degree conical wave guide machined from aluminum pole piece in the center of the midrange driver
• Cabinet Construction: CNC machined 18 and 15mm Birch plywood with dado joinery. 1 x 35mm steel pole socket
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 14 in. x 14 in. x 13.5 in.
• Net Weight: 30.6 lbs
• Shipping Weight: 36 lbs
• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
• Optional Covers: Heavy-duty padded nylon transport cover
• Optional Hardware: Ceiling Mounts, Wall Mounts
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS DiaMon 112 12" Remote Powered Top Passive Loudspeaker - Enamel Black
• (1) 15' (5m) Power Cable
• (1) Manual
• (1) Warranty Card

  What type of speaker is the DiaMon 112?
A: It is a 2-way coaxial mid-high loudspeaker designed for clarity and projection, not deep bass.

  Is the DiaMon 112 available in white?
A: Yes, it comes in an Enamel White finish, mainly for installations, weddings, and premium venues.

  Does it have built-in amplification?
A:

• Passive version (112) - Requires external amplifier
• MK3 version - Built-in 1200W Class D amplifier

  What is the power output of the active version?
A: The MK3 powered version delivers 1200W total power (800W LF + 400W HF) for strong headroom.

  What is the maximum SPL?
A: Up to ~126 dB peak SPL, making it very powerful for its compact size.

<
