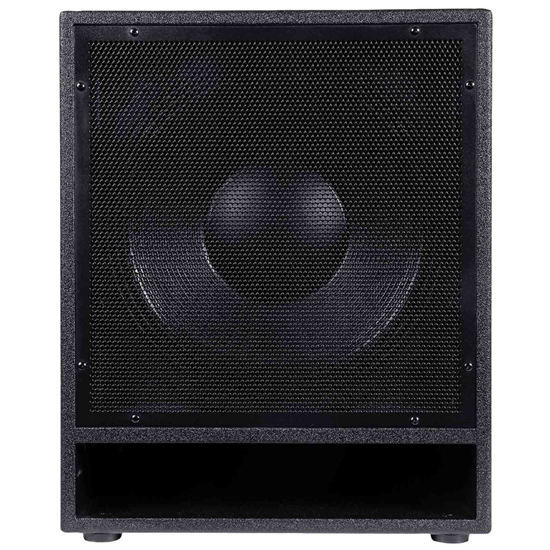

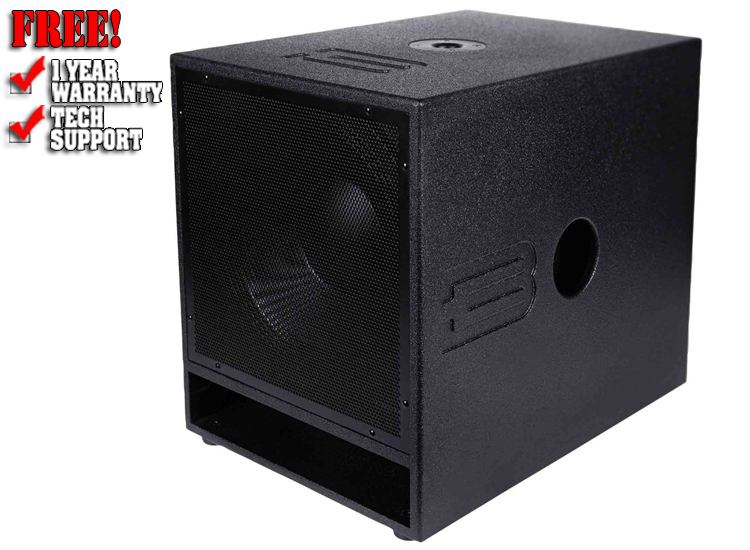

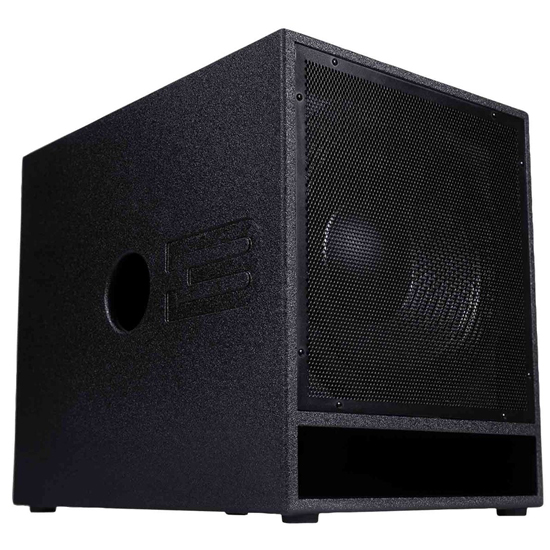

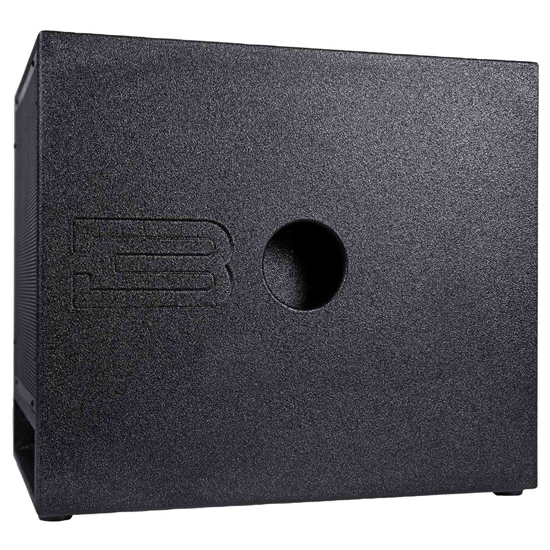

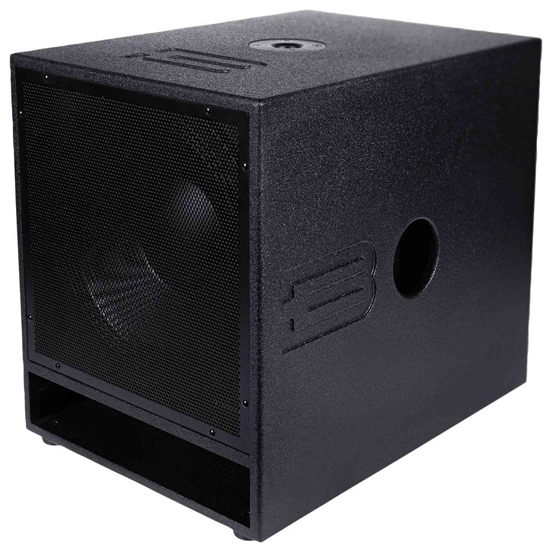

BASSBOSS BB15-MK3 Single 15" Powered Active Subwoofer

BASSBOSS continues to push the envelope of design for mobile-optimized subwoofers. The BB15-MK3 subwoofer's compact size and excellent output-to-price ratio was designed for gigging DJs, home studio bass-heads, or venue owners with limited space. A powerful, easily portable system that delivers superior sound quality, the BB15-MK3 offers remarkably deep bass for its size. Plug-and-Play ease of use is facilitated by an integrated DSP while a 2500 watt amplifier and a 4.5" coil Neo woofer make the compact, lightweight design extremely effective. Although only 21" x 17" x 24" and 71lbs, its output SPL and low frequency extension capabilities exceed many much bigger boxes.

For DJs and venues seeking high levels in tight spaces, the BB15-MK3 is the smallest, lightest and most effective solution available. Perfectly capable of providing high SPL starting from 40Hz, there's barely any event this little box can't do. When you want the biggest output from the smallest sub, the BB15-MK3 is what you want. The BB15-MK3 is a single 15-inch direct-radiating subwoofer. Featuring a long excursion, 15-inch woofer loaded into a vented enclosure that is tuned to optimize low frequency output using a large port. The amplifier is loaded at the interior port end to utilize the air flow at high output for additional cooling. The BB15-MK3 features a 2500W amplifier with an auto-sensing, globally compatible power supply that can run on mains supplies anywhere between 90 and 250 Volts. Full output power is available on anything over 110V. The amplifier's high peak-output voltage provides for intense high SPL hits while its sustained output is unparalleled in its ability to deliver the liquid lows. The amplifier is passively cooled via its external heat-sink and by woofergenerated air-flow through the port. When necessary, two blower-fans will engage to provide additional forced-air cooling capacity in more extreme conditions.

Features:

• BB15-MK3 Single 15" Powered Sub.
• Put all the big-box power and technology into a little box and it will deliver on par with those bigger boxes.
• Instead of 30Hz, you get 35Hz.
• On the other hand, insted of 110 lbs, you get 70 lbs.
• Solid, braced, Birch cabinet.
• 4.5" voice coil Neodymium motor woofer.
• A 2500 Watt amplifier.
• Premium grade DSP with proprietary processing and easy plug-and-play presets.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: Single 15" Self-Powered Vented Direct-Radiating Subwoofer
• Frequency Response (±3 dB): 40-115Hz
• Maximum Sustained Output: 127dB
• Max SPL (Peak)*: 130 dB
• Nominal Dispersion (H° x V°): 360 x 360 – Cardioid Mode Available with Multiple Boxes
• Amplification: 2500 Watts Class D
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 4.6 Amps (Nominal)
• Current Draw 240V: 2.3 Amps (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: CNC machined 15mm multi-ply Birch laminate with extensive bracing and dado joinery.
• Transducer Low Frequency: 1 x 15 in. diameter (380mm) Neodymium motor woofer with 4.5 in. (115mm) voice coil
• Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 16 T-nuts and bolts for mounting optional casters.
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 20.5 in (521mm) x 17 in (430mm) x 24 in (610mm) (21.25 in. high with feet)
• Net Weight: 70 lbs
• Shipping Weight: 83 lbs
• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
• Optional Covers: Heavy-duty padded nylon transport cover for 1 cabinet
• Optional Dollies: Set of 4 Casters to bolt directly onto the back of the cabinet.
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS BB15-MK3 Single 15" Powered Active Subwoofer
• (1) 15' (5m) Power Cable
• (1) Manual
• (1) Warranty Card

  What is the BB15-MK3?
A: The BB15-MK3 is a single 15-inch powered (active) subwoofer with built-in amplification and DSP, designed for portable professional audio systems.

  Is it an active subwoofer?
A: Yes. It features a 2500W Class-D amplifier, so no external amplifier is required.

  Who is it best suited for?
A:

• Mobile DJs
• Wedding/event setups
• Small venues and bars
• Compact PA systems

  What is the frequency response?
A: Approx 40 Hz – 100 Hz

  Can it be remotely controlled?
A: Yes, via ControlBASS software:

• Load presets
• Adjust system tuning
• Monitor performance

<
