Avante Audio Achromic AS8 Active Column PA System

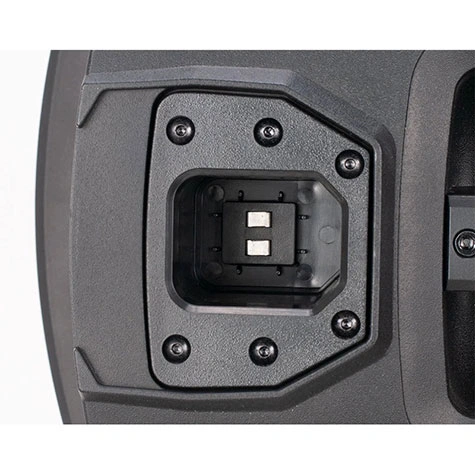

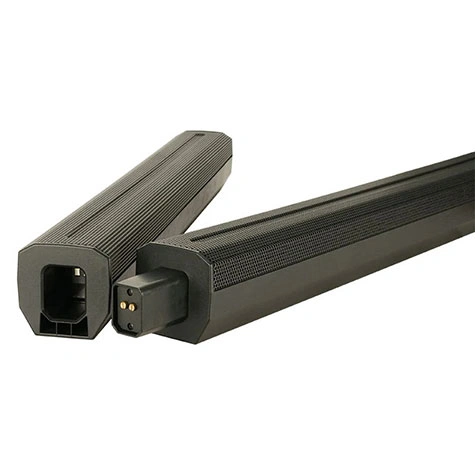

The fully-featured and easy to setup AS8 active column system comprises an active 8-inch neodymium subwoofer enclosure alongside two column units. One is loaded with six precision-aligned 2.75" neodymiumdrivers while the other serves as a spacer to lift the speaker column up to optimal height. Both feature Avante's new SAM (Secure Array Mount) system which allows the columns to lock securely to the sub and to one another without risk of being toppled over. The SAM connection also passes the audio signal from the sub up to the columns, removing the need for speaker cables. Featuring a Class D power amplifier with built-in limiter that delivers 1000W of power, the sub unit also integrates a flexible 4-input mixer with 2-band EQ. This allows direct connection of line-level audio sources as well as microphones and even a guitar, making the system ideal for acoustic solo performers, duos and even small bands. The unit is also equipped with a BLUETOOTH® audio connection that allows wireless streaming of music from a smartphone, tablet or laptop. The lightweight system can be easily transported in a small car and is supplied with a padded bag for carrying and protecting the column units. This makes it the perfect system for DJs as well as live musicians playing in small venues such as coffee houses and lounges.

Specifications

SYSTEM INCLUDES:

• (1) 8-inch neodymium Subwoofer
• (1) Column with six 2.75-inch neodymium Speakers
• (1) Spacer

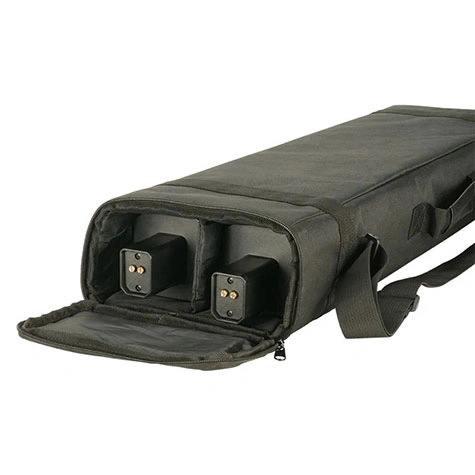

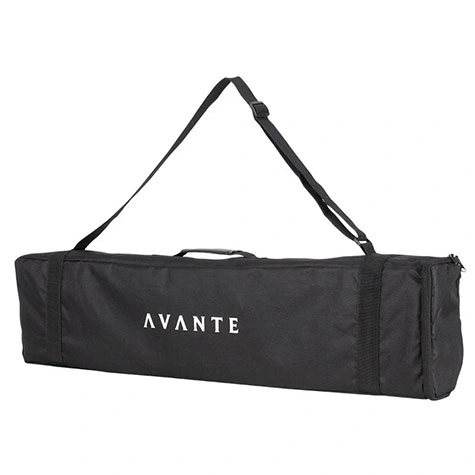

• (1) Carry bag for columns

AMPLIFIER:

• Inputs: Two XLR/TRS combo jacks, Stereo 1/4" inputs, Stereo 1/8" input, Bluetooth®
• Outputs: XLR balanced line output
• Power output: RMS 250W (SUB) RMS, 1000W peak
• Volume: Input Gain control per channel
• EQ: Main out 2 band EQ
• LEDs: Power/Clip indicator
• Power Input: 100-240V~50/60Hz switchable 250W
• Amplifier: Class D amplifier with switching power design

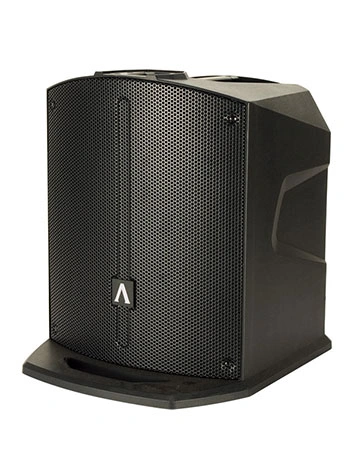

ACTIVE VENTED SUBWOOFER:

• Frequency Response: 55-200Hz
• Max Output SPL: 116dB (at max. amp output)
• Impedance: 4 Ohm
• Driver: 8-inch neodymium subwoofer, 1.5" voice coil, 28 oz. magnet
• Cabinet: PP plastic
• Grill: 1.0mm steel
• Dimensions: 13.8"x16.9"x79.1" / 350x430x2010mm
• Weight: 35 lbs. / 15.8 kg.

PASSIVE FULL-RANGE SPEAKER COLUMN:

• Frequency Response: 180-20kHz
• Max. output SPL: 110dB
• Impedance: 4 Ohm
• Driver: 6x 2.75-inch neodymium drivers
• Cabinet: PP plastic
• Grill: 1.0mm steel
• Dimensions: 3.8"x3.8"x34.3" / 96x96x870mm (each column)
• Weight: 11 lbs. / 5 kg. (each column)

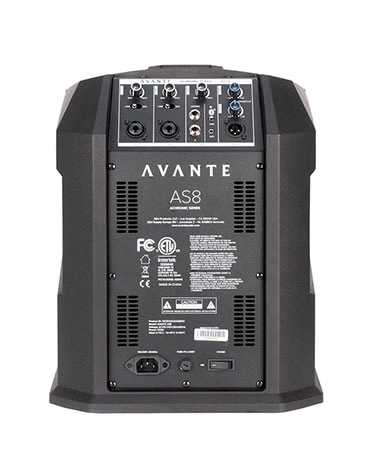

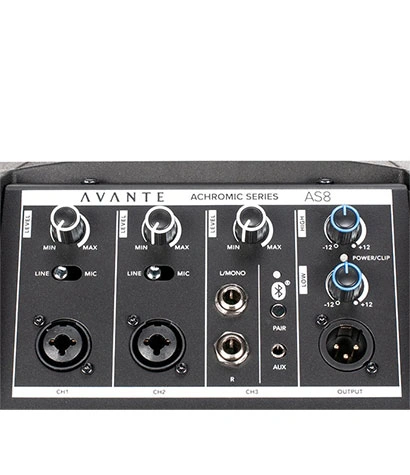

REAR PANEL:

• 4 input mixer with line out
• Two (2) Mic/Line Input (XLR/TRS Combo)
• Two (2) Guitar/Line Input (1/4" Stereo)
• 1/8" stereo Aux Input
• Line Output (XLR)
• Dual Band EQ
• BLUETOOTH® Connection

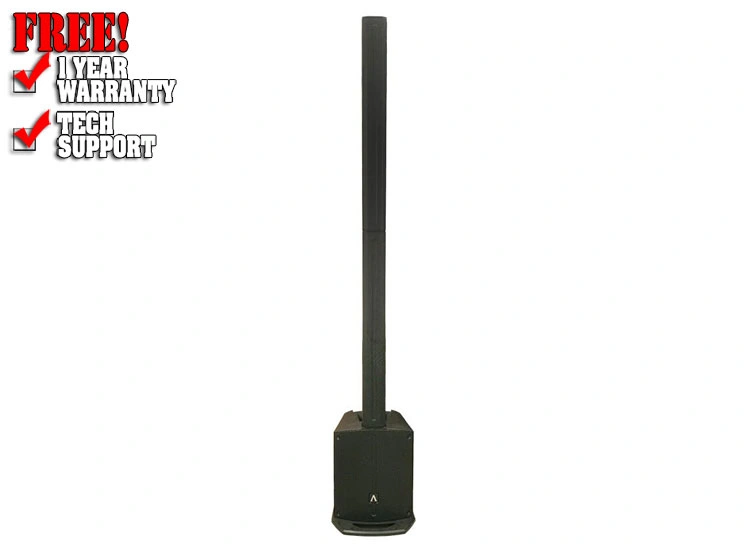

EXTENDED POSITION:

• Dimensions: 13.8"x16.9"x79.1" / 350x430x2010mm
• Weight: 35 lbs. / 15.8 kg.

COMPACT POSITION:

• Dimensions: 13.8"x16.9"x47.6" / 350x430x1210mm
• Weight: 30 lbs. / 13.6 kg.
